WARNING:
To prevent accidental starting that could cause serious
personal injury, always disconnect the engine spark plug
wire from the spark plug when assembling parts.
POSITIONING THE HANDLEBAR
See Figure 2.
n Loosen the two handlebar knobs.
n Unfold the handlebar into operating position.
NOTE: Do not use force. If there is binding, continue to
loosen the knobs. Do not allow throttle cable to become
pinched when raising the handlebar.
n Retighten the handlebar knobs.
UNPACKING
This product requires assembly.
n Carefully remove the tool and any accessories from the
box. Make sure that all items listed in the packing list are
included.
n Inspect the tool carefully to make sure no breakage or
damage occurred during shipping.
n Do not discard the packing material until you have care-
fully inspected and satisfactorily operated the tool.
n If any parts are damaged or missing, please call
1-800-860-4050 for assistance.
PACKING LIST
Cultivator
Drag Bar
Pull Pin
Hitch Pins (2)
Felt Washers (2)
Inner Tines (2)
Outer Tines (2)
Ryobi Exact Mix 2-Cycle Oil
Wheel Assembly (Accessory)
Operator’s Manual
Warranty Registration Card
WARNING:
If any parts are missing do not operate this tool until the
missing parts are replaced. Failure to heed this warning
could result in possible serious personal injury.
WARNING:
Do not attempt to modify this tool or create accesso-
ries not recommended for use with this tool. Any such
alteration or modification is misuse and could result in a
hazardous condition leading to possible serious personal
injury.
ASSEMBLY

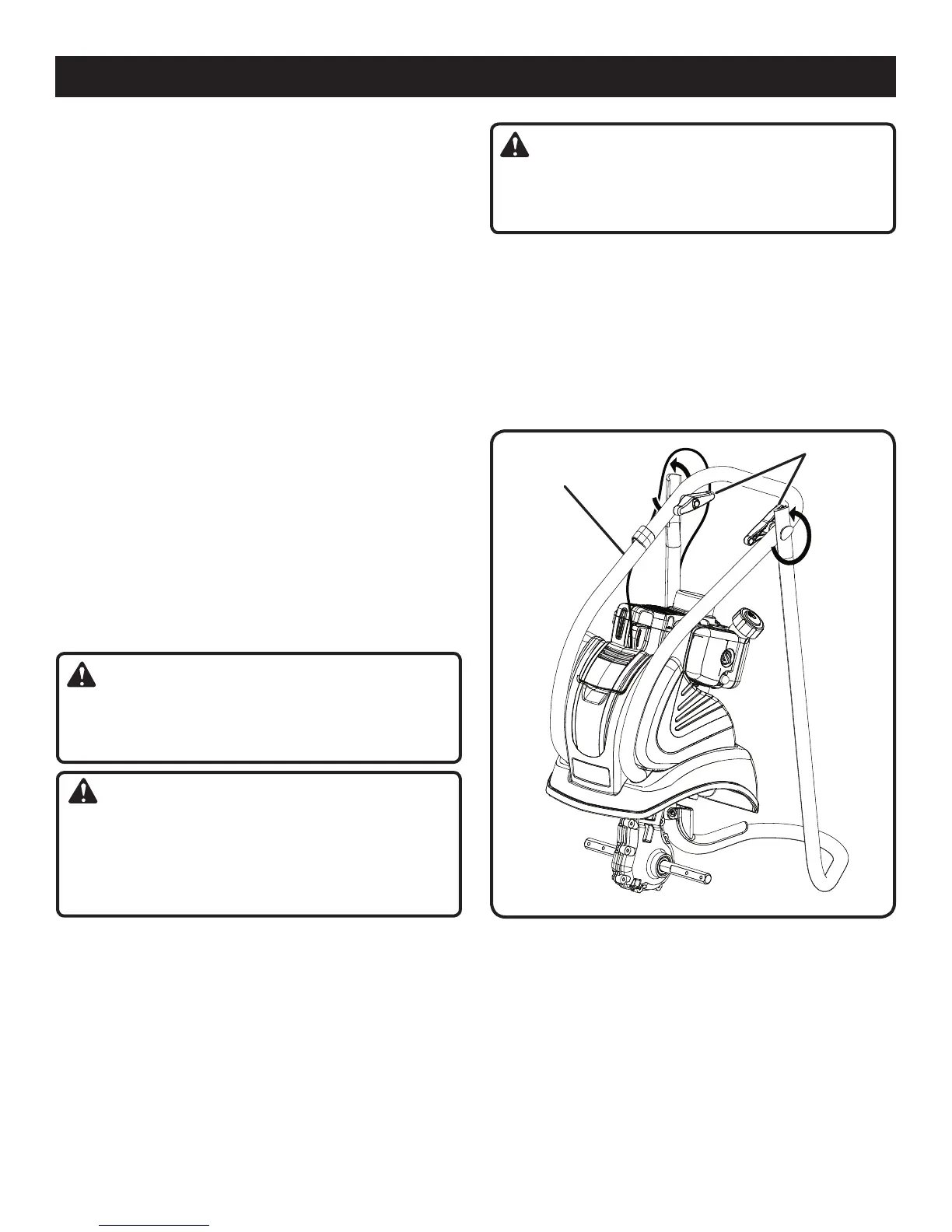

Fig. 2
HANDLEBAR
HANDLEBAR
KNOBS
