Ryobi RYRM8001 Assembly Guide

6 — English
Fig. 2
Fig. 1
WARNING:
Strictly adhere to all torque wrench tightening specifica-
tions. Failure to do so could cause serious personal injury.
WARNING:
Do not attempt to modify this product or create acces-
sories not recommended for use with this product. Any
such alteration or modification is misuse and could result
in a hazardous condition leading to possible serious
personal injury.
WARNING:
To prevent accidental starting that could cause serious
personal injury, always remove the start key from the tool
when you are assembling parts.

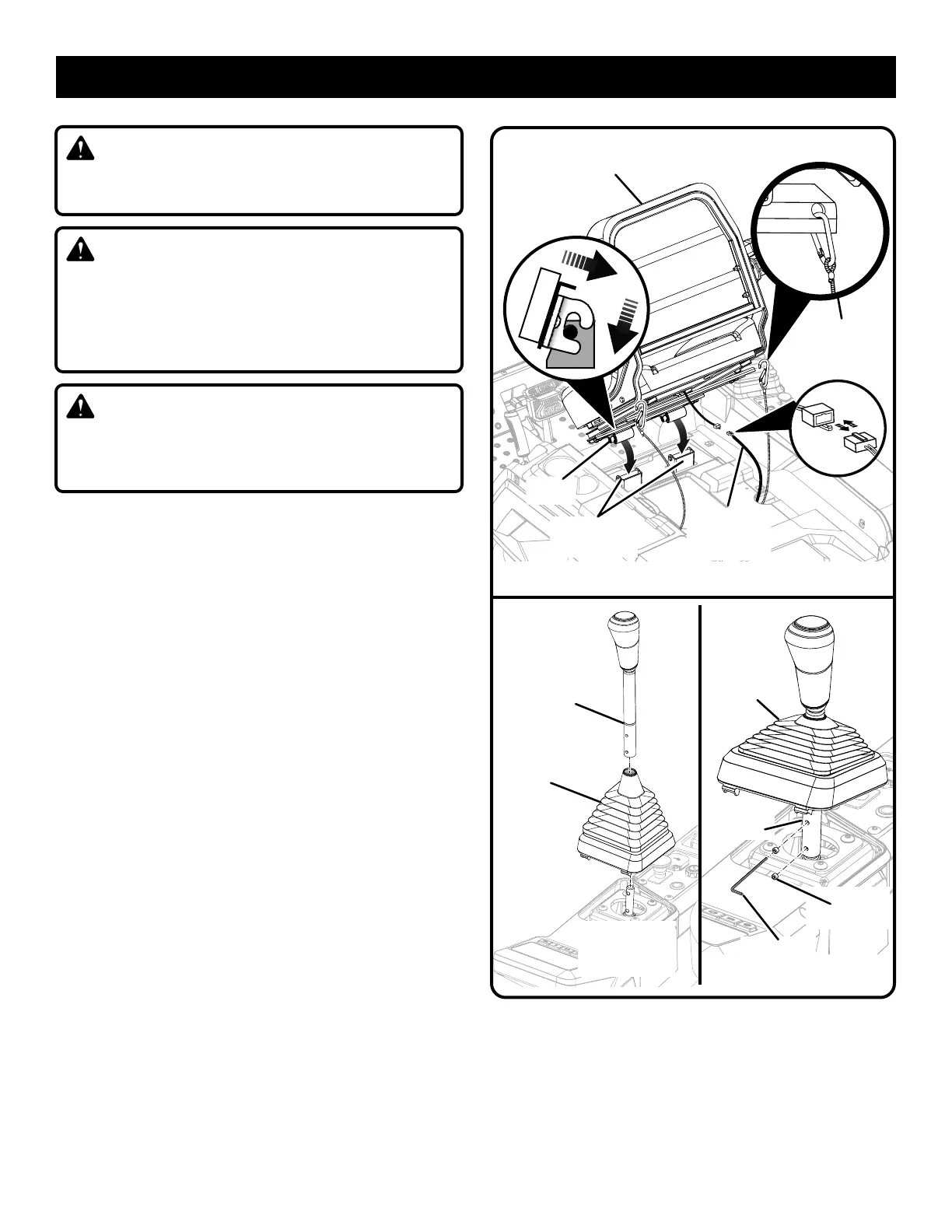

INSTALL THE SEAT
See Figure 1.
 Place the seat assembly over the mounting brackets and
align as shown.
 Lower the seat clip so it is secured onto the mounting
bracket.
 Attach the seat safety interlock cable to the plug on the
mower.
 Attach the carabiner clips as shown.
 Lower the seat.
INSTALL THE JOYSTICK
See Figure 2.
Insert the joystick through the dust cover as shown.
Align the holes on the joystick to the holes on the mount-
ing shaft.
Insert the hex screws and tighten securely with the in-
cluded hex key.
Align the tabs on the dust cover with the base and press
down to lock the dust cover into place.
ASSEMBLY
SAFETY
INTERLOCK
CABLE
SEAT
ASSEMBLY
MOUNTING
BRACKET
CLIP
PLUG
1
2
JOYSTICK
MOUNTING
SHAFT
JOYSTICK
SHAFT
JOYSTICK
SHAFT
BOOT
BOOT
HEX KEY
HEX
SET SCREW
CARABINER
CLIP
