Description
Your CTX MDB Tester PRO comes with a "V" MDB harness. This is
the only thing you need to make your tester functioning as it takes its
power from the MDB connector in the machine. If you are using your
tester in a workshop where machines are not always available, a power
supply is required. This power supply is available directly from SEM
(Part number A06205) if you don’t already have it.
A protective film covers the display and membrane. Remove it. When
looking at the back of the tester, you will see the following things:

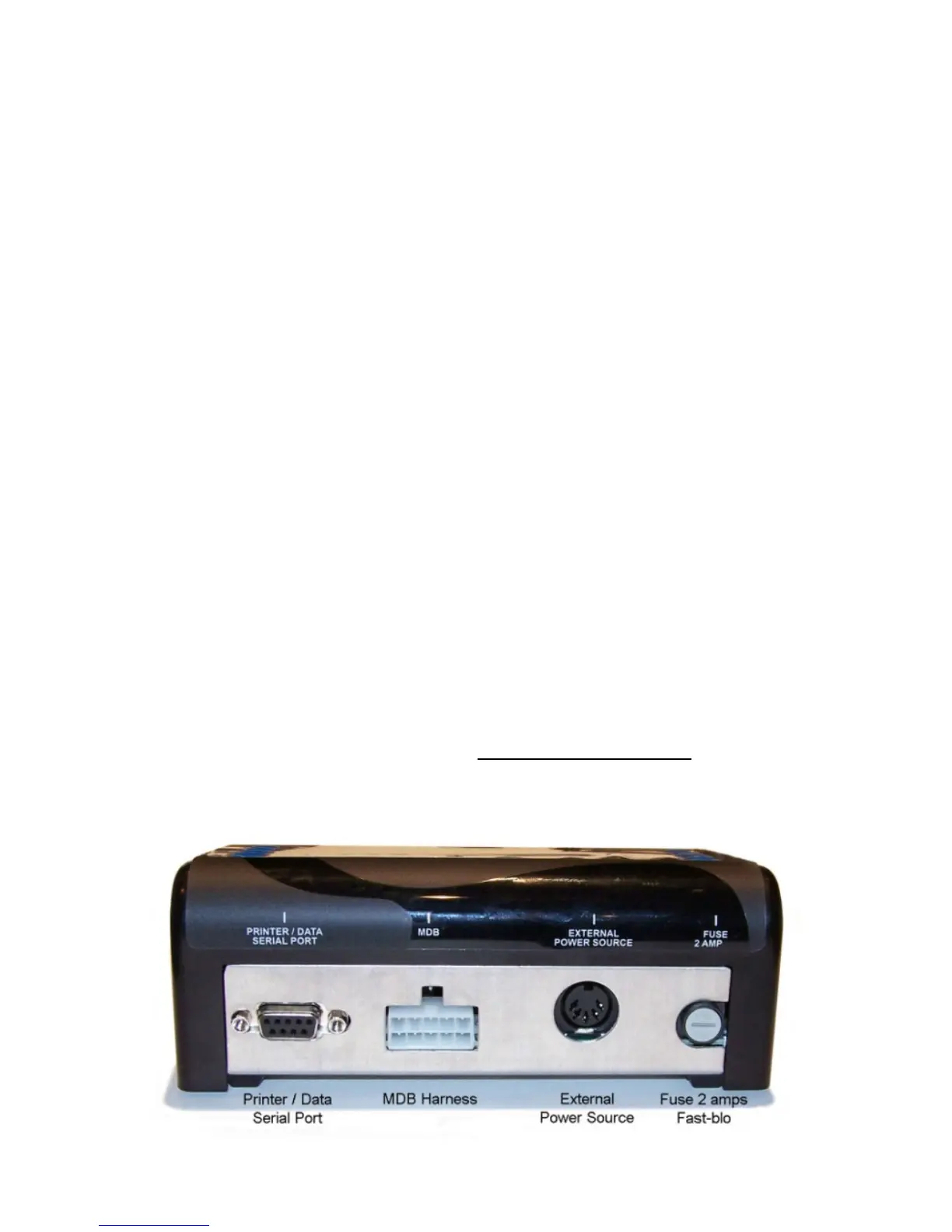

Printer / Date serial port Sends a report to a printer or Window's
Hyperterminal. Also used to upload a
new firmware in the tester.
MDB This is where you will connect the "V"
MDB harness. One branch of the V
goes to the machine for capturing
power, the other to the MDB device to
be tested.
External power source You are working in the workshop and
you need power? This is where you
will connect the power supply A06205.
Fuse 2 amps Inside this compartment is the main
fuse. If it needs to be replaced, only
use 2 amps, fast-blo type. Any other
may cause damages to your tester.
