INSTALLATION MANUAL T7 DIVING SYSTEM™
11
srsmith.com
NOTES:
* Part #T7-NBASE comes WITH jig.
The T7 diving board, base, and springs must be used together and cannot be used separately in any other configuration.
ITEM # COMPONENT DESCRIPTION
T7-NBK
T7-102-SS
T7-NSPW
KITS – QTY. COUNTS
1 T7-NBASE-(color code) NO STEP T7 BASE 1
2 T7-DB-(color code) 7’ T7 DIVING BOARD 1
3 T7-NJIG 3 BOLT T7 NO STEP BASE JIG 1
4 T7-NSPRING-(color) T7 NBASE SPRINGS (pair) 1
5 SPRING PAD (factory installed) T7 NSPRING PAD 2
6 BOARD FALL (-L) OPTIONAL WATERFALL FEATURE 1
7 H-1/2 SPA HOSE 1/2” PVC FLEX SPA HOSE GRAY 1
8 H-1/2 NYLON WAS 1/2” FLAT NYLON WASHER 3
9 H-SS 1/2 F WAS 1/2” SS FLAT WASHER 3
10 H-SS 1/2 LOC WA 1/2” SS LOCK WASHER 3
11 H-SS 1/2 H NUT 1/2” SS HEX NUT 3
12 H-1-1/2 WHT CAP .750 X 1-1/2 WHITE UV NUT CAP 3
13 H-SS 3/8 FLT WA 3/8” SS FLAT WASHER 8 6
14 H-SS 3/8 LOC WA 3/8” SS LOCK WASHER 8 6
15 H-SS 3/8 F NUT 3/8” SS FINISH HEX NUT 8
16 H-.562 X .390 CAP .553 X 1/2” GRAY PROTECTIVE CAP 8
17 T7-NSPW STUD PLATE 2
18 H-SS #8 X 3/4 SS 8 X 3/4” PAN HEAD PHILLIPS SCREW 4
19 H-SS 3/8 NYLON 3/8” NYLON INSERT LOCK NUT 6
20* H-ANTI-SEIZE PACKET OF ANTI SEIZE LUBRICANT (NOT SHOWN) 1 1
* not pictured

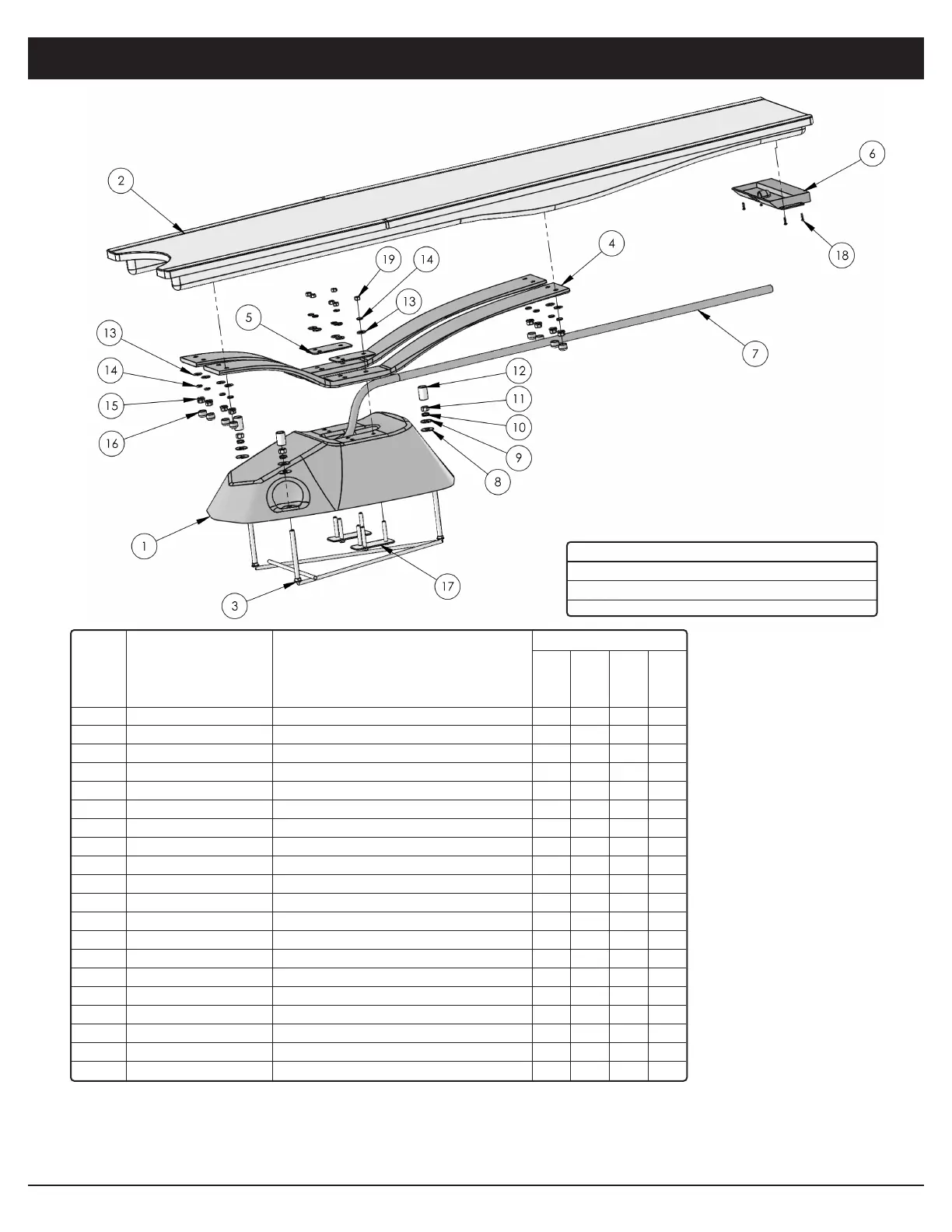

DRAWING REPRESENTS THE FOLLOWING PART NUMBERS:
T7 DB
T7-NSPRING
T7-NBASE
T-7
T7-NBK:
Base to Jig Mounting Hardware
T7-102-SS:
Board to Springs Mounting
Hardware
T7-NSPW:
Spring to Base Mounting
Hardware
T7 DIVING SYSTEM (T7 DB, T7-NBASE, T7-NSPRING):
