S.R.Smith T7 - Minimum Diving Water Envelope

INSTALLATION MANUAL T7 DIVING SYSTEM™
5
srsmith.com

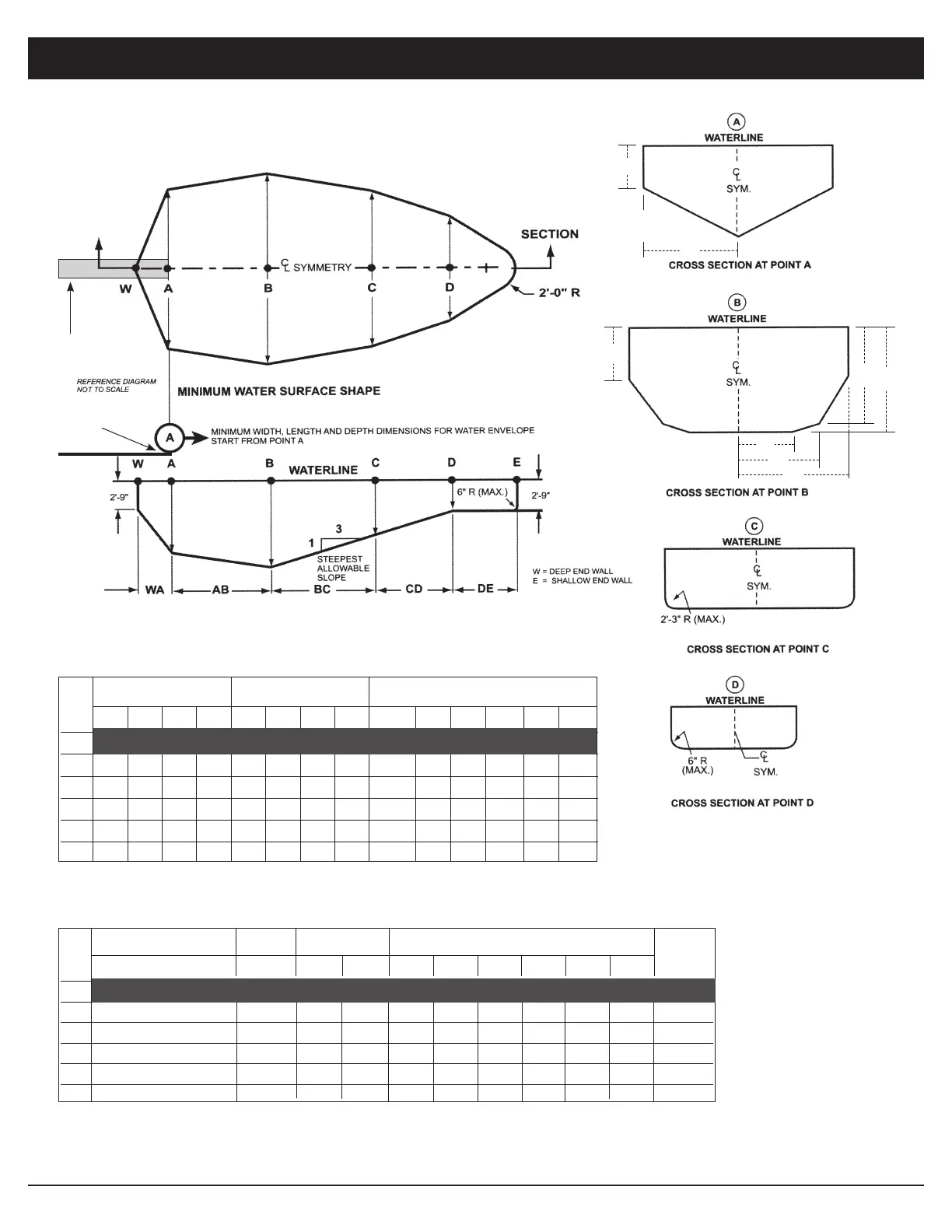

MINIMUM DIVING WATER ENVELOPE:
NOTE: DRAWINGS ARE NOT TO SCALE.
A B C D A B C D WA AB BC CD* DE WE
0
I 6’-0” 7’-6” 5’-0” 2’-9” 10’-0” 12’-0” 10’-0” 8’-0” 1’-6” 7’-0” 7’-6” VARIES 6’-0” 28’-9”
II 6’-0” 7’-6” 5’-0” 2’-9” 12’-0” 15’-0” 12’-0” 8’-0” 1’-6” 7’-0” 7’-6” VARIES 6’-0” 28’-9”
III 6’-10” 8’-0” 5’-0” 2’-9” 12’-0” 15’-0” 12’-0” 8’-0” 2’-0” 7’-6” 9’-0” VARIES 6’-0” 31’-3”
IV 7’-8” 8’-6” 5’-0” 2’-9” 15’-0” 18’-0” 15’-0” 9’-0” 2’-6” 8’-0” 10’-6” VARIES 6’-0” 33’-9”
V 8’-6” 9’-0” 5’-0” 2’-9” 15’-0” 18’-0” 15’-0” 9’-0” 3’-0” 9’-0” 12’-0” VARIES 6’-0” 36’-9”
POOL
TYPE
MINIMUM DEPTHS
AT POINT
MINIMUM WIDTHS
AT POINT
MINIMUM LENGTHS
BETWEEN POINTS
TABLE 1 - MINIMUM WATER ENVELOPE (ANSI/APSP/ICC-5 2011)
DIVING BOARD LENGTH HOW
**
F G H J K L M N
0
I 6’ DB / 6’ JB / 7’ T7 20” 2’-9” 5’-0” 4’-0” 7’-2.5” 7’-6” 6’-0” 3’-9” 2’-1.5” 12’
II 8’ DB / 6’ JB / 7’ T7 20” 2’-9” 3’-10” 4’-2” 7’-2.5” 7’-6” 6’-8” 3’-9” 2’-1.5” 12’
III 10’ DB / 8’ JB / 7’ T7 26” 2’-9” 4’-4.75” 4’-4.5” 7’-5.5” 8’-0” 6’-7” 3’-11.5” 1’-7.5” 13’
IV 10’ DB / 8’ JB / 7’ T7 30” 2’-9” 5’-10.5” 3’-10” 7’-8” 8’-6” 8’-3” 5’-7” 2’-7” 13’
V 12’ DB / 8’ JB / 7’ T7 40” 2’-9” 6’-2” 3’-11.5” 7’-9.5” 9’-0” 8’-2.5” 5’-9” 2’-7” 14’
POOL
TYPE
MAX. DIVING BOARD LENGTH
MAX. HEIGHT
OVER WATER
AT POINT A
CROSS SECTIONAL
DIMENSIONS AT
POINT A
CROSS SECTIONAL DIMENSIONS AT POINT B
TABLE 2 - S.R.SMITH RESIDENTIAL POOL MINIMUM SPECIFICATIONS
MIN. HEAD
ROOM ABOVE
DIVING
SURFACES
*Min. length between points CD may vary based upon water depth at point D and the slope between points C & D
ABBREVIATIONS: DB=Diving Board; JB=Jump Board; **HOW=Height Over Water
F
G
H
J
K
N
M
L
DIVING EQUIPMENT
TIP OF BOARD
ABOVE POINT A
DIVING EQUIPMENT
DIVING EQUIPMENT PROHIBITED
DIVING EQUIPMENT PROHIBITED
