R5 SUPREME - Navigation System
CONFIGURATION
7000 118-301, A3 Page 41

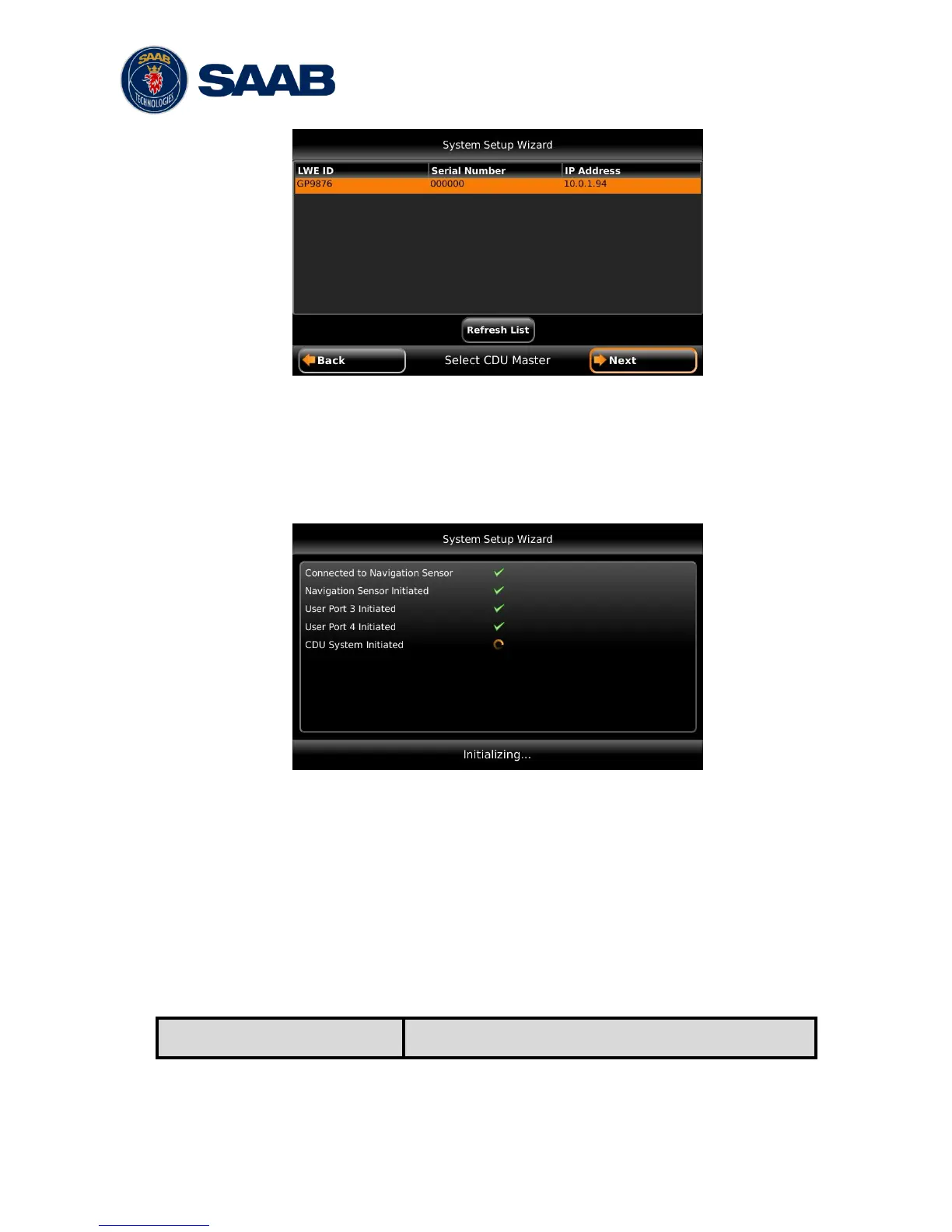

Figure 13 – Select CDU Master
4.1.5 Connection View
This view is shown while the R5 SUPREME CDU connects to external equipment and
initializes the system. When the initialization is complete the R5 SUPREME CDU will
automatically switch to the Position view when configured as a Navigation System.
Figure 14 – Connection View
4.2 Configuration Parameters
The following sections lists and describes all the parameters that can be configured in the
R5 SUPREME Navigation System. All the configuration sub menus can be found under
Main Menu Maintenance Configuration.
4.2.1 Navigation
The Navigation Configuration view is accessed by pressing Main Menu
Maintenance Configuration Navigation
