• A dummy guide must be used as often as possible for reducing the distance
between cutter and guides: a sample is supplied together with the machine.

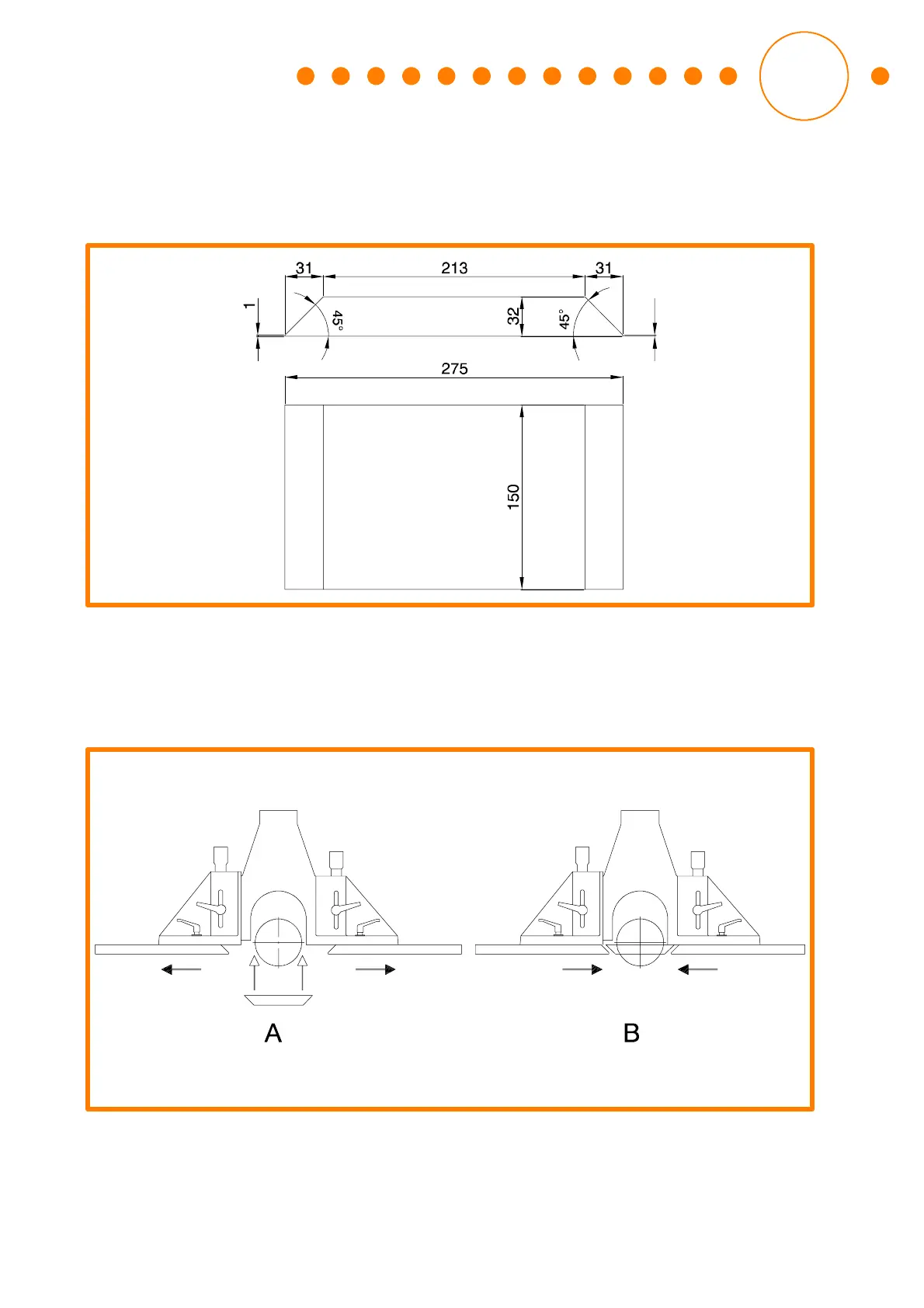

Fig. 21 gives the dimensions of a dummy guide, a sample of which is supplied
together with the machine.
1
Fig. 21: Dummy guide.
• Fig. 22 gives the instructions for a correct installation: position A open the two
guides and approach the dummy guide to the spindle, position B when the
dummy guide lays on the rear guard, close the two guides on the dummy guide
and lock their position.
Fig. 22: Dummy guide installation
• Always use a pusher, Fig. 23, at the passage end against the guide to reduce
the risks for the operator.
