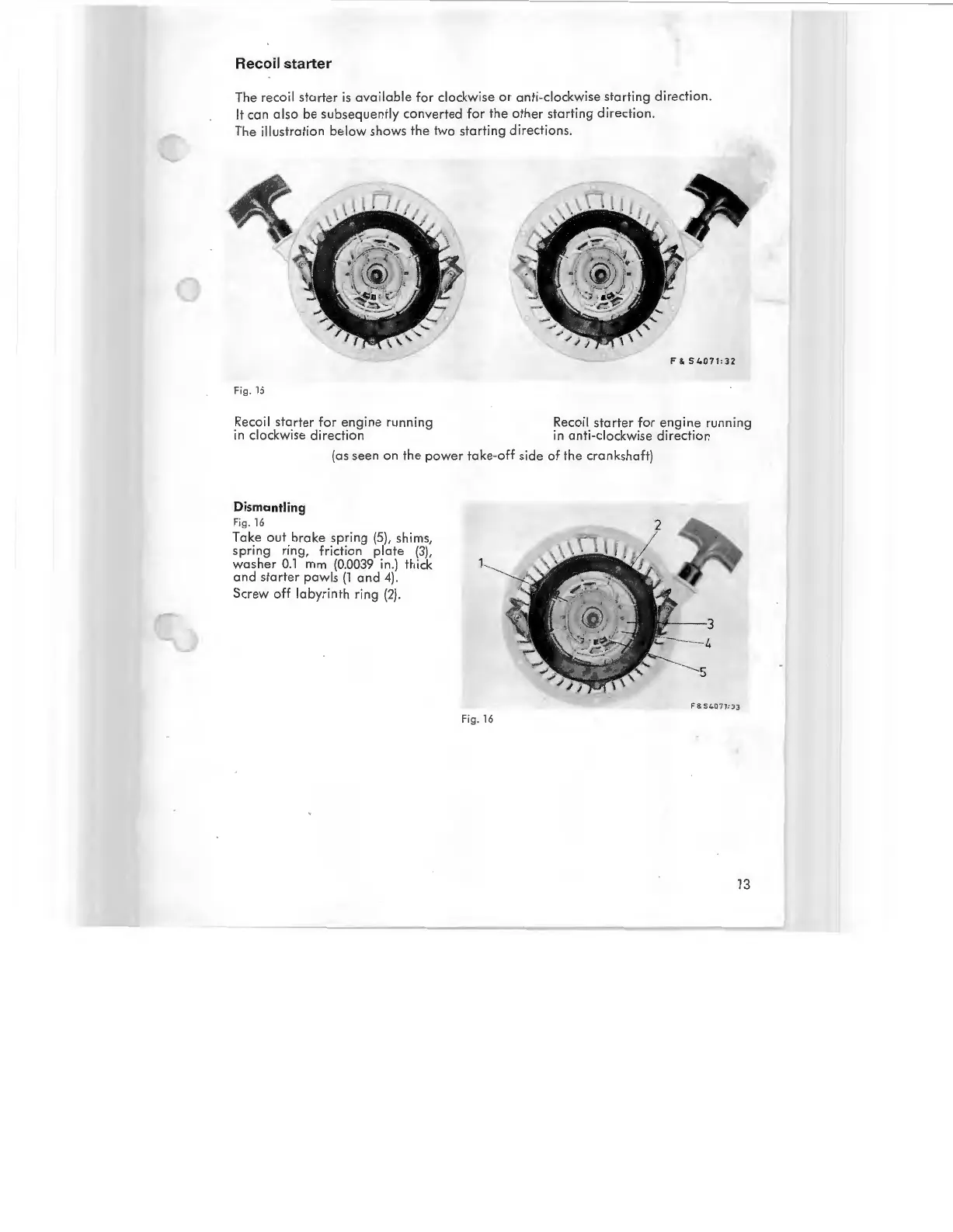

Recoil starte r
The recoi l starter is ava i lab le for cl ockw i se or a nt i-c lockwise starting direction.
It c an also be subseq uently converted for the other star ting direction.
The illust ration bel ow shows the two starti ng directions.
Fi g. 15
Recoil s tarter for engine running
in clockwise direction
Recoil starter for eng i ne ru nning
in anti-c l ockwi se direct i on
(as seen on the power take-off side of the crankshaft)
Dismantling
Fi g. 16
Take out brake spring (5), shims,
spring ring , friction plat e (3),
wa s her 0.1 mm (0.0039 in.) th i ck
and star t er paw ls (1 and 4).
S
crew off labyri nth ring (2) .
Fi g. 16
