Sachs SA 340 - Page 16

F &$4071:34
Fig. 18
4
F & Sl.071:36
Fig. 19
14

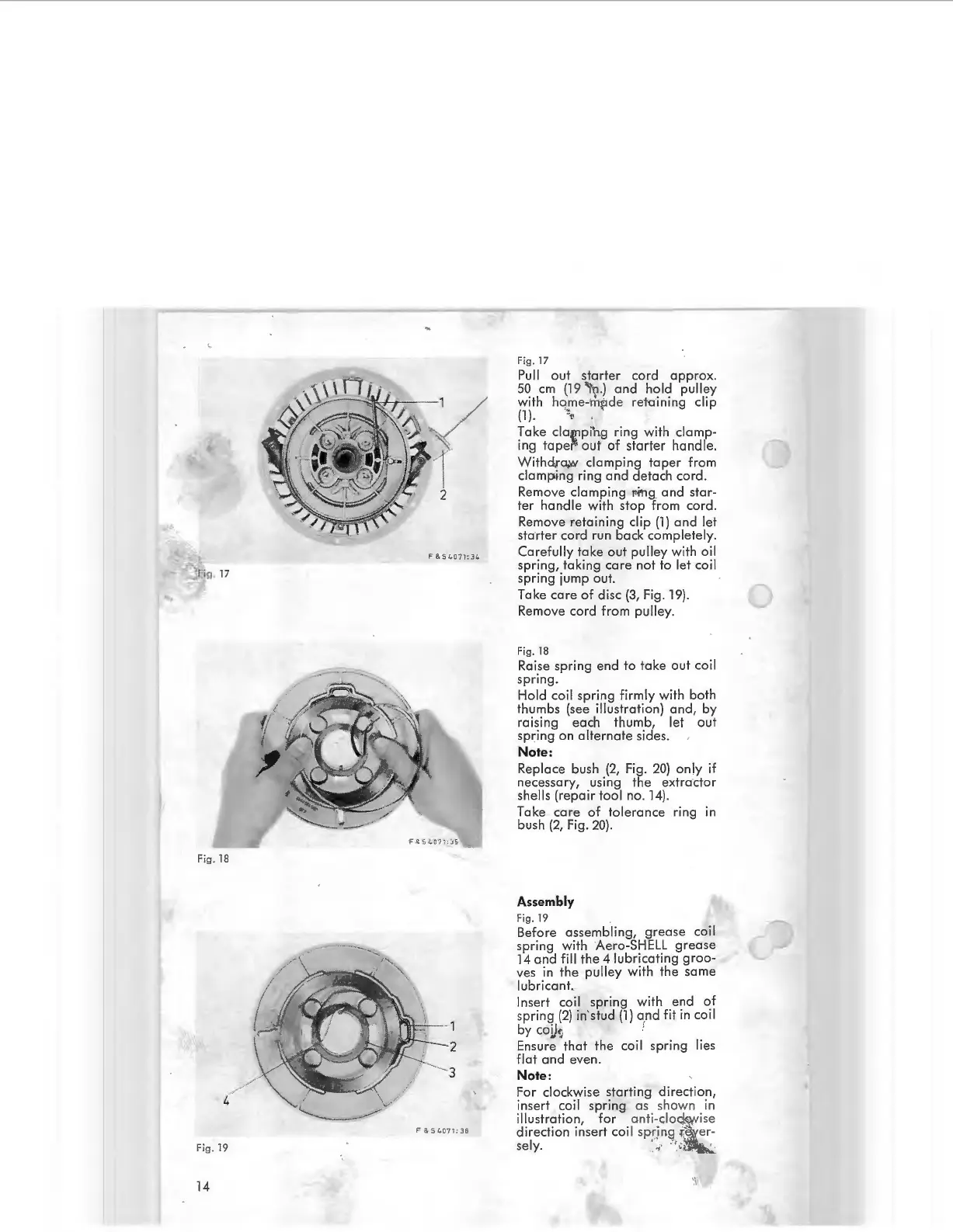

Fi g. 17
Pull out starter cord approx.
50 em (19 in.) and hold pulley
with home-made retaining clip
(1 ). '!. '
T ake clamping ring with clamp-
ing taper out of starter handle.
Withdraw clamping taper from
clamping ring and detach cord.
Remove clamping ring and star-
ter hand le with stop from cord.
Remove re taining clip (1) and let
sta· rter cord run back completely.
Carefully take out pull ey with oil
spring, taking car e n ot to l et coil
spring jump out.
Take care of disc (3, Fig. 19).
Remove
cord from pulley.
Fi g. 18
Rai.se spri ng end to take out coil
spn ng.
Hold coil spring firmly with both
thumbs (s ee illustration) and , by
raising each thumb , let out
spring on alternate sides.
Note :
R eplace bu sh (2, Fig. 20) only if
necessary, us ing the extractor
she ll s (repa ir tool no. 14).
Take car e of tol era nce rin g in
bush
(2, Fig. 2 0) .
Assembly
Fig. 19
Bef ore asse mblin g, grease coil
s pring with A e ro - SH E LL grease
14
and fi ll the 41ubricating groo-
ves in the pulley with the sa me
lubr icant.
Insert
coil spr ing with end of
s prin g (2) in stud (1) and fit in co il
by coil.
Ens ur e that the co il spring li es
f l at and even.
Note :
F or clockwise starti ng dire ct ion,
insert coil spri ng as shown in
illustrati on, for anti -c lo ckwise
directi on in sert coil s pring r E;,y er-
se ly . • '-i ·' .~ ... -"'
