Sachs SA 340 - Page 22

rs.s t..on : 20

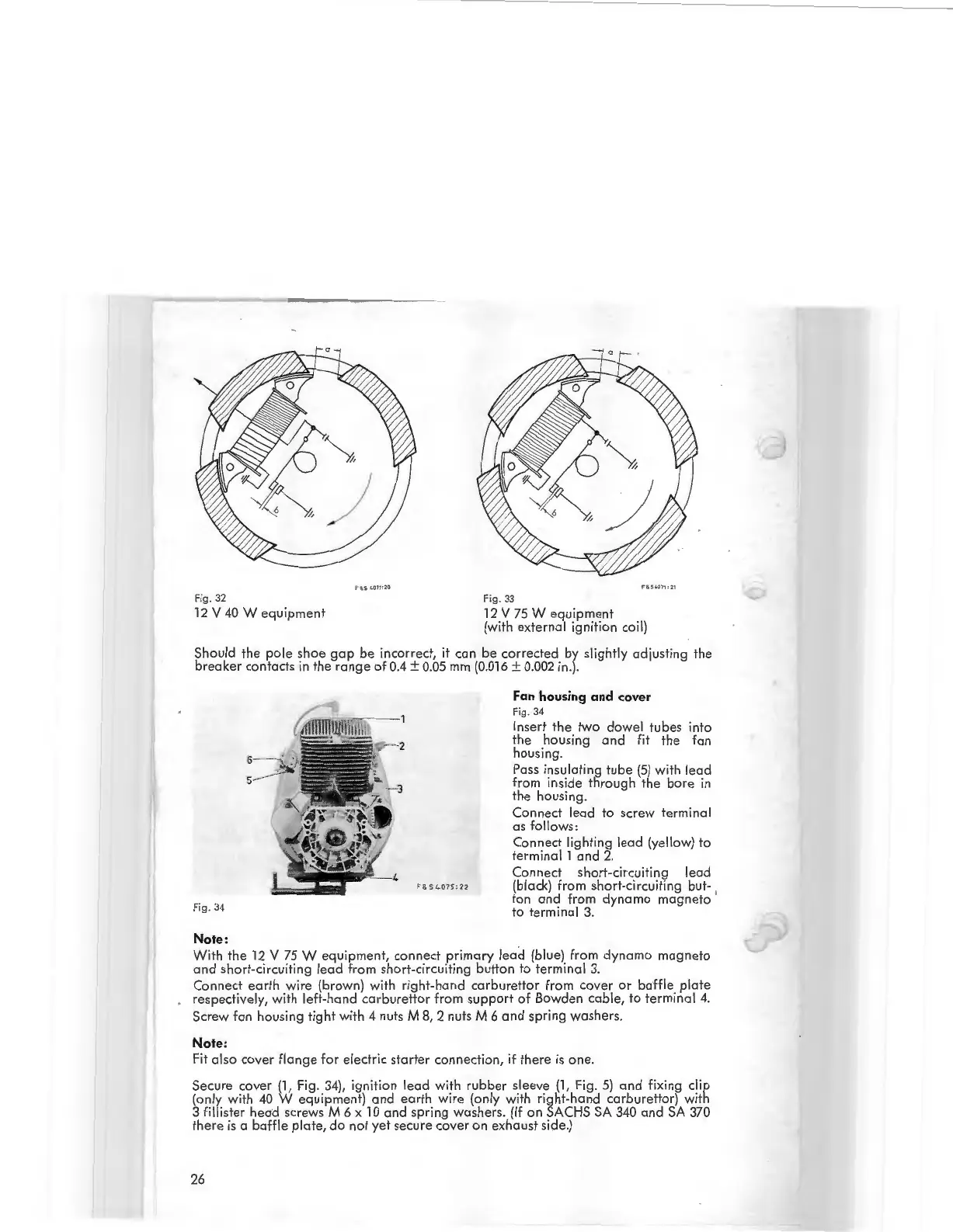

Fi g. 32
Fi g. 33
12 V 40 W equipment
12 V 75 W eq uipme nt
(with ex t erna l i gn ition coil)
Should the pol e shoe gap be incorr ect, it c an be corr ected by slightly ad ju sting the
br ea ker co nt acts in the rang e of 0.4 ± 0.05 mm (0 .016 ± 0.002 in. ).
F&SL.. 0 7S:22
Fig. 34
Note :
Fan housing and cover
Fig. 34
In sert the two dowe l tube s i nto
the housing and fit the fa n
housing .
Pass
in s ulating t ub e (5) with l ead
from insi de thro u gh the bo re in
the
hous in g.
Connect le ad to scre w t er minal
as follows:
Connect lighting l ead (yellow) to
terminal 1 a nd 2.
Connect sh ort -circuiti ng lead
(black) f rom sh ort-circu it ing but- .
ton and from dyn amo magneto '
to t er minal 3.
With t he 12 V 75 W equ ipment , conn e ct primary lead (b lu e) from dynamo magneto
and short - circuiting l ead from sh ort - circuiting bu tt on to terminal 3.
Connect eart h wire (brow n) with rig ht-hand carburettor fro m cover or baffle pl ate
respectively, with l eft- h and carbur ettor from s uppor t of Bowde n cabl e, Ia t er mina l 4.
Scr ew fan hou sing tight wit h 4 nut s M 8, 2 nut s M 6 and spri ng was h ers.
Not e :
Fit a lso cover fla n ge for e l ect ri c s tart er con ne ction, if there is o ne.
Secure co ve r (1 , Fig. 34), ignition lead with r ubbe r sl eeve (1, Fig. 5) and fixing clip
(only
with 40 W equipme nt ) and earth wire (only with right -ha nd carburettor ) with
3 fillister he
ad screws M 6 x 10 a nd spring wa sh er s. (If on SACHS SA 340 and SA 370
the re is a
baff le plate, do not yet sec ur e cover on ex haust sid e. )
26
