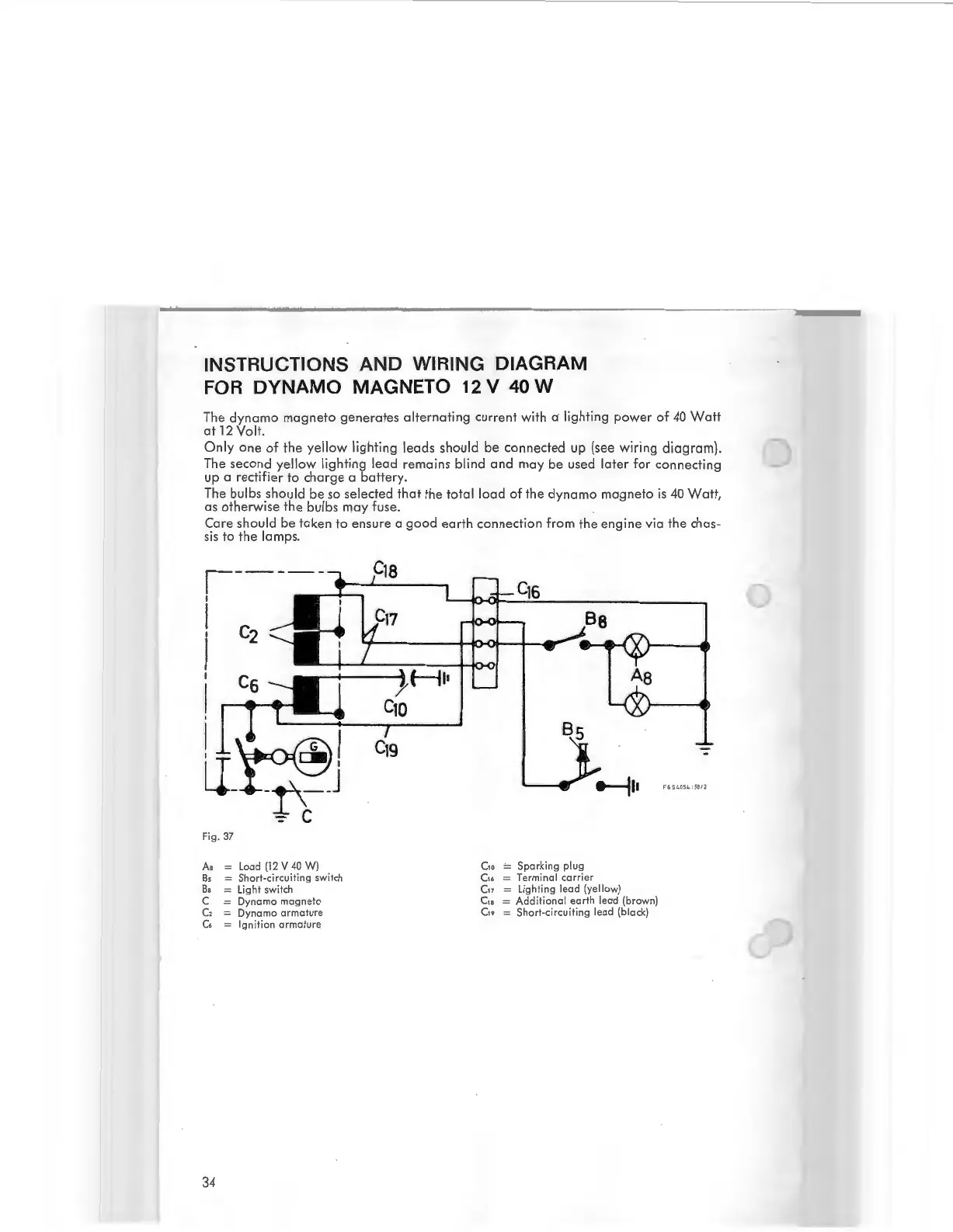

INSTRU CT IONS AND WIRING DIAGRAM
FOR
DYNAMO MAGNETO 12 V 40 W
Th e dynamo magneto ge nerate s a lt ernating current with a· lighting power of 40 Watt
at 12 Volt.
O
nl y o ne of the ye ll ow lighting l eads sho ul d be conne ct ed up (see wi ri ng diagram) .
The
second yellow li ght in g lead remains blind and may be used l ater for connect in g
up a rectif
ier to charge a battery . .
The
bulbs shou ld be so se l ected th at the tota l load of the dynamo mag n eto is 40 Watt,
as otherwise the b ul bs may f use .
Care s hould be ta ken to ensu re a good earth connection from the e ngine via t he chas-
sis to the l amps.
F ig. 37
As = load (12 V 40 W)
Bs = Short-circuiting switch
Bs = li gh t sw itch
C
= Dyn amo magneto
C2 = Dynamo armature
(, = Ign ition armature
34
c, = Sparking pl ug
(,, = T erminal ca rrier
Cn = li ghting lead (ye ll ow)
c,. = Additional eart h l ead (brown )
c,. = Short ·circui ting l ea d (black)
