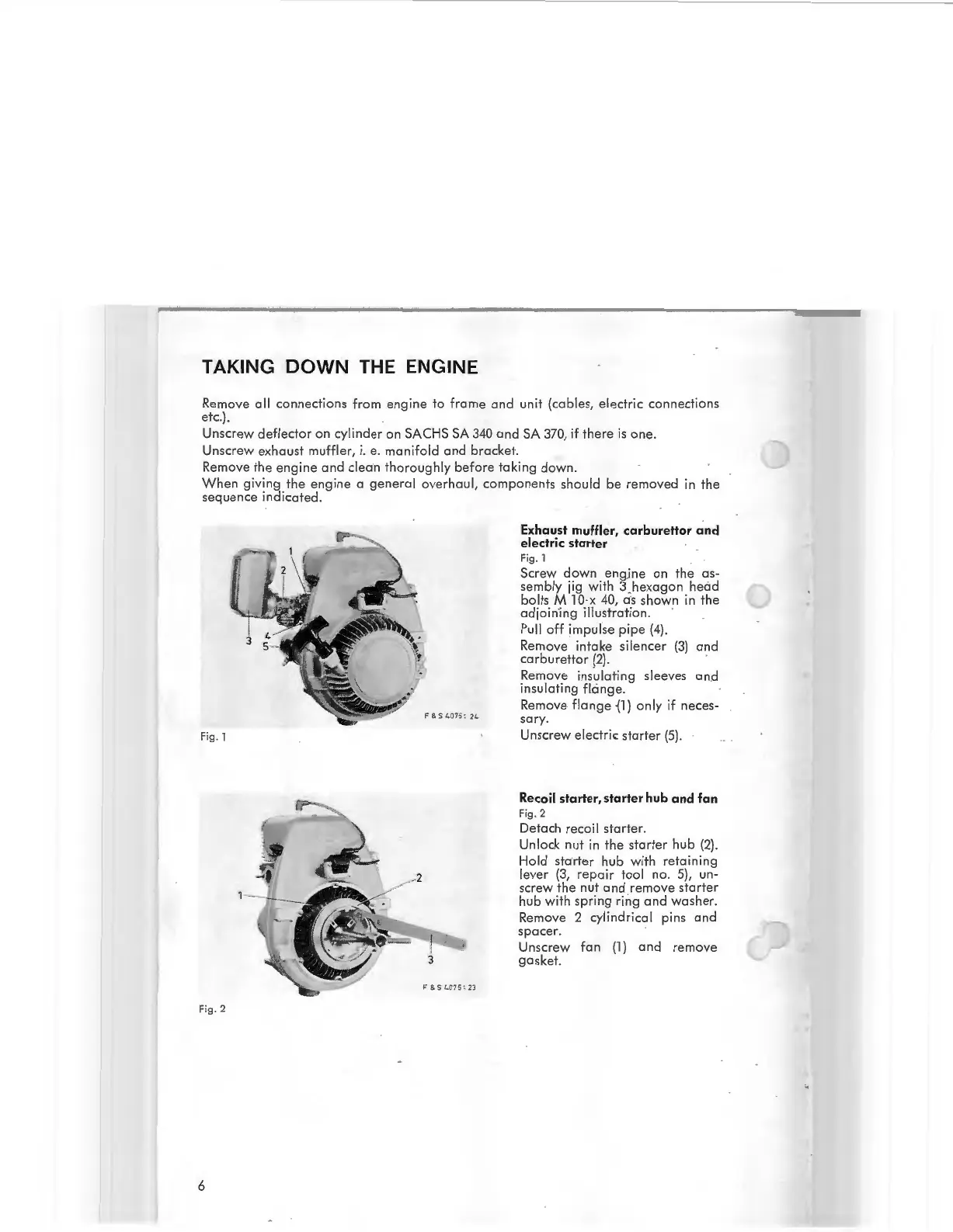

TAKING DOWN THE ENGINE
Remove all conn ections from e ngine to frame and unit (cables, ele ctric conne ct ions
etc .).
U
nscrew def l ector on cyl inder on SACH S SA 340 and SA 370, if th ere is on e.
Un screw exhaust mu ffl er, i .e . man ifold and bracket.
Rem
ove the engine and cl ean t horo u ghly be f ore taking down.
When giv i ng the engine a ge n eral ove rhaul, co mp onents shou ld be removed in t he
se quence in dicated.
Fi g. 1
Fig. 2
6
Exhaust muffler , carbur e ttor and
electric starter
Fig. 1
Scr ew dow n eng ine on the as-
sembly jig w ith 3_ hexagon hecid
bolts M l 0 x 40, as shown in the
adjoining il lust ra t io n.
Pull
off i mpu lse pi pe (4).
Remove
int ake silen cer (3) and
carburettor (2) .
Rem
ov e r ns .ul ating sleeves and
insulat i ng f lan ge .
Rem
ove fl an ge {l ) only if neces-
sary.
Unsc
rew ele ct ric star te r (5).
Re coil starter, s tarter hub and fan
Fig. 2
Detach reco il starte r.
Un lock nut in th e star t er hub (2) .
Hold sta·rter h ub wi th r etai ni ng
lev er (3, repair t oo l no. 5), un-
screw the n ut and re mov e starter
hub with spr ing ri ng and washer.
Rem ove 2 cylin dri cal pins and
s pace r.
Unscrew
fan (l) and remo ve
ga sket.
