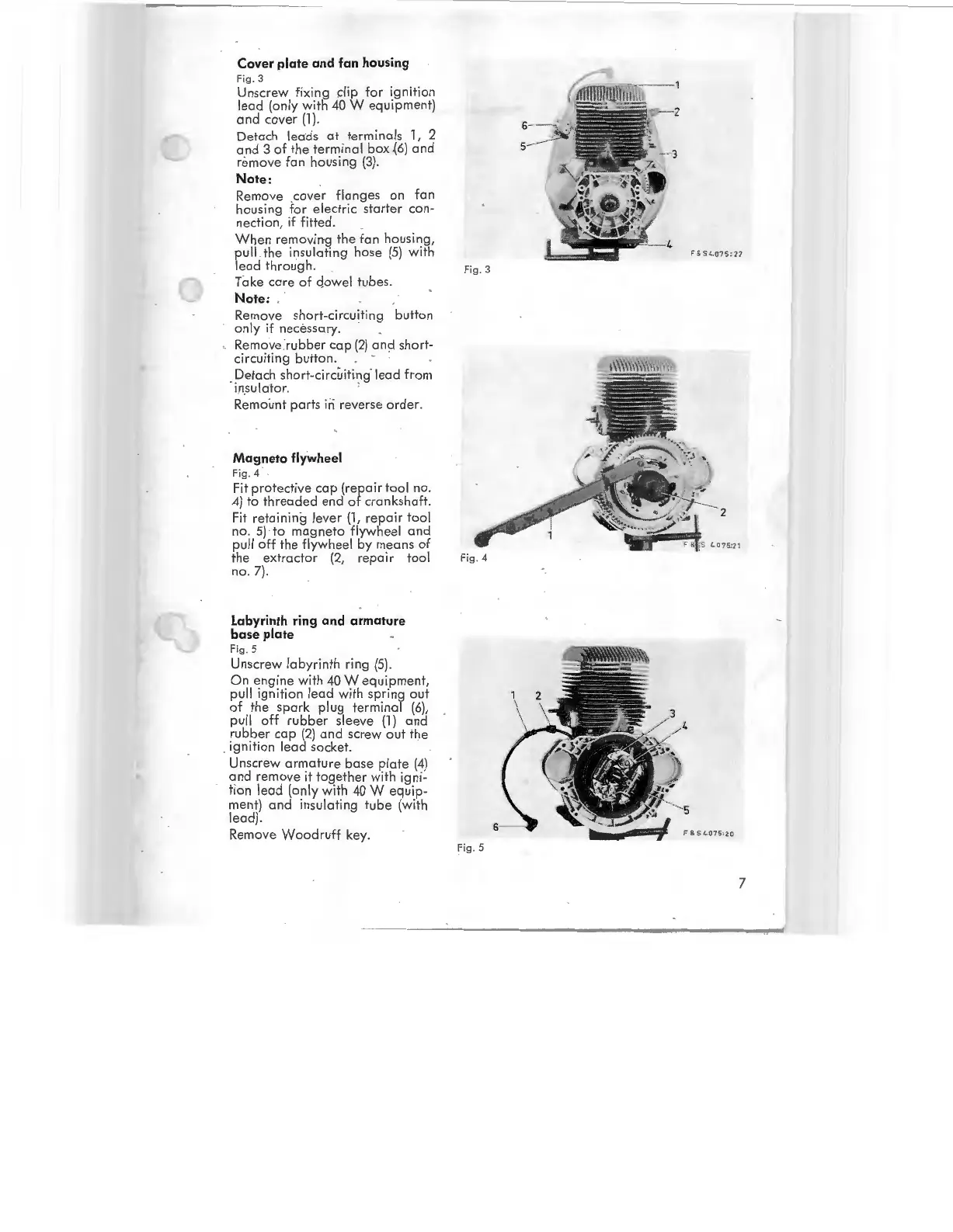

Cover plate and fan housing
Fig. 3
Unscrew fixing clip for ignition
lead (only wit h 40 W equipm ent)
and cover (l ).
Detach leads at t erm inal s 1, 2
and 3 of the terminal box (6) and
re mo ve fa n housing (3) .
Note:
Re mo ve _ cover flange s on fan
housing for electric st arter c on-
nection , if fitted.
When re mo vi ng the fan housin g,
pull the insu lating ho se (5) with
l ead th rough .
T
ake car e of c! o we l tub es.
Note: . ·
Rem ove short-circuiti ng button
on ly if necessary.
Re
mov e ·ru bber cap (2) and sh ort -
circuit ing bu tton. ·
Detach
short-cir c~itin g . le ad f rom
in_s ulator . :
Re
mount part s in rev er se o rd er.
Magneto flywheel
Fig. 4
F it prot e ct ive cap (re pair t oo l no .
. 4) to threaded end of crankshaft.
F
it ret aini ng lever (l , repa ir to ol
no. 5) to magne to f lywheel and
pull off the f ly wheel by means of
th e ex tra ctor (2, repair to ol
no . 7 ).
Labyrinth ring and armature
ba se plate
Fig. 5
Un screw la b yrinth rin g (5).
On eng ine wit h 40 W eq uipm ent,
pull
ignition lead w ith spri ng out
of the spark plug t er minal (6),
pull off rub b er sleeve (1) a nd
rubber c ap (2) and screw out the
ignition l ead socket.
Un screw armature base plat e (4)
and rem ove it to ge th er w ith igni-
tion le ad (on ly w ith 40 W eq uip-
ment) and insul ating tub e (w ith
l
ead ).
Remove
Woodr uff key .
F & SL.-075: 22
Fi g. 3
Fig. 4
Fig. 5
7
