2
English

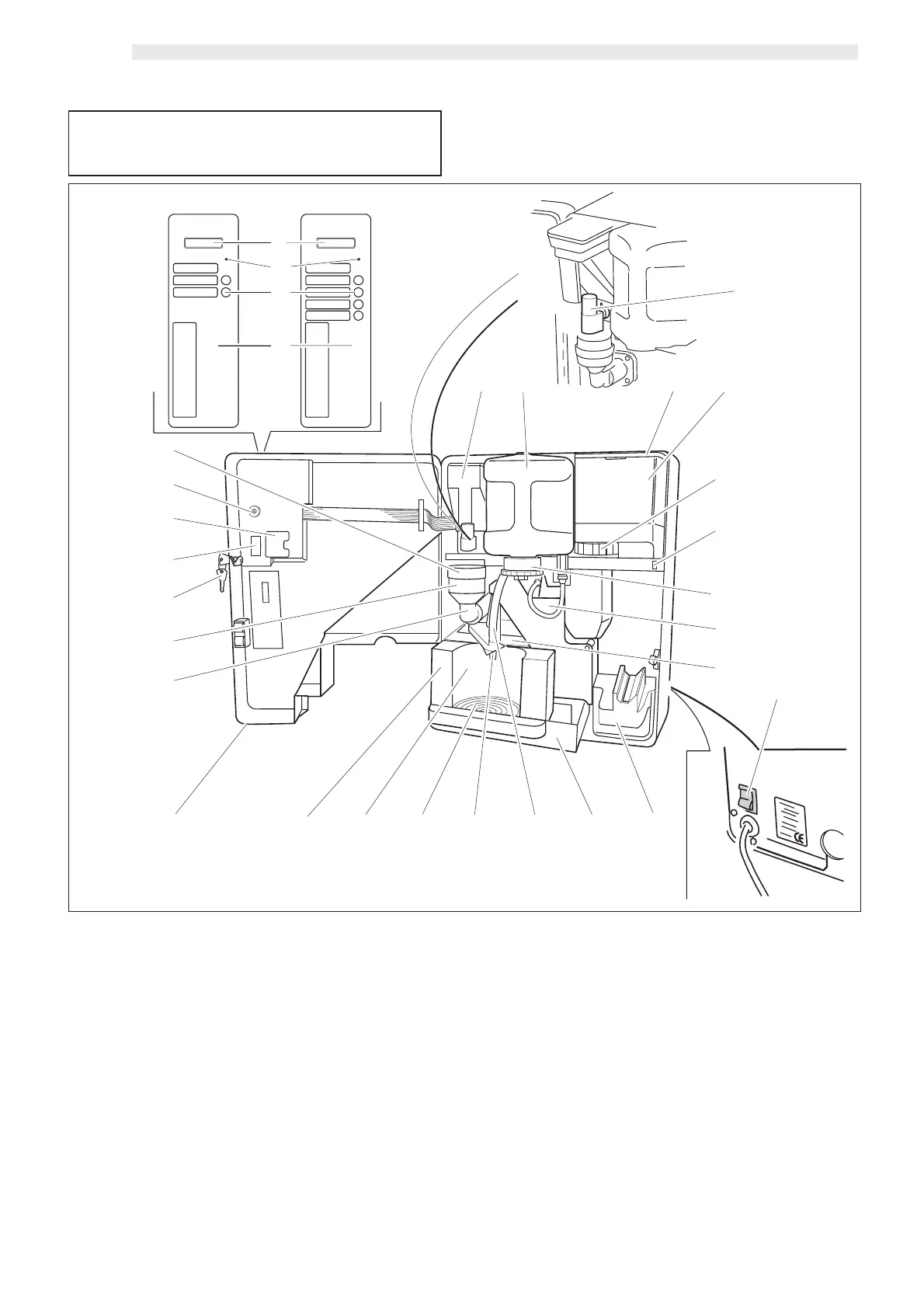

fig. 1
MAIN PARTS
16 Drip tray
17 Hot water nozzle
18 Drink dispenser
19 Drain grill
20 Dispensing slot
21 Grill stand
22 Mixing chamber (only D.A. 5P)
23 Instant product funnel (only D.A. 5P)
24 Door key
25 Serial port
26 RESET key
27 Instant product funnel cover (only D.A. 5P)
28 Main switch
29 Internal access door
30 Clock module door
1 Display
2 Fault light
3 Keys (D.A. 3P - D.A. 5P)
4 Coin slot
5 Silicon bushing (only D.A. 5P)
6 Soluble product container (solo D.A. 5P)
7 Water tank
8 Coffee container cover
9 Coffee bean hopper
10 Grinder selecting knob
11 Opening for safety micro-switch bypassing
12 Tank cover with valve
13 Coffee unit
14 Coffee grounds tray
15 Coin/token box
5
67 8 9
10
11
12
13
14
15
1617181920
21
22
29
28
23
24
25
26
30
27
1
2
3
4
