Saeco Estrosa - Disassembling Outer Elements

MANUAL MACHINES 07 DISASSEMBLY
SAECO Page / 08

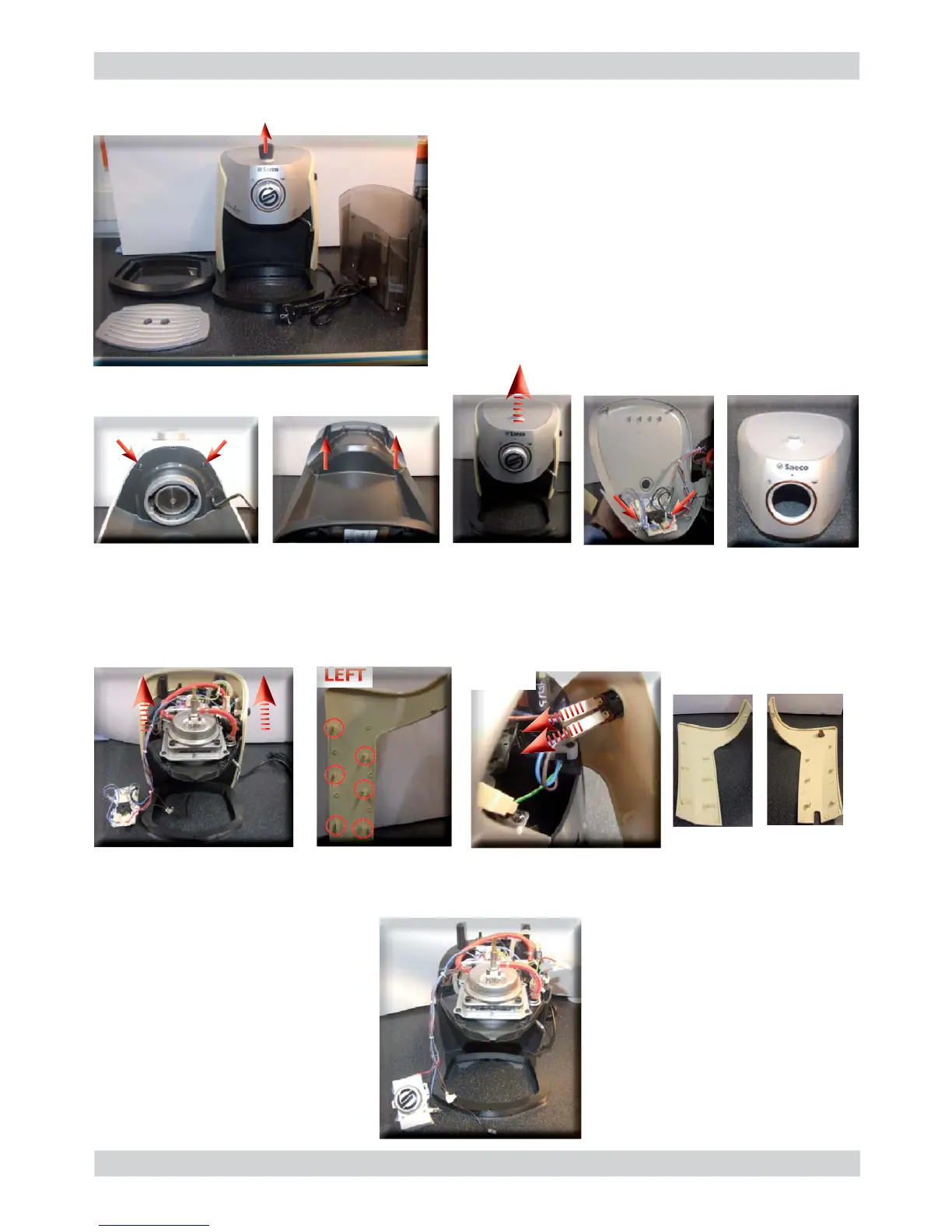

7.1.1. Outer elements
Upper cover
RIGHT and LEFT side covers
Remove the water tank, the water drip tray, the
grille and the steam knob.
Loosen the screws as shown on the front
and rear part of the machine
Lift the cover and loosen the screws as shown
Remove the side covers
by lifting them upwards
LEFT side cover
(note the hooks
of the cover)
RIGHT side cover. Remove the connection of the
on/off switch from the cover
01
RIGHT
