6.3 Motorized tray
2/6

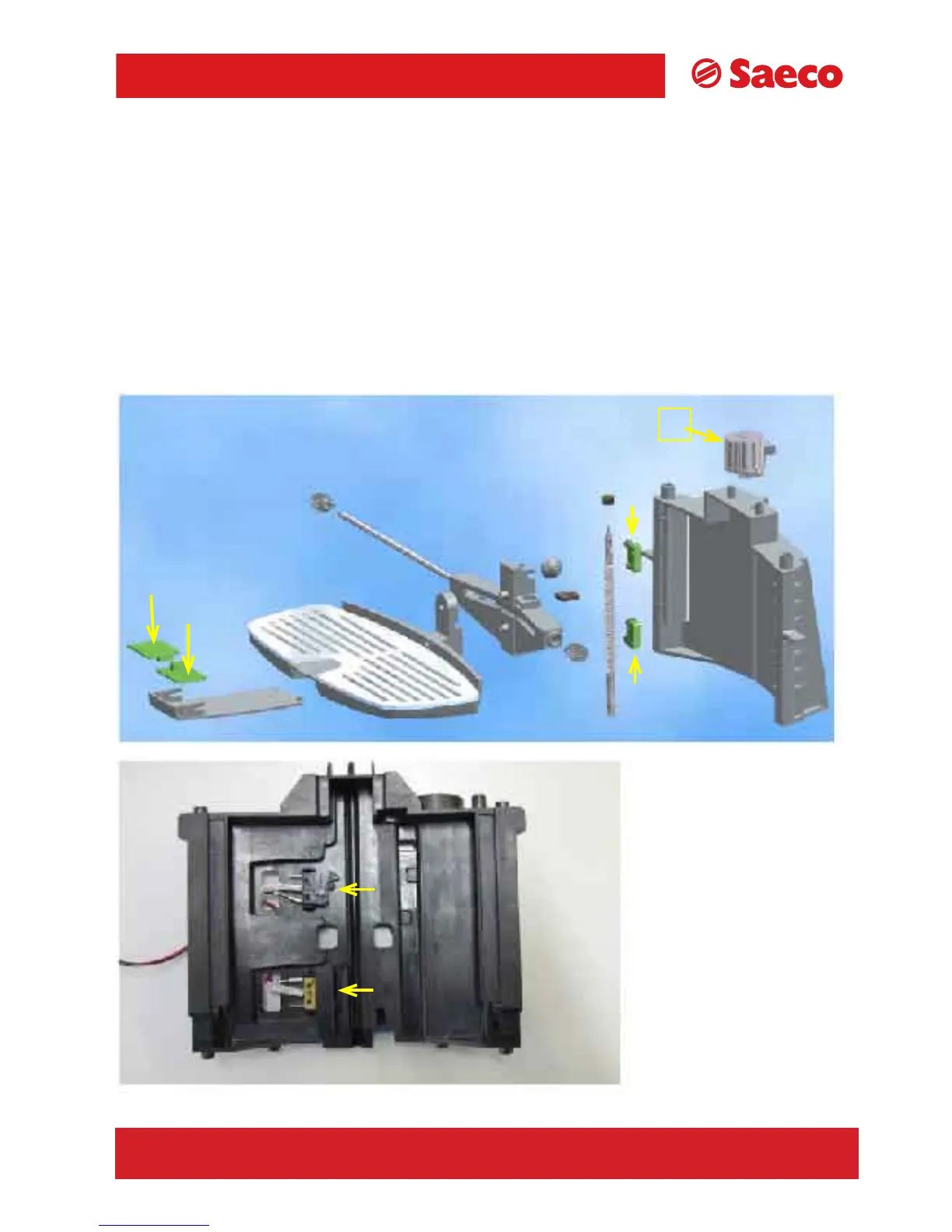

The movement of the motorized tray is mechanical by means of a stepper motor (1) in 24V
DC, controlled by two capacitive pushbuttons (2) located at the front of the tray.
The two microswitches (3) are for the limit switch, and operation can be checked in test mode
(see section 5.1).
