4.2 Knee control model(SDE-L60)

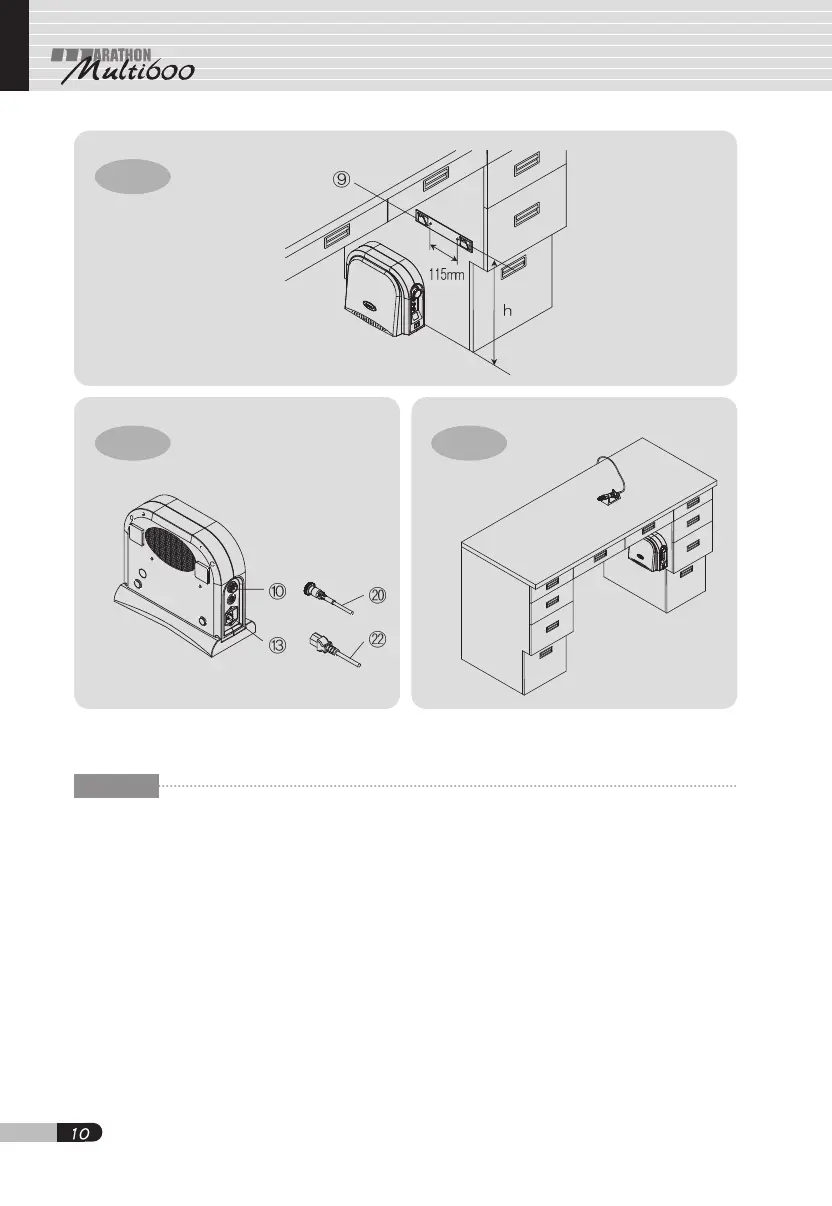

4.2.1 Set mounting bracket ⑨ to a proper
place for knee control under your
technical desk as shown in Fig. 9, using
bolts and screws.
The recommended height of the
mounting bracket from the bottom is:
1) 520~550mm for oriental people
2) 530~580mm for western people
4.2.2 As shown in Fig. 9, firmly mount the
control unit bracket in the proper
direction after checking their holes.
4.2.3 Plug motor cord into motor connector
⑩ in the rear of the control unit in the
proper direction, and then tighten the
plug nuts firmly[Fig. 10].
4.2.4 Plug power cord into power connector
⑬ located in the rear of the control
unit[Fig. 10].
CAUTION
1. While setting the mounting bracket,
special care should be taken for a bolt
or screw head not to be out of the
surface of the bracket.
Fig-9
Fig-10 Fig-11
