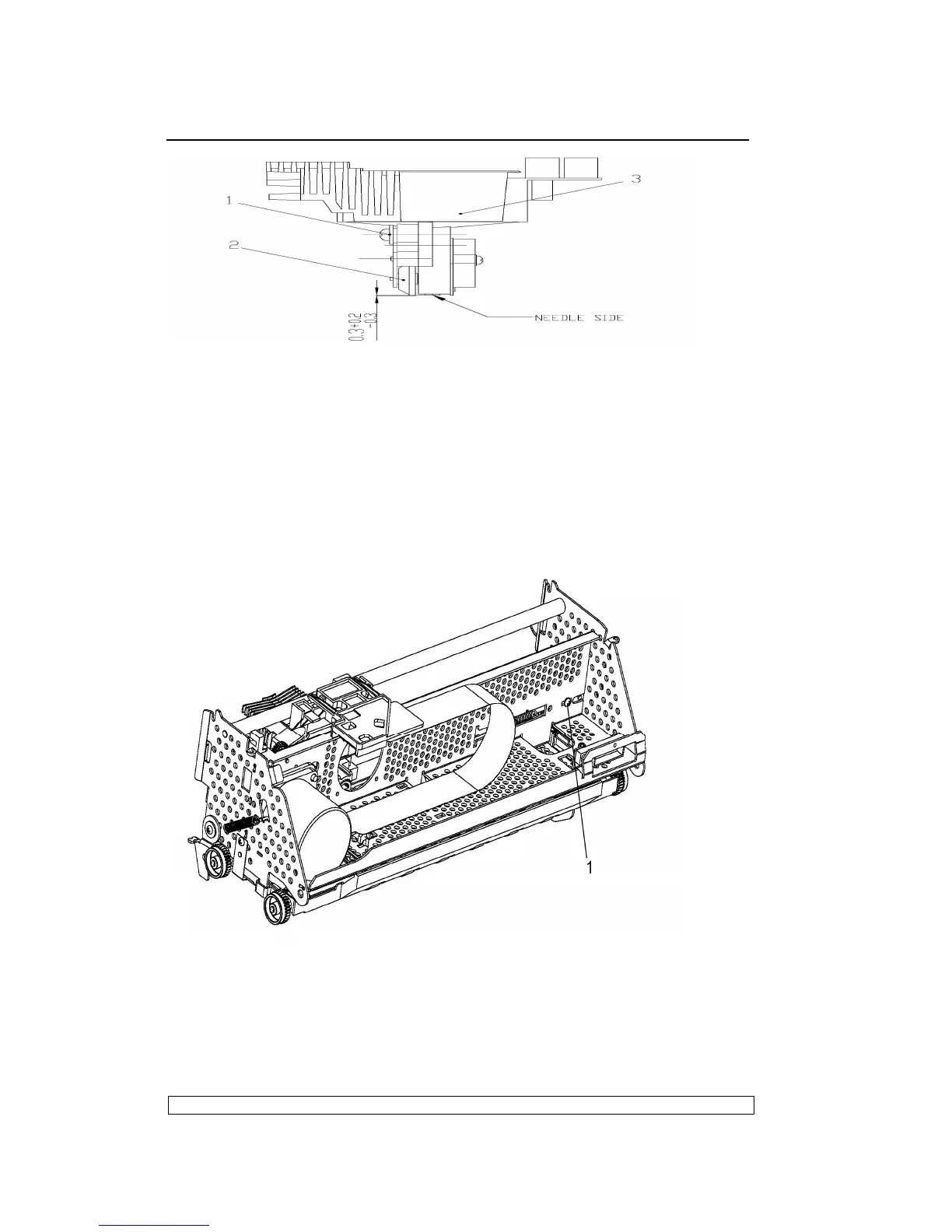

5.4. CARRIAGE MOVMENT BELT ADJUSTMENT
MACHINE CONDITION: Unimportant.
OBJECTIVE ADJUSTMENT : make sure the belt moved smoothly.
ADJUSTMENT METHOD: Adjust the screw (1).
Fig. 5-6
