3.1 Module characteristics
Parameter Value
Typical capacity @ C/8 A and 25ºC 77 Ah
Rated capacity @ C/8 A and 25ºC 74 Ah
Rated capacity @ C/5 A and 25ºC 73 Ah
Rated capacity @ C/24 A and 25ºC 79 Ah

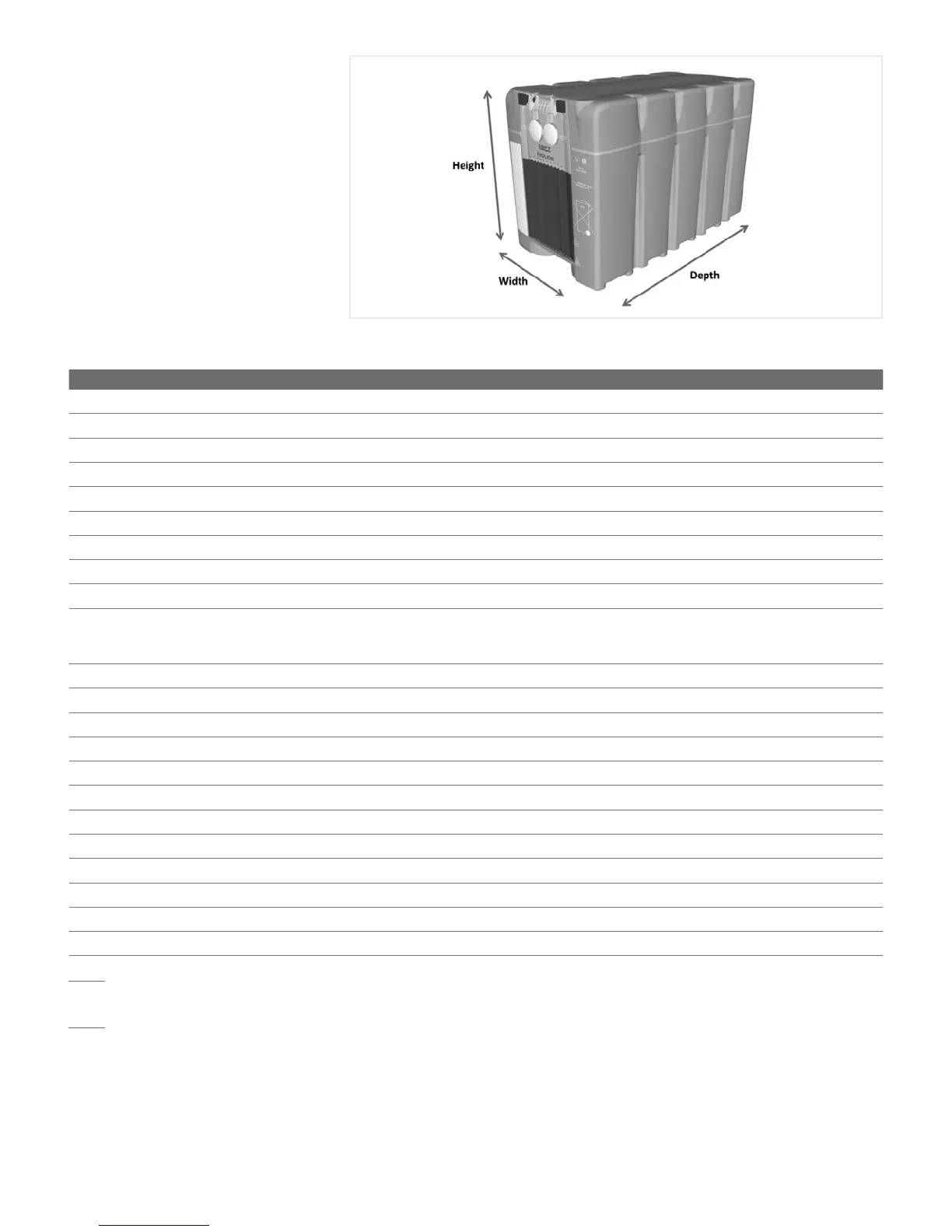

Width 216 mm (8.50 inches) equivalent to 5 RU
Depth 404 mm (15.91 inches)
Height 260 mm (10.24 inches) equivalent to 6 RU
Weight 30 kg (66 lbs)
Case Material Polycarbonate, UL94 V0 compliant
Protection index (IP)
IP20
It is also waterproof when immersed in water up to 6 inches
(15.2 cm) from the bottom when mounted right side up.
Nominal voltage 48 Vdc
Maximum voltage 56 Vdc
Minimum voltage 42 Vdc (internal Low Voltage Disconnect or LVD)
Maximum charge current @ 20ºC
(Note 1)
32 Amps
Maximum discharge current @ 20ºC
(Note 2)
44 Amps
Operating temperature range - 40ºC / + 75ºC (- 40ºF / + 167ºF)
Storage temperature range - 40ºC / + 75ºC (- 40ºF / + 167ºF)
Maximum relative humidity 95 % (non condensing)
Maximum operating altitude 3000 meters (9843 feet)
Insulation resistance @ 500 Vac 1 Mohm
Dielectric resistance 500 Vrms
BMST version See Appendix F
Note 1: The maximum charge current is a function of the measured battery temperature and represents the limit where the regulated charge mode will be
activated. See section Charging for more details. The values are given for BMST software version 0.57 and later.
Note 2: The maximum discharge current is a function of the measured battery temperature and represents the limit where the battery will not discharge if
exceeded. See section Discharging for more details. The values are given for BMST software version 0.57 and later.
