Sailfish 320 CC - MSD Waste Management System Installation & Maintenance; System Installation; System Maintenance; Winter Storage

01/20/2015 Sailsh320CCOwner’sManual|sailshboats.com 33

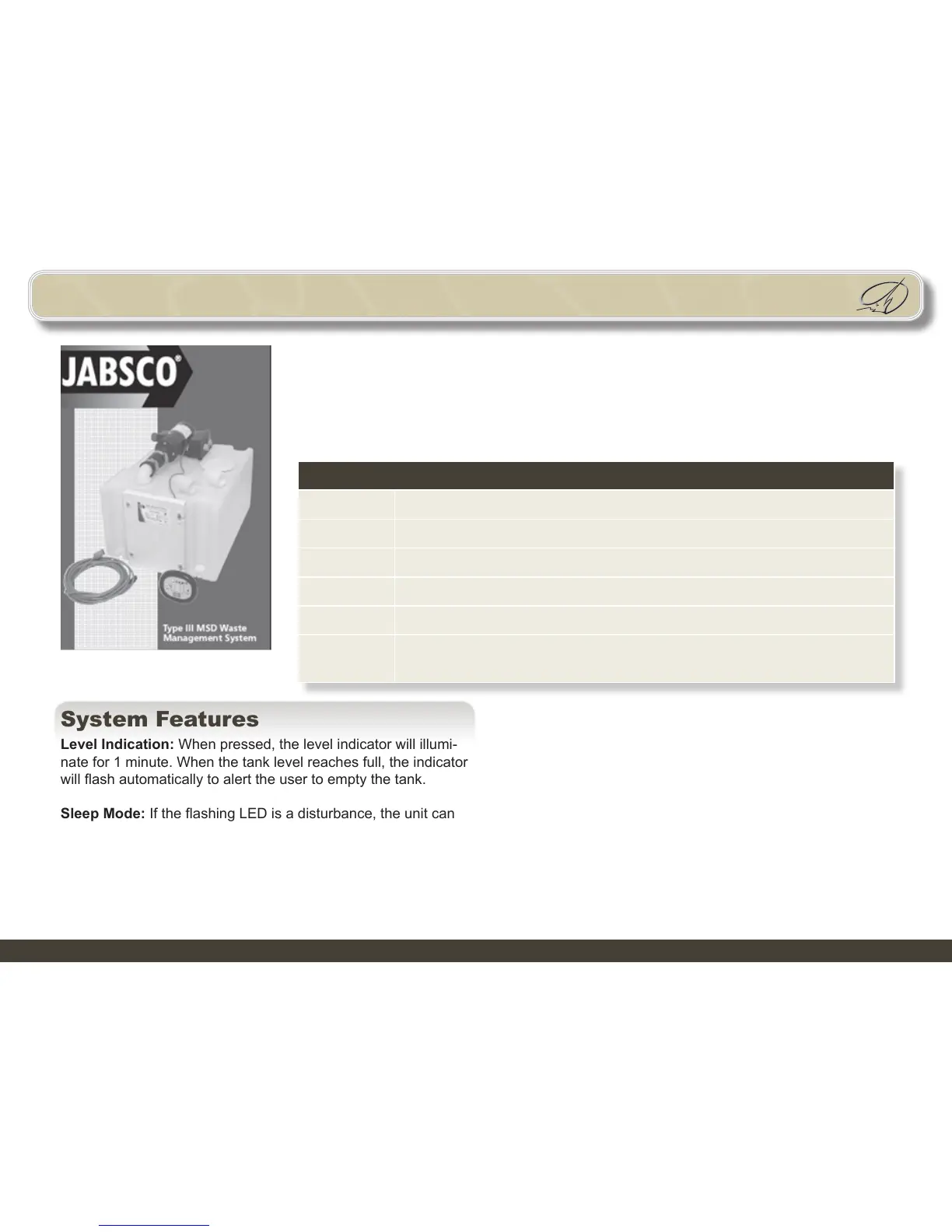

Type III MSD Waste Management System
System Features
LevelIndication: When pressed, the level indicator will illumi-
nate for 1 minute. When the tank level reaches full, the indicator
will ash automatically to alert the user to empty the tank.
SleepMode: If the ashing LED is a disturbance, the unit can
be put into sleep mode. The unit will emerge from sleep if the
system is turned off or the tank level is increased. NOTE: the
unit is unable to be put into sleep mode if the tank is 7/8 full or
greater.
EmptyButton: This button needs to be pressed and held for 3
seconds to activate the pump. This eliminates the possibility of
accidental operation.
Averaging: Two different level averaging methods have been
used – one when lling and one when emptying. This compen-
sates for the boat’s movement when the tank is lling, and still
allows an accurate reading when emptying.
FailSafeFeature: If no uid movement is sensed 20 seconds
after the pump is set to run, the pump will shut down and indi-
cate a fault check pump and plumbing for a blockage.
• Rugged Polyethylene holding tank
• Barbed ttings for all hose connections
• Heavy Duty Macerator
• Three run-dry and accidental activation
safety features
• Evacuation Pump
• Touch-pad waste management control
panel
• Additional dock side evacuation pick up
Pump Features
Pump:
Self-Priming Flexible Impeller with Stainless Steel Wearplate
Impeller: Jabsco Nitrile compound
Macerator: Stainless Steel Cutter reduces particle size to 1/8” (3mm) maximum
Seal:
Lip Type
Ports: Intec – 1-1/2: (38mm) Hose Barb and 1-1/2” N.P.T. (Male) Outer – 1” (19mm) Hose Barb
Motor:
Permanent Magnet Type, Fully Enclosed with Stainless Steel Shaft Includes Run-Dry
Protection Device that shuts off pump. Powder coated housing with sealed end bolts and
bearings.
