Sailor A1 VHF-DSC User Manual

8
Installation
RT4800/01

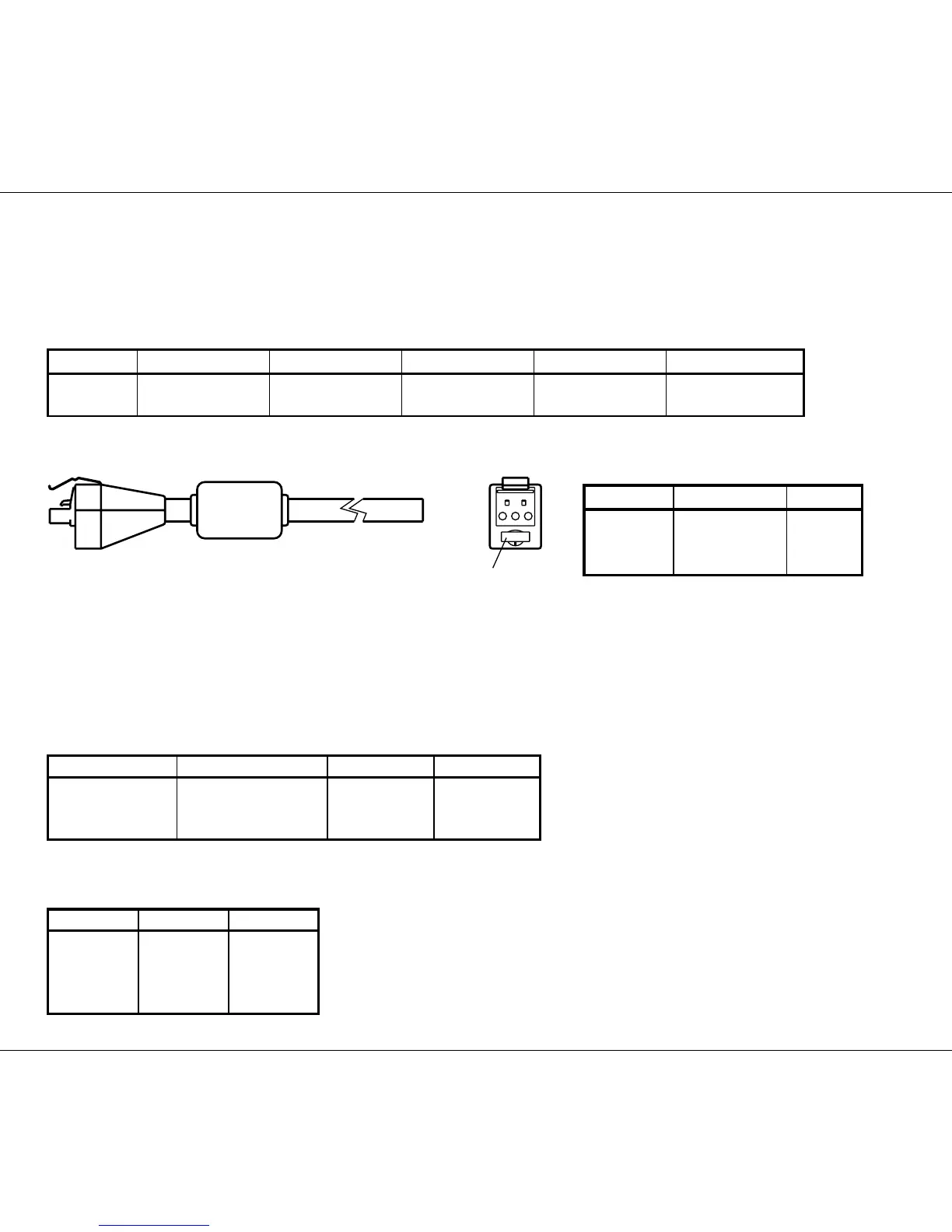

2.5 Cable Length
The cable length specified below is the absolute maximum length.
2.5.1 Power Cable
Number Supply From To Wire mm2 Max. length
56.112 +12 volt BATTERY RT4800/01 2.5 1.5 metres
+12 volt BATTERY RT4800/01 5.0 3 metres
Note: The cable length from battery to N420 depends on the wire thickness, but the voltage at the cable end at N420
should not be less than 18 volt.
35355A
10
3 2 1
Spare 10A fuse
Pin no. Name Colour
Pin 1 SUPPLY_ON Blue *
Pin 2 +BAT Red
Pin 3 -BAT Black
* NB! The blue wire is only to be used in connection with N420.
2.6 Electrical Connections
2.6.1 Power Connectors
Power connector
Transceiver unit Name Battery N420
pin 1 SUPPLY_ON NC SUPPLY_ON
pin 2 +Battery, +12VDC + +12V
pin 3 - Battery, 0VDC - 0V
2.7 Compass Safety Distance
Unit Standard Steering
Transceiver 0.3 m 0.3 m
Handset 1.1 m 0.6 m
N420 0.6 m 0.3 m
N163S 1.2 m 0.7 m
