2 INSTALLATION RT2047 DSC - PART I

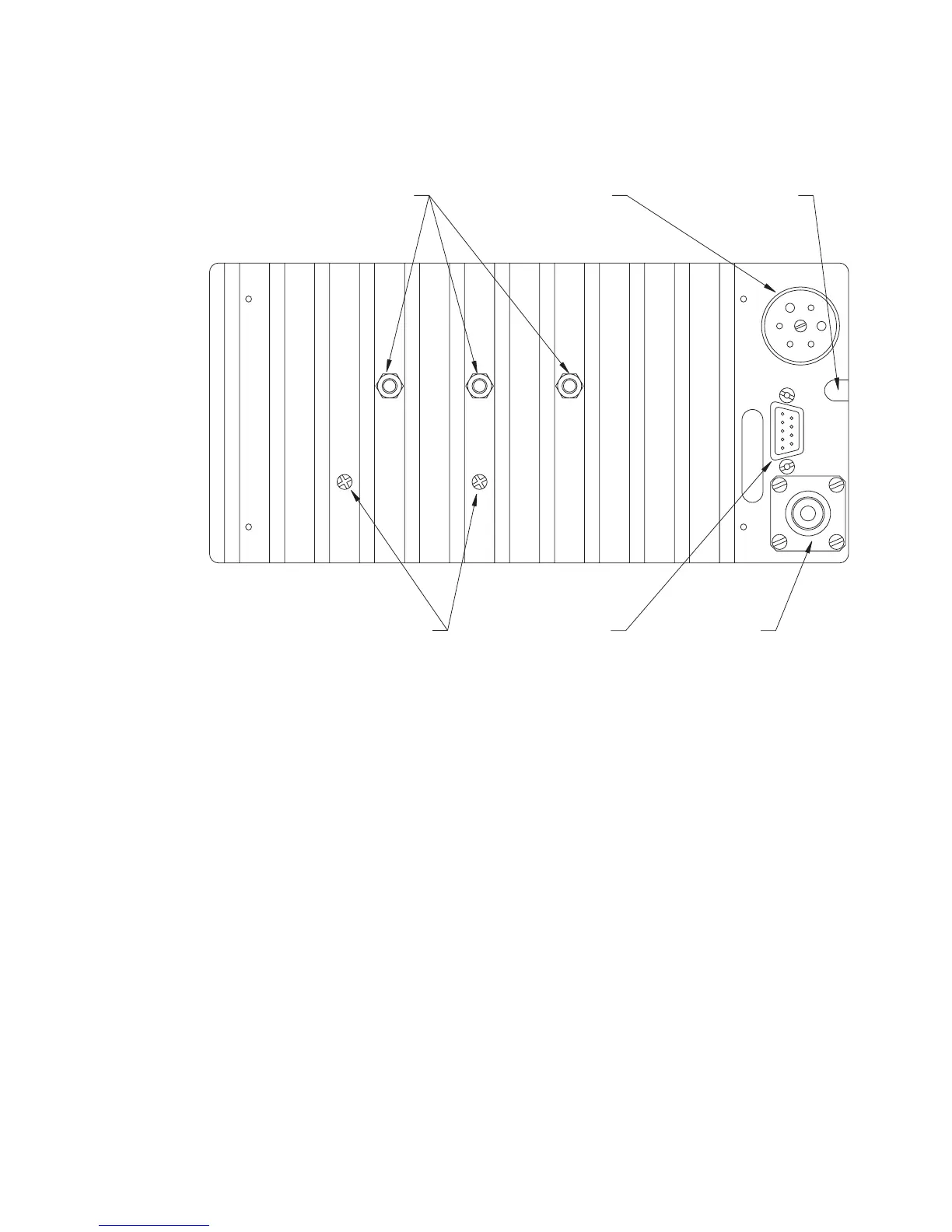

2.10 REAR VIEW OF VHF RT2047
28368
Screws for Tx Power Transistor
T401’s heat sink conductor.
Power Supply
connector P802
Cable groove for
special options
heat sink on Interface unit(6).
Screws for Regulator Transistors
MUST BE REMOVED WHEN INTERFACE
UNIT HAS TO BE REMOVED!
Microtelephone
connector J803
Antenna
connector J801
12V DC
PAGE 2-11
