2 CIRCUIT DESCRIPTION RT2047 DSC - PART II
PAGE 2-46
9543

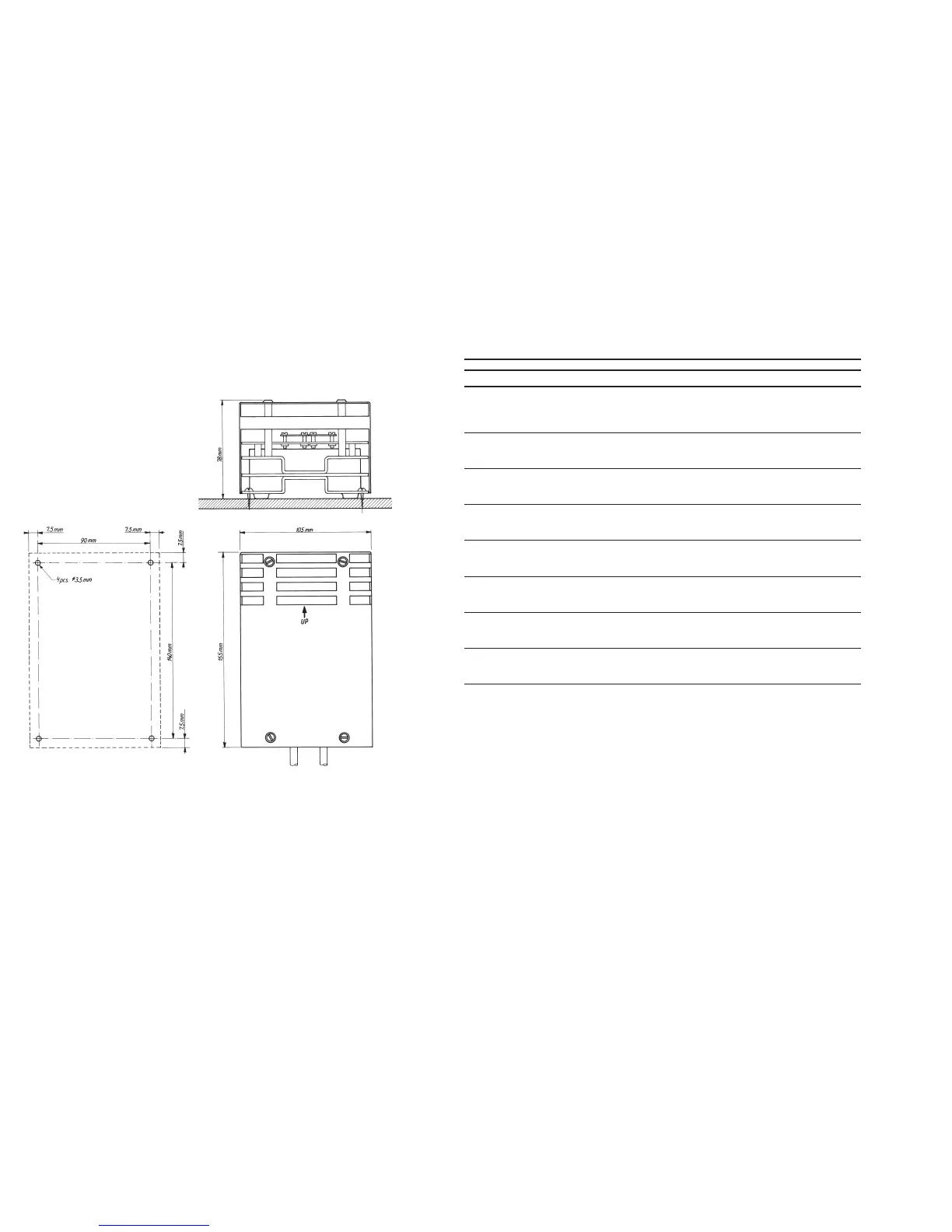

DIMENSION AND DRILLING PLAN N420
25332
N420 must only be mounted vertically.
Free distance must be kept to allow circulation.
PARTS LISTS N420
VOLTAGE REGULATOR N420 ECI A/S 5-0-24613G 600416
POSITION DESCRIPTION MANUFACTOR TYPE PART No.
C1 CAPACITOR ELECTROLYTIC 47uF -10/+50% 63V ERO EB 00 FL 247 J 14.552
C2 CAPACITOR MKT 0.22uF 10% 63V ERO* MKT1818 11.090
C3 CAPACITOR MKT 0.22uF 10% 63V ERO* MKT1818 11.090
C4 CAPACITOR ELECTROLYTIC 47uF -10/+50% 63V ERO EB 00 FL 247 J 14.552
C5 CAPACITOR MKT 100nF 10% 100VDC PHILIPS 2222 371 28104 11.180
D1 DIODE MR750 MOTOROLA MR750 25.219
D2 DIODE SCHOTTKY BAT 43 THOMSON-CSF BAT43 27.600
D3 DIODE ZENER 7.5V 5% 0.4W BZX79C7V5 PHILIPS BZX79C7V5 26.539
D5 DIODE 1N4148 HIGH SPEED PHILIPS 1N4148-143 25.131
D6 DIODE 1N4148 HIGH SPEED PHILIPS 1N4148-143 25.131
F1 FUSE 8AF 250V Ø5x20mm ELU 171 100 8AF 45.561
(DIN 41571/1)
IC1 VOLTAGE REGULATOR +12V MOTOROLA* MC7812CT 31.260
R1 RESISTOR POWER 1R0 OHM 10% 6.5W VITROHM 1R0 10% TYPE 296-0 05.725
R2 RESISTOR POWER 1R0 OHM 10% 6.5W VITROHM 1R0 10% TYPE 296-0 05.725
R3 RESISTOR POWER 1R0 OHM 10% 6.5W VITROHM 1R0 10% TYPE 296-0 05.725
R4 RESISTOR 47 OHM 5% 0.6W BEYSCHLAG MBB 0207-00-BX-47R 5% 03.167
R5 RESISTOR PMF 27 OHM 5% 3W PHILIPS 2322 195 13279 04.660
R6 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R7 RESISTOR MF 1k0 OHM 5% 0.4W PHILIPS 2322 181 53102 01.200
R8 RESISTOR MF 10k OHM 5% 0.4W PHILIPS 2322 181 53103 01.225
R9 RESISTOR 2.2 KOHM 5% 0.6W DRALORIC SMA 0207 S TK100-2K2 5% 03.208
R10 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R11 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R12 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R13 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R14 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R15 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R16 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R17 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R18 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R19 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R20 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R21 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R22 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
R23 RESISTOR POWER 6R8 OHM 10% 6.5W VITROHM 6R8 10% TYPE 296-0 05.730
T1 TRANSISTOR DARLINGTON MJ2501 TEXAS* MJ2501 29.235
T2 TRANSISTOR DARLINGTON MJ2501 TEXAS* MJ2501 29.235
T3 TRANSISTOR AF BC547B NPN TO-92 PHILIPS BC547B 28.067
T4 TRANSISTOR BD140-10 AEG* BD140-10 29.066
