Saito FA-150 - Specifications

I
Figure 6
Figure 7
Figure 8

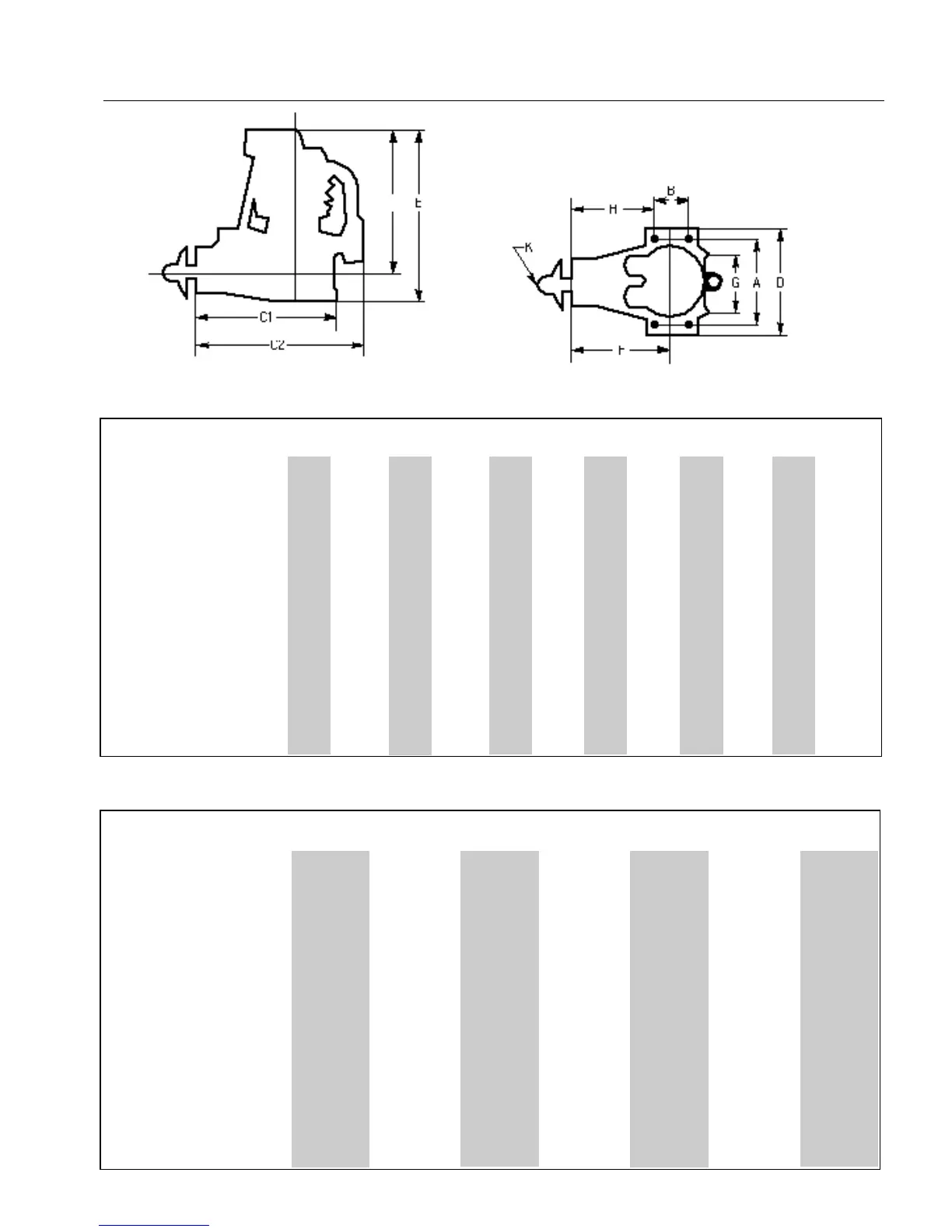

OUTSIDE DIMENSIONS (mm)
Items A B B1 B2 C1 C2 D E F G H I
FA-30S (H)/30S GK 36 14 — — 88 110 43 87 47 29 33 72
FA-50/FA-50GK 46 15 — — 103 130 54 102 59 32 52 84
FA-56/FA-56GK 46 15 — — 103 130 54 102 59 32 52 84
FA-65/FA-65GK 50 21 — — 113 144 60 113 66 40 55 93
FA-72/FA-72GK 46 — — — 113 136 54 112 77.5 36 59.5 94
FA-80/FA-80GK 50 21 — — 113 144 60 113 66 40 55 93
FA-91 Special/FA-91SGK 50 21 — — 114 146 60 113 66 40 55 93
FA-120 Special/FA-120SGK 59 24 — — 150 175 69 132 80 45 68 110
FA-150/FA-150GK 59 24 — — 150 175 69 132 80 45 68 110
FA-180/FA-180GK 59 24 — — 150 175 69 132 80 45 68 110
SPECIFICATIONS
Items Disp Bore Stroke Weight K Cylinder HP
(cc) (mm) (mm) (g) (ISO)
FA-30S (H)/30S GK 5.03 20 16 270
1
/
4
x28 AAC —
FA-50/FA-50GK 8.2 23.4 19.0 435 M7x1 — ABC 0.85
FA-56/FA-56GK 9.2 24.8 19.0 440 M7x1 — ABC 0.93
FA-65/FA-65GK 10.6 24.8 22.0 550 M7x1 — ABC 0.95
FA-72/FA-72GK 11.8 27.0 20.6 470 M7x1 — AAC 1.2
FA-80/FA-80GK 13.1 27.0 22.8 540 M7x1 — ABC 1.3
FA-91 Special/FA-91SGK 14.9 28.2 24.0 520 M7x1 — AAC 1.7
FA-120 Special/FA-120SGK 20.0 32.0 24.8 820 M8x1.25 — AAC 2.2
FA-150/FA-150GK 25.0 34.0 27.6 850 M8x1.25 — AAC 2.5
FA-180/FA-180GK 29.1 36.0 28.6 880 M8x1.25 — AAC 2.8
