STARTING THE ENGINE
5
Starting The Engine
1. Make sure the glow plugs are
installed and tightened.
2. Be sure the propeller is properly
secured. The use of a “jam nut” is
encouraged on 4-cycle engines.
3. Make sure the fuel tank
line(s) are properly connected. The
main line should be connected to the
carburetor spray bar (84).
NOTE: If your Saito engine is
equipped with dual carburetors it’s
imperative that the fuel lines are
identical in length from the Y-fitting
to the fuel inlets.

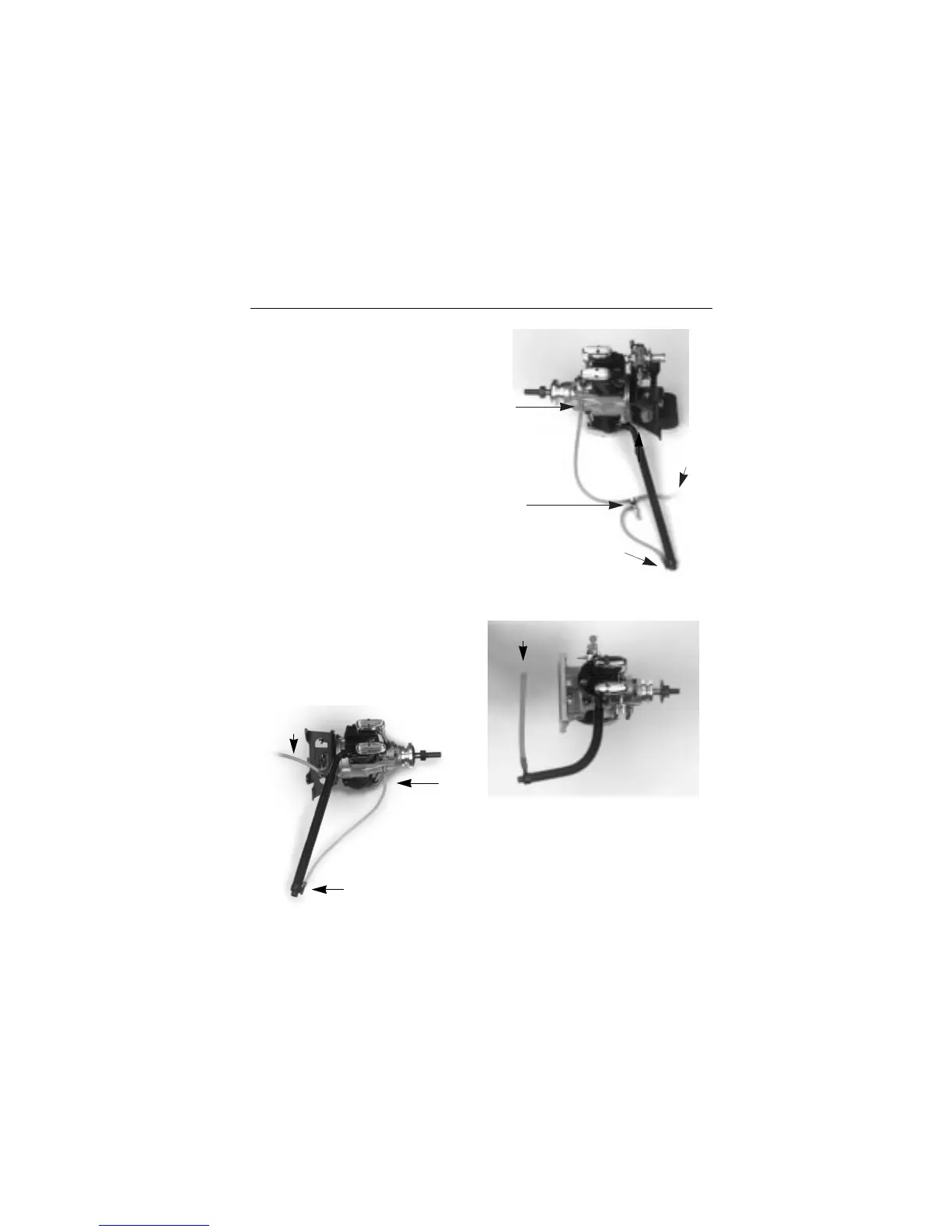

Connect the fuel tank lines as shown in
Figures 1, 2 and 3.
The proper “plumbing” of the lines
is extremely important to the
performance of any engine.
Figure 2
FA-300TTDP
Air out nipple
Air intake nipple
Vent line
Excess pressure outlet
Pressure adjusting valve
Figure 1
Connect this end of fuel tubing to the
nipple on the muffler conncected to the
right cylinder. This connection will carry
the fuel residue away from your aircraft.
Breather
nipple
FA-300TL
Vent line
Figure 3
FA-100T
Tank vent line
To Next Page
