PDM20 Series
-16-

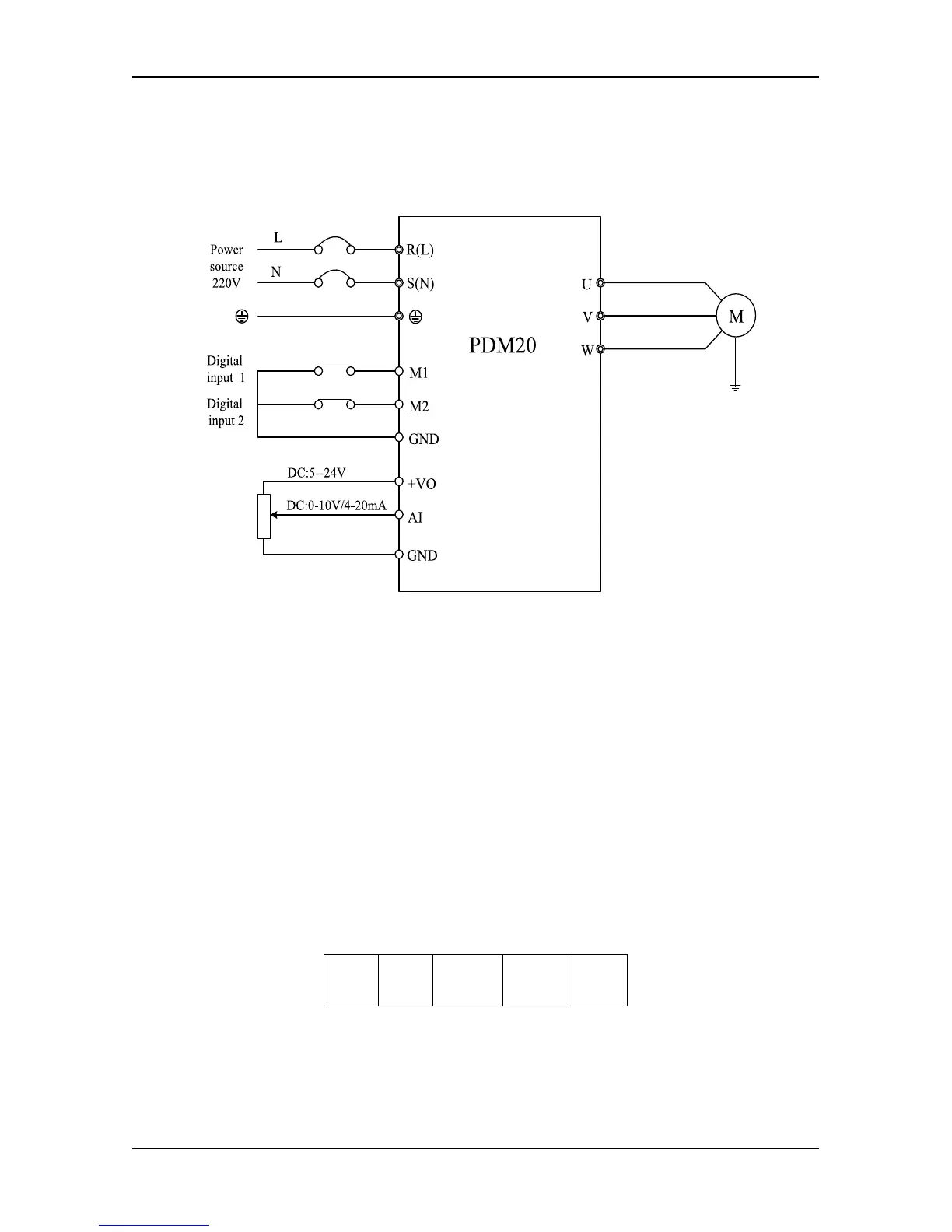

2.5Wiring Diagram of Main Circuit and Control Terminals
Note:
Terminals:
◎ refers to main circuit;
Terminals:
○ control loop terminals
2.6Control Terminals
2.6.1 Control terminals
The wiring mode of control terminals is internal terminal wiring or outer lead
connection, cabled-out by waterproof connectors.
M1 M2 GND +VO AI
Control terminals
