PDM20 Series

-18-

(1) Transmissible pressure gauge: working voltage 10VDC, output 0

～

10VDC.

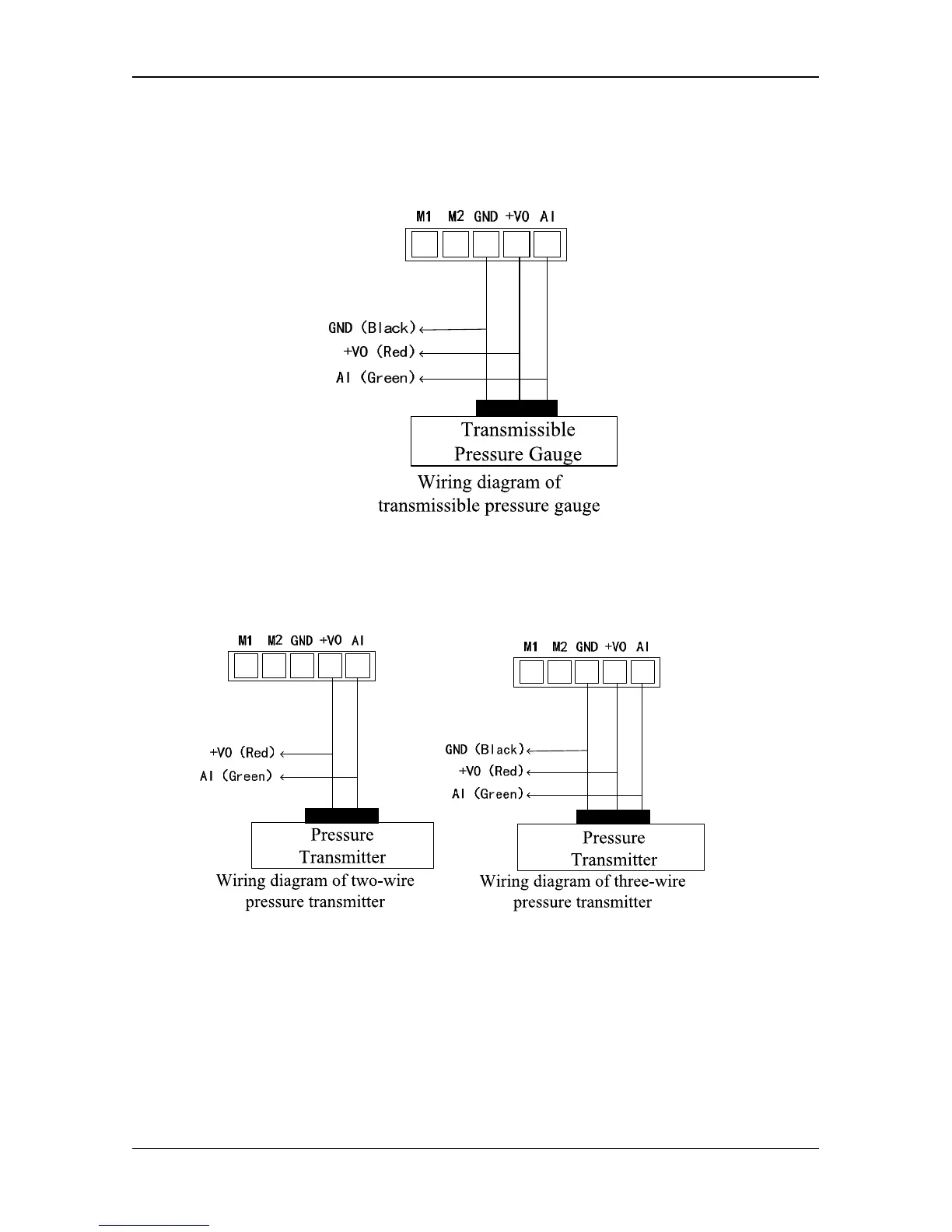

Wiring method is shown as below.

(2) Pressure transmitter: working voltage range 10

～

30V, output 4

～

20mA.Wiring method is shown as below.

Notes: Model for PDM20-2SXXXLN products will be equipped with dedicated

sensors (red line connected to terminal +VO; black line connected to terminal AI).

For the wiring method of various sensors and the setting of relevant parameters,

please refer to appendix.
