SAJ PDS33-2S2R2 User Manual

PDS33 Series
- 21 -
3.2 Electrical Installation
3.2.1 Terminals
The following are typical figures of terminal blocks.
Note: Terminals are different in shapes and combinations, depending on different sizes
of PDS33 Solar Controllers.

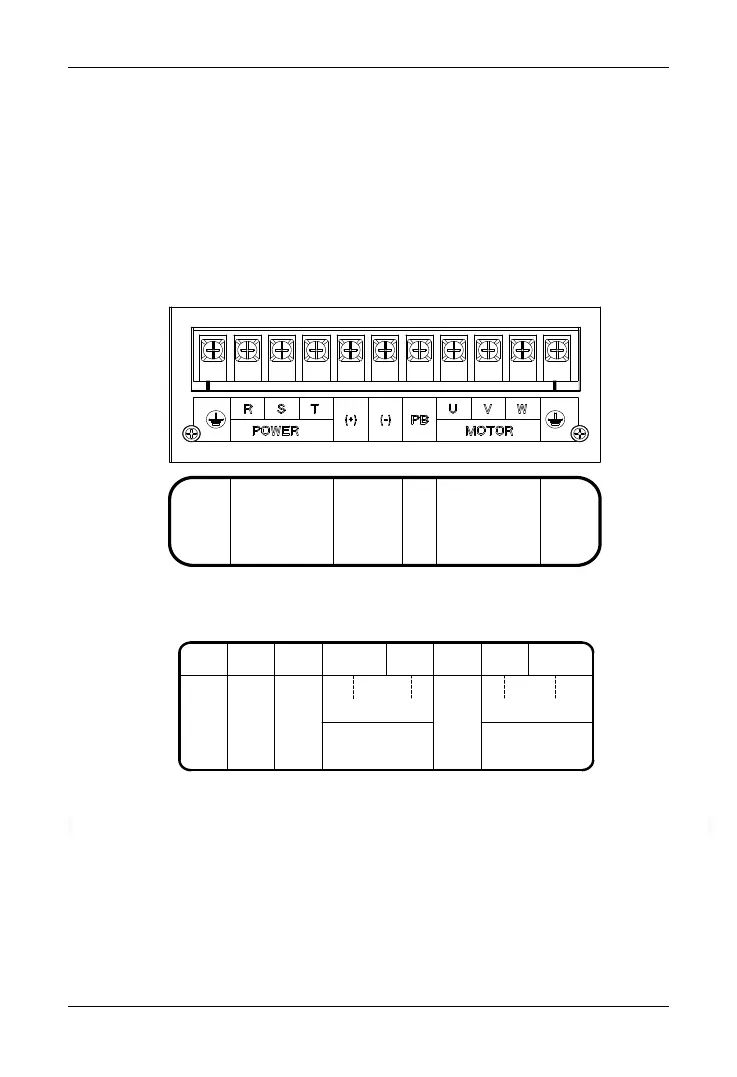

Figure 7 Main terminals (The sequence may be different from actual product)
Figure 8 Control terminals (The sequence may be different from actual product)
GROUND
PowerIn
AC INPUT
The DC and AC can't
input at the same time
NO FUNCTION
Pump
To reverse direction
reverse any wo wires
GROUND
DI1 DI2 DI3 COM DI4 DI5 DI6 COM
Remote Float
Switch
Low Level
Probe
RUN
JOG
Reset
No
Func
tion
Low level
of Well
Full of
Reservior
