4.4.2 Drill Holes and Place the Expansion Tubes
Follow the given guides, drill 3 holes in the wall (in conformity with position
marked in Figure 4.6, Figure 4.7 & Figure 4.8), and then place expansion tubes in
the holes using a rubber mallet.

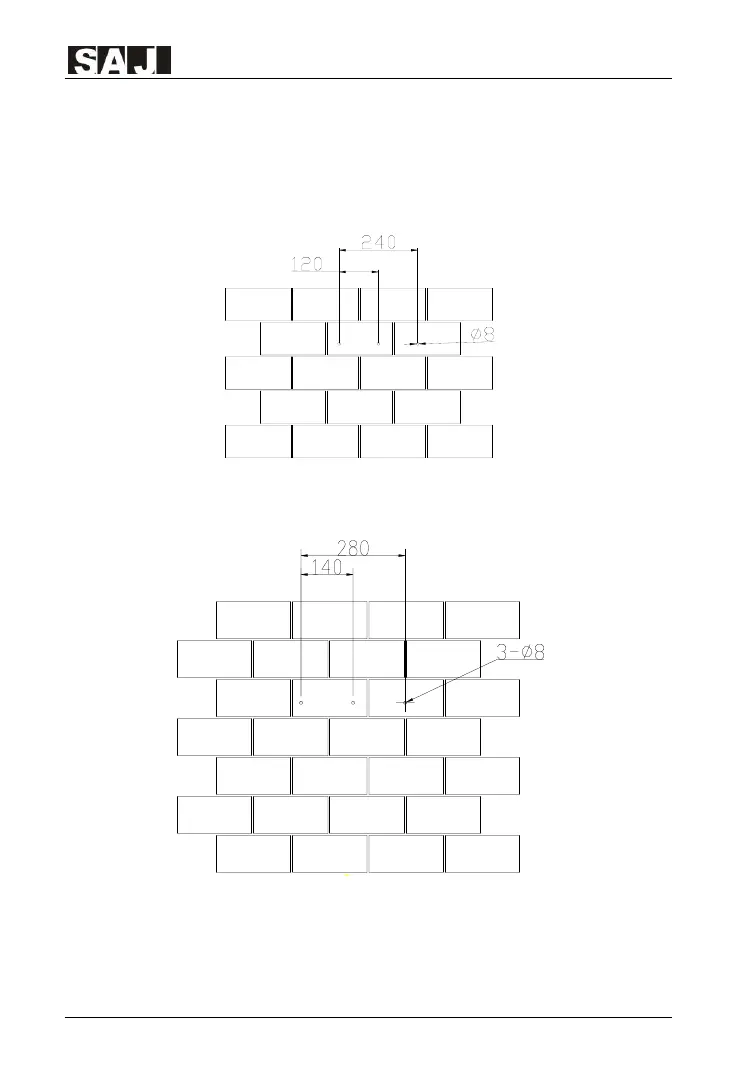

Figure 4.6 Drill holes’ dimensions of R5-3K/4K/5K/6K/8K/9K/10K/12K-T2
比例
Figure 4.7 Drill holes’ dimensions of R5-13K/15K-T2
