R5 Series

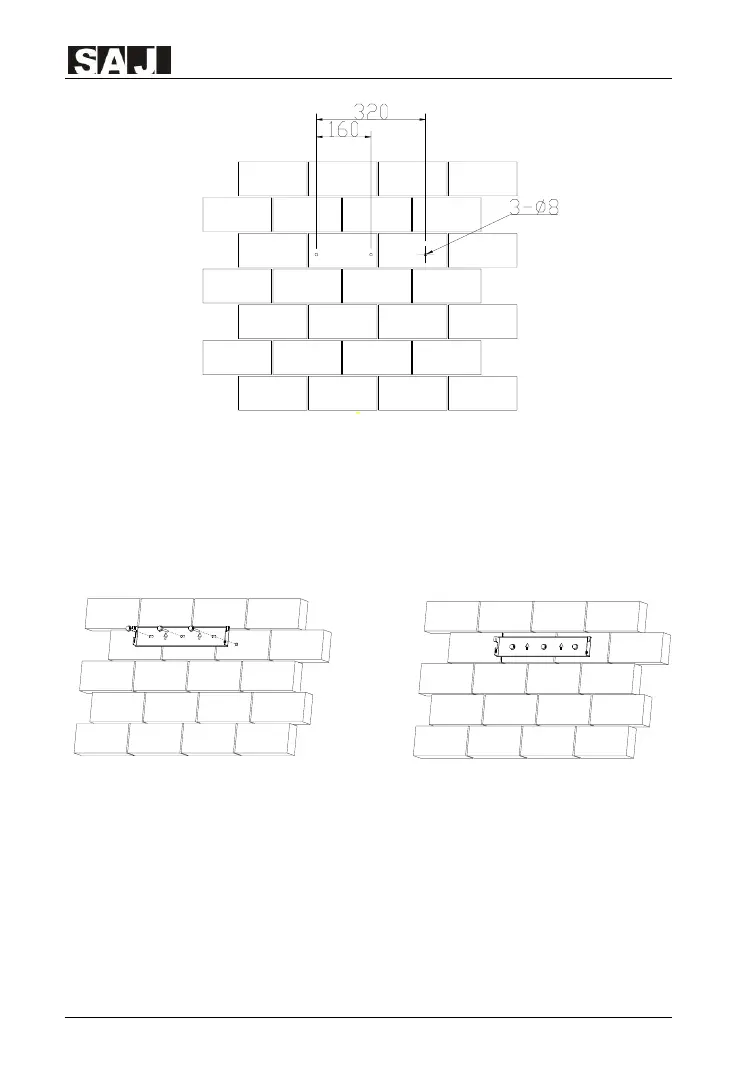

Figure 4.8 Drill holes’ dimensions of R5-17K/20K-T2
4.4.3 Mount the Screws and the Rear Panel
The panels should be mounted in the mounting position by screws as shown in
Figure 4.9.
Figure 4.9 Mount the rear panel
4.4.4 Mount the Inverter
Carefully mount the inverter to the rear panel as shown in Figure 4.10 and 4.11,
Make sure that the rear part of the equipment is closely mounted to the rear
panel.
