Sununo Plus Series
-20-

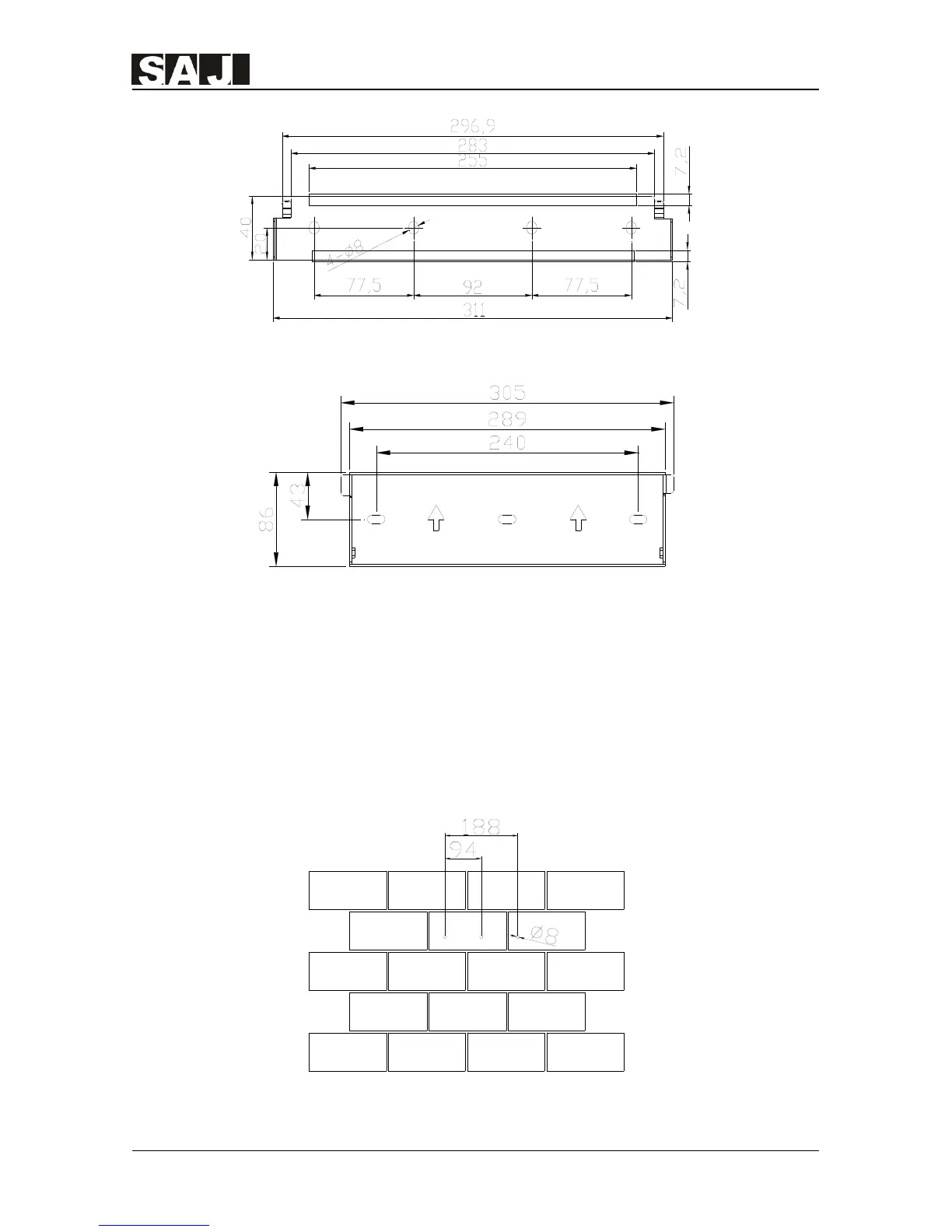

Figure 4.4 Dimensions of rear panel of Sununo Plus 2K/2.5K/3K/3.6K
Figure 4.5 Dimensions of rear panel of Sununo Plus 3K-M/4K-M/5K-M/6K-M
4.4.2 Drill Holes and Place the Expansion Tubes
According to the guides, drill 3 holes in the wall (in conformity with position
marked in Figure 4.6, 4.7,4.8), and then place expansion tubes in the holes using a
rubber mallet.
Figure 4.6 Drill holes’ dimensions of Sununo Plus 1K/1.5K
