SAJ Suntrio Plus Series - User Manual

SAJ Suntrio Plus Series

64 pages

To Next Page

To Next Page

Loading...

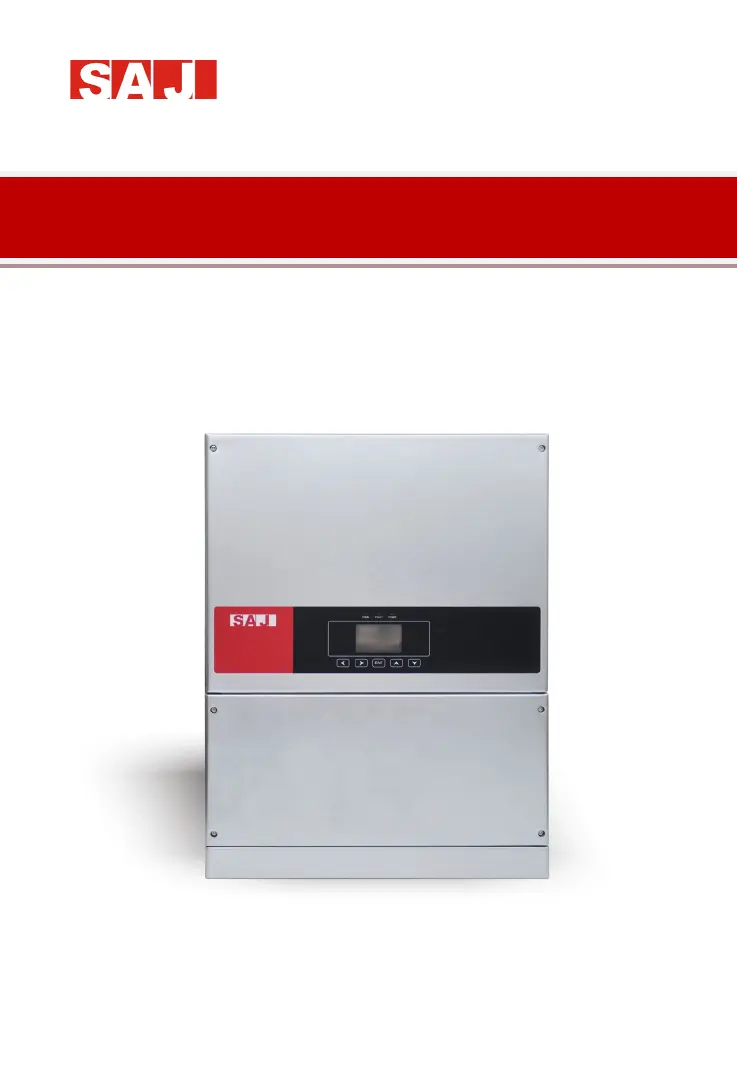

Suntrio Plus Series

-

0 -

User Manual

SAJ Solar Inverter

Suntrio Plus Series

www.saj-electric.com

Table of Contents

Questions and Answers

J
Jesse NelsonAug 15, 2025
What to do if my SAJ Suntrio Plus shows an AC Voltage Error?
- D
  Donna HawkinsAug 16, 2025
  If your SAJ Inverter displays an AC Voltage Error, first check the connection between the inverter and the grid. Then, verify the on-grid standard settings of the inverter. If the grid voltage exceeds local regulations, contact your local grid workers to see if they can adjust the voltage at the feed point or change the regulated voltage value. If the grid voltage is within the regulated range and the error persists, contact your distributor or SAJ.
M
Michael LoweAug 19, 2025
Why does my SAJ Suntrio Plus show a Temperature High Error?
- L
  Lynn JohnstonAug 19, 2025
  If your SAJ Inverter shows a Temperature High Error, check if the radiator is blocked and ensure the inverter is operating within an appropriate temperature range. If both of these are normal, contact your distributor or SAJ.
T
timothywilliamsAug 21, 2025
What to do if SAJ Suntrio Plus shows Relay Error?
- B
  Barbara JacksonAug 21, 2025
  If your SAJ Inverter frequently shows a Relay Error, contact your distributor or SAJ.
R
Russell WashingtonAug 25, 2025
What to do if SAJ Inverter displays Storer Error?
- K
  karen08Aug 26, 2025
  If your SAJ Inverter frequently shows a Storer Error, contact your distributor or SAJ.
T
tracygreenAug 27, 2025
What to do if SAJ Suntrio Plus displays GFCI Device Error?
- S
  Samantha JohnsonAug 27, 2025
  If your SAJ Inverter frequently shows a GFCI Device Error, contact your distributor or SAJ.
D
Dennis MortonAug 30, 2025
What to do if SAJ Inverter displays DCI Device Error?
- L
  Linda SuarezAug 31, 2025
  If your SAJ Inverter frequently shows a DCI Device Error, contact your distributor or SAJ.
G
gordonwilliamSep 3, 2025
What to do if SAJ Inverter displays Current Sensor Error?
- H
  Heather ContrerasSep 3, 2025
  If your SAJ Inverter frequently shows a Current Sensor Error, contact your distributor or SAJ.
J
Jason ArmstrongSep 6, 2025
Why is my SAJ Inverter showing a Temperature High Error?
- R
  Randall SteeleSep 6, 2025
  If the Temperature High Error occurs on your SAJ Inverter, check if the radiator is blocked and ensure the inverter is operating within a suitable temperature range. If these checks are normal, contact your distributor or SAJ.
M
Mrs. Sarah WestSep 9, 2025
What to do if SAJ Inverter shows AC Voltage Error?
- T
  Thomas OlsonSep 9, 2025
  If you're encountering an AC Voltage Error with your SAJ Inverter, first, check the connection between the inverter and the grid. Then, verify the on-grid standards settings of the inverter. If the grid voltage exceeds local regulations, consult with local grid workers to see if they can adjust the voltage at the feed point or modify the regulated voltage value.
C
christina93Sep 12, 2025
Why does my SAJ Suntrio Plus show Temperature High Error?
- B
  Brian ClaytonSep 12, 2025
  If you frequently encounter a Temperature High Error with your SAJ inverter, check if the radiator is blocked and ensure the inverter is operating within an appropriate temperature range. If these checks are normal, it is recommended to contact your distributor or phone SAJ.

SAJ Suntrio Plus Series Specifications

General

Number of MPPTs	2
Protection Degree	IP65
Cooling Method	Natural convection
Nominal AC Voltage	400V
Output Voltage	230V/400V
Frequency Range	50Hz/60Hz
Operating Temperature Range	-25°C ~ +60°C
Humidity Range	0-100%
Communication	RS485, Wi-Fi, GPRS (optional)
Model	Suntrio Plus 4K/5K/6K/8K/10K

Summary

Chapter 1 Safety Precautions

1.2 Safety Instructions

Provides general safety warnings, including DANGER, WARNING, CAUTION, and NOTICE levels.

1.3 Target Group

Chapter 2 Preparation

2.1 Safety Instructions

Details safety precautions related to electrical shock, high voltage, and environmental conditions.

Chapter 3 Product Information

3.4 Datasheet

Presents detailed technical specifications for various Suntrio Plus inverter models.

Chapter 4 Instructions for installation

4.1 Safety Instructions

Highlights dangers related to fire, electricity shock during installation.

4.2 Pre-installation Check

4.3 The Determination of the Installation Method and Position

Guides on proper mounting methods and ideal installation locations for optimal performance.

4.4 Mounting Procedure

Chapter 5 Electrical Connection

5.1 Safety Instruction for Hot-line Job

Emphasizes safety procedures and protective equipment for electrical connections.

5.2 Specifications for Electrical Interface

5.3 AC Side Connection

5.4 DC Side Connection

5.5 Communication Connection

Chapter 6 Debugging Instructions

6.1 Introduction of Human-Computer Interface

6.2 First Run Setup and Operation

Guides through initial setup, parameters, self-tests, and monitoring operations.

6.3 Monitoring Operation

Explains how to monitor inverter status using Wi-Fi, Ethernet, GPRS, and RS485 interfaces.

Chapter 7 Fault Code and Troubleshooting

Fault Code and Troubleshooting Methods

Lists error codes and provides general troubleshooting steps for common inverter faults.

SAJ Warranty Policy

Standard Warranty Period

Warranty Conditions and Claims
