Chapter 6 Debugging Instructions
6.1 Introduction of Human-Computer Interface

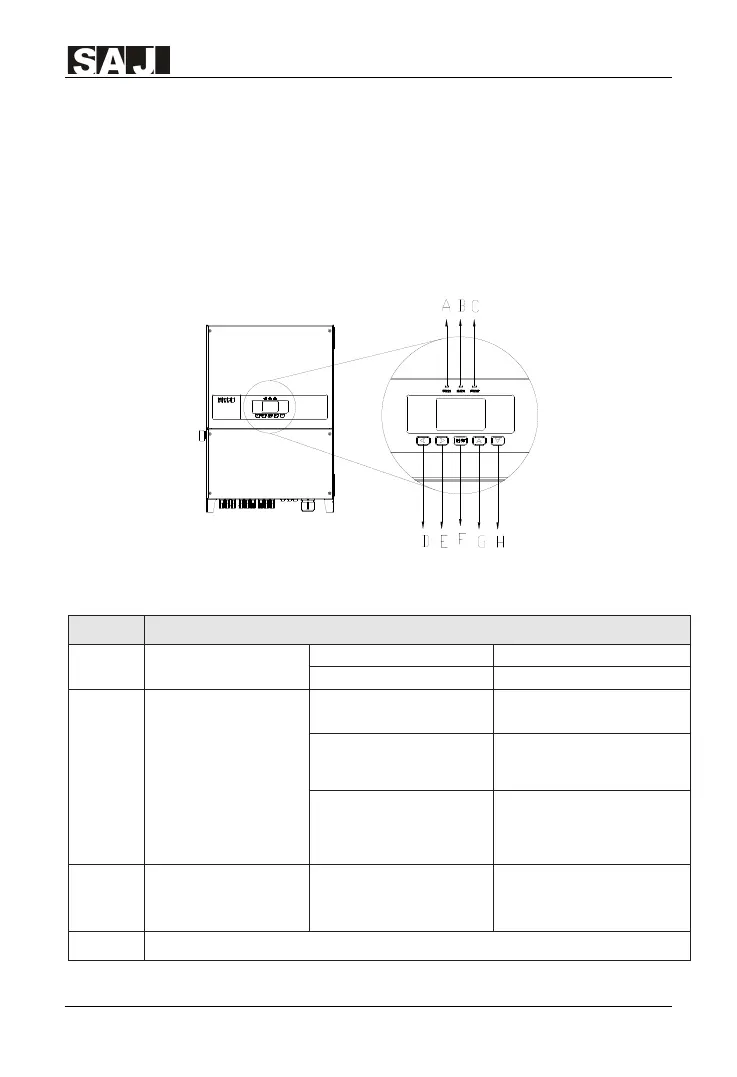

Figure 6.1 Human-Computer Interface
Object
Description
A
Communication
status
Yellow light blinking
Sending data
Blue light blinking
Receiving data
B Inverter status
Solid red
The inverter has
detected fault
Solid green
The inverter is on-grid
and running
Off
The inverter is in
initializing state or count
downing for grid-tie
C Power status Solid yellow
The power system of
inverter is operating
normally
D
◀
Moves the cursor to the left
