Suntrio Plus Series
-
19
-
4.4 Mounting Procedure
4.4.1 Mark the Positions of the Drill Holes of the Rear Panel
The mounting positions should be marked as shown in Figure 4.3, Figure 4.4
and Figure 4.5.
508.5
348
120
400
457

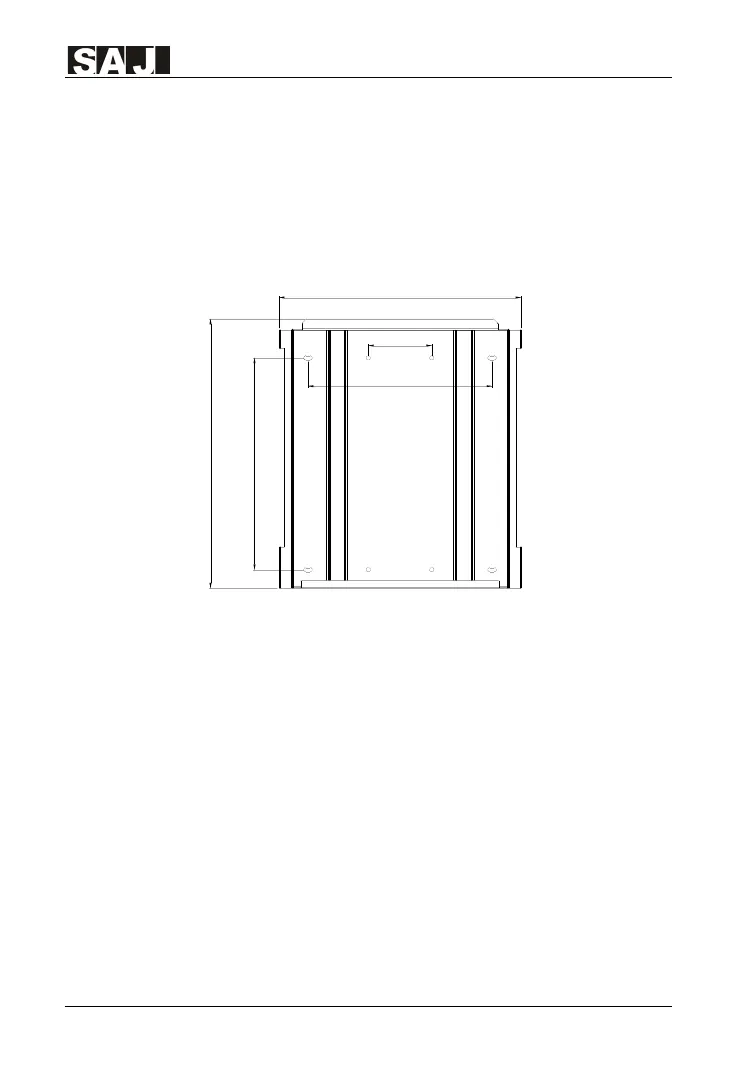

Figure 4.3 Dimensions of rear panel Suntrio Plus 12K/15K/17K/20K
