Suntrio Plus Series
-
20
-
538
200.4
279.6
498
388
120
35
400

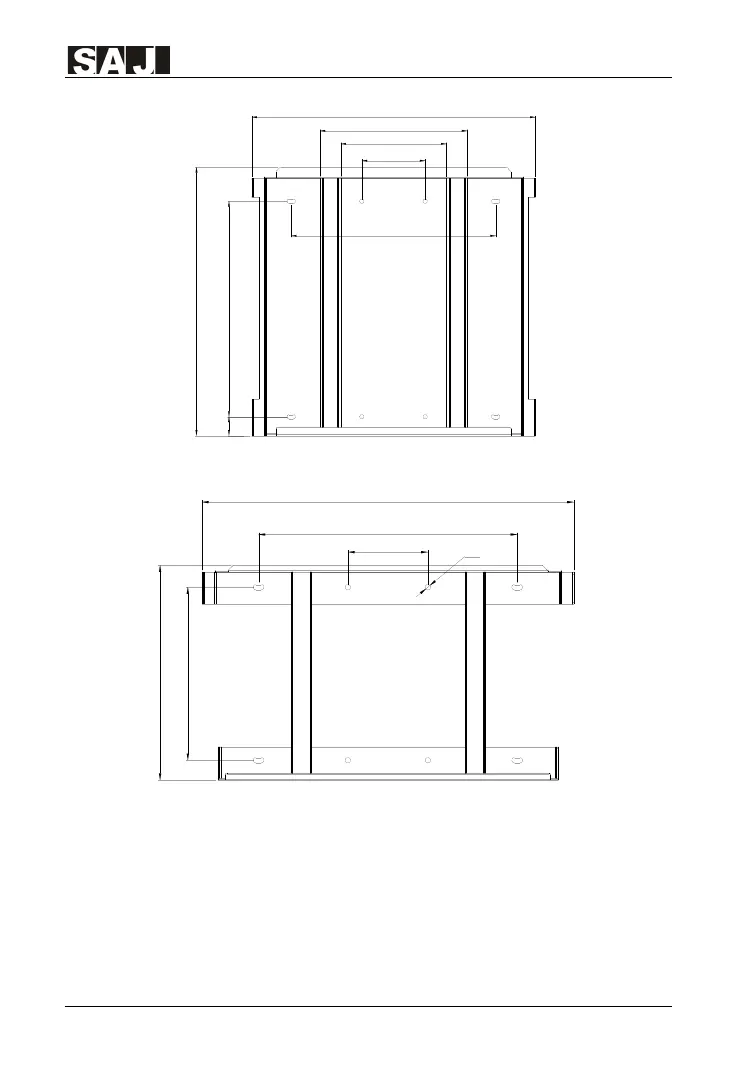

Figure 4.4 Dimensions of rear panel Suntrio Plus 25K/30K/33K
558
324
120
388
∅
8
261
Figure 4.5 Dimensions of rear panel Suntrio Plus 40K/50K/60K
4.4.2 Drill Holes and Place the Expansion Tubes
Follow the given guides, drill 3 holes in the wall (in conformity with position
marked in Figure 4.6, Figure 4.7 and Figure 4.8), and then place expansion
tubes in the holes using a rubber mallet.
