Sununo Plus Series
-23-
4.4.4 Mount the Inverter

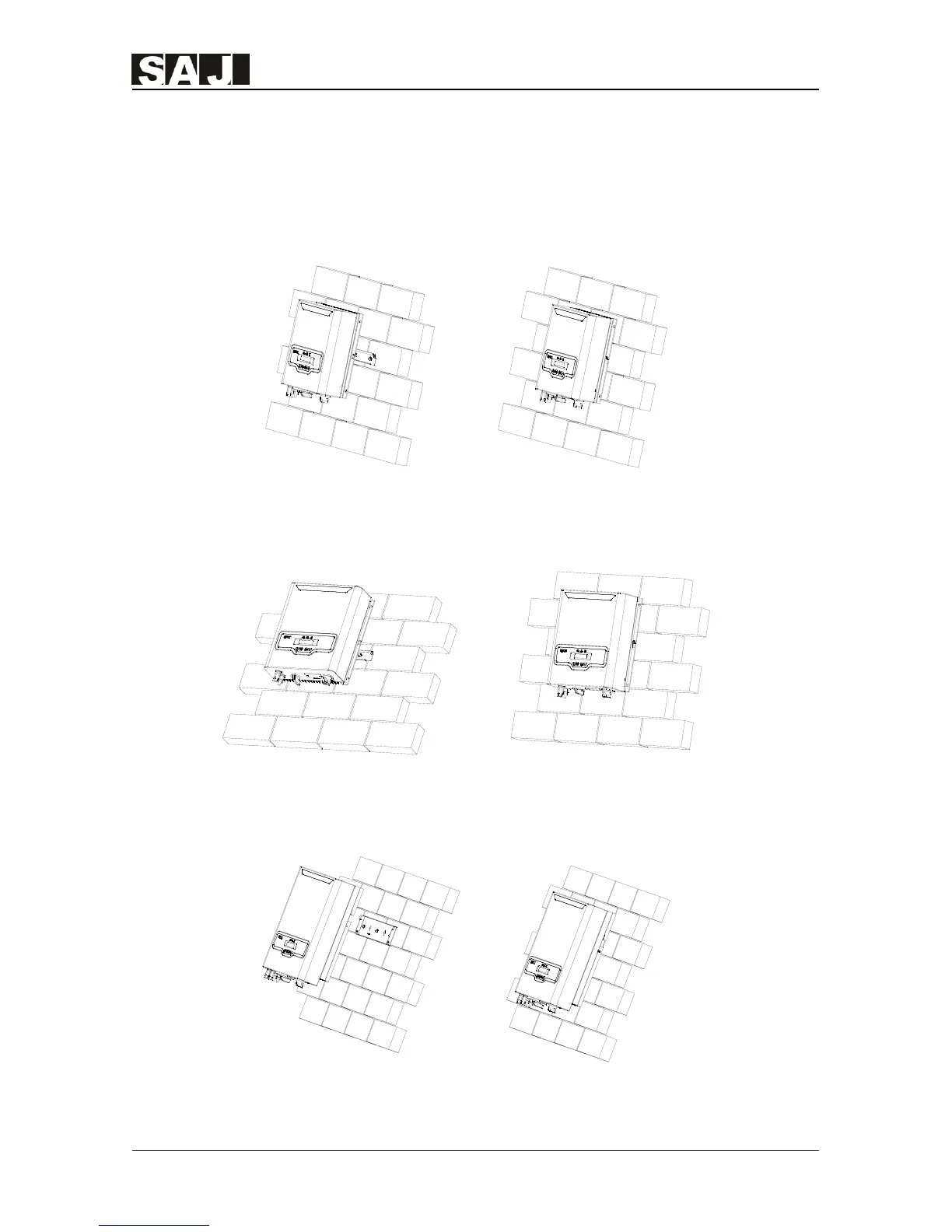

Carefully mount the inverter to the rear panel as shown in Figure 4.12, Figure
4.13,Figure 4.14. Make sure that the rear part of the equipment is closely
mounted to the rear panel.
Figure 4.12 Mount Sununo Plus 1K/1.5K inverter
Figure 4.13 Mount Sununo Plus 2K/2.5K/3K/3.6K inverter
Figure 4.14 Mount Sununo Plus 3K-M/4K-M/5K-M/6K-M inverter
