Chapter 2 Installation

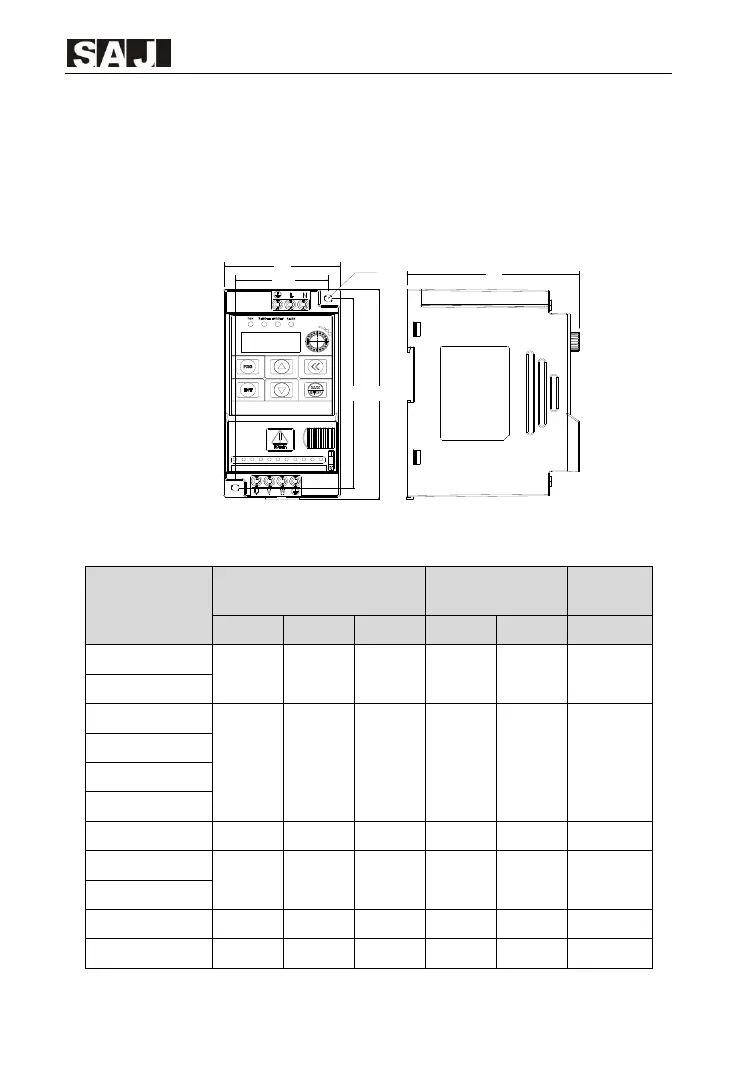

2.1 Overall structural drawing（unit：mm）
W
W1
d
D
H
H1
Figure 2-1-1 Outline dimension diagram
AC Drive Model
Overall Dimensions
Mounting Hole
Mounting
Hole
Diameter
H
W
D
H1
W1
d
VM600-2SR75
134
69
104
123
55
5
VM600-2S1R5
VM600-2S2R2
142
72
116
130
59
5
VM600-4TR75
VM600-4T1R5
VM600-4T2R2
VM600-4T004
196
95
132
179
79
5.5
VM600-4T5R5
225
115
154
208
99
5.5
VM600-4T7R5
VM600-4T011
-
-
-
-
-
-
VM600-4T015
-
-
-
-
-
-
Table 2-1-1 outline dimension
