SAJ VM600 User Manual

VM600
- 10 -
2.2 Terminal connection
+10V
AI
GND
DI1
DI2
DI3
DI4
Forward
Reverse
Fault reseting
Multi-speed terminal 1
RC
RA
Relay output
S+
S-
RS485
communication
terminal
I
AI
V
R/L
S
T/N
U
V
W
PE
MCCB
Power input
terminal
L1
L2
L3
Out ternimal
PE
RJ45
Analog input terminal

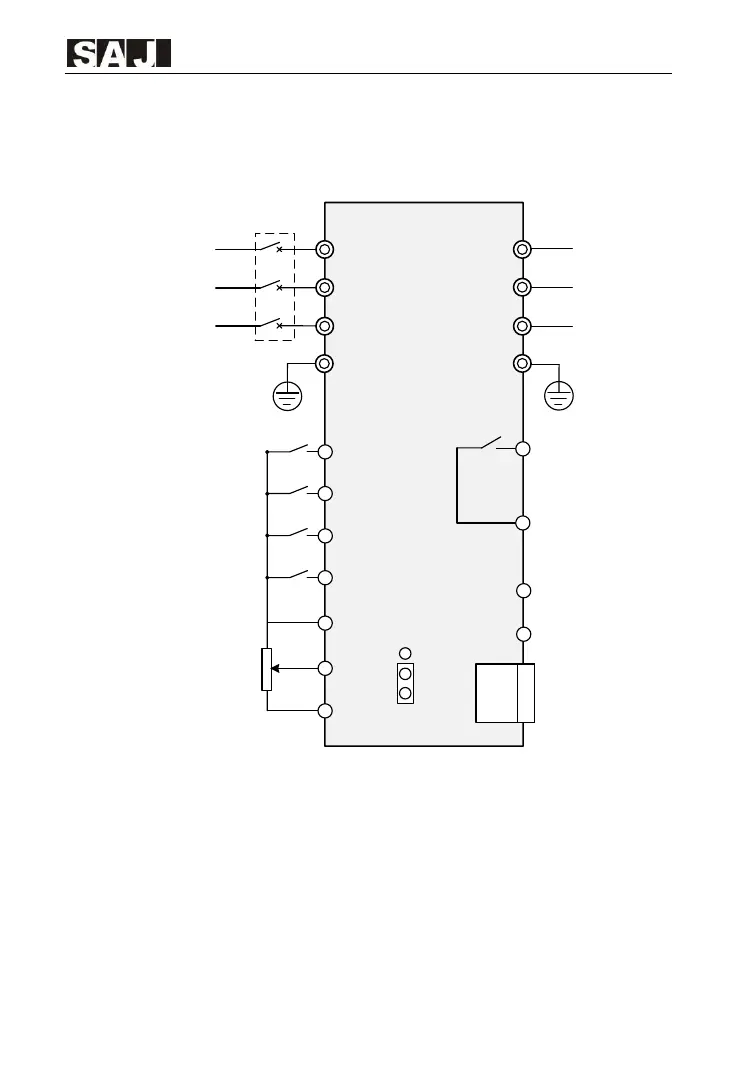

Figure 2-2-1 Terminal connection
