SAKOBS SB2122 - Product Diagram; Main Unit Components and Indicators

6

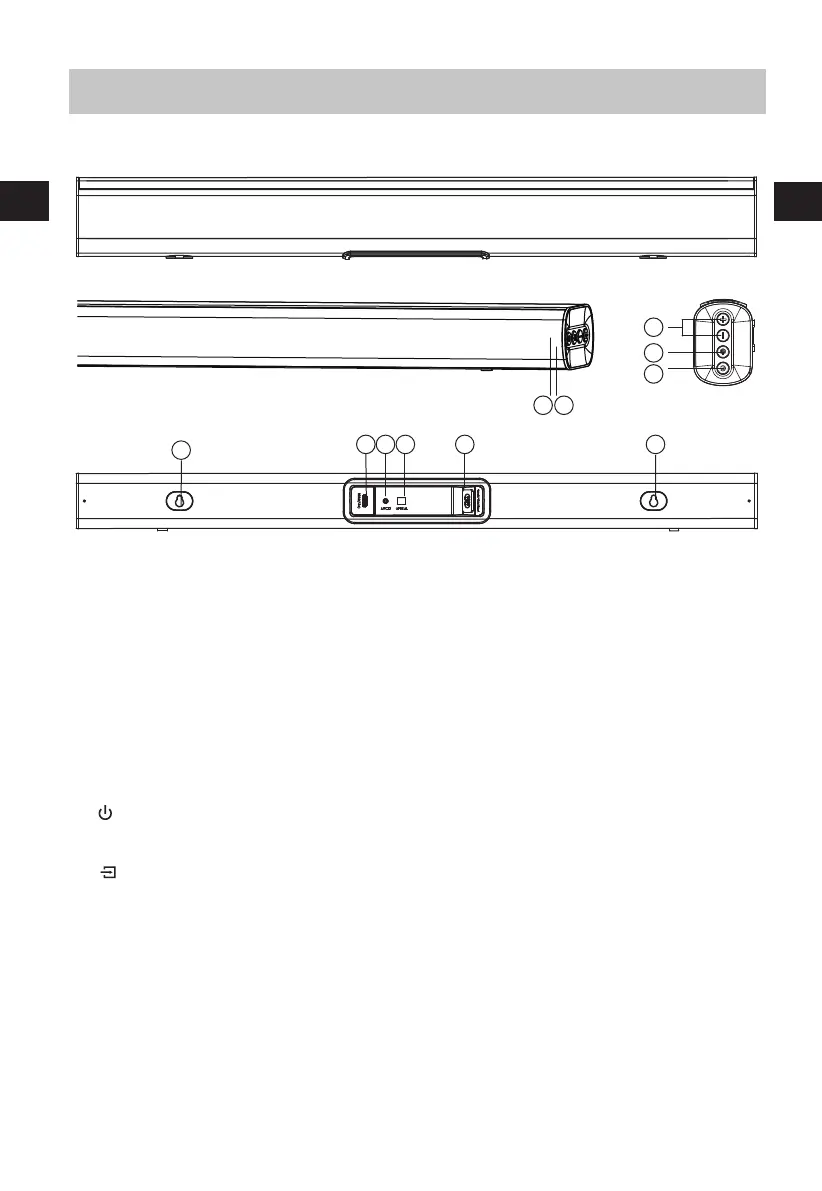

Product Diagram
Main Unit
1 Remote Control Sensor
Receive signal from the remote control.
2
•
Red : In STANDBY mode.
•
Optical mode.
•
Blue : In Bluetooth mode.
•
Yellow : In HDMI ARC mode.
•
6
Install the wall mounting screws into
the wall mount of the unit.
3
( ON/OFF ) Button
5 +/- ( Vol+/Vol- ) Buttons
Increase/decrease the volume level.
4 ( SOURCE ) Button
Select the play mode.
7 AC Socket
Connect to the power supply.
8
10
HDMI ARC Socket
Connect to a TV via HDMI cable.
Socket
Connect to an external audio device.
9
OPTICAL Socket
Connect to an optical audio output on the TV.
White : In
AUX mode.
EN
10
1 2
3
4
5
7
6
6
9
8
Green : In
LED Indicators
Switch the unit between ON and STANDBY mode.
Wall Mount
AUX
EN
