Salamander RP55PS - Typical Installations Right Pump Universal

10
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Right pump universal to
shower columns or steam
shower cabinets
These systems will be Negative Head where the
pipework runs above the tank.

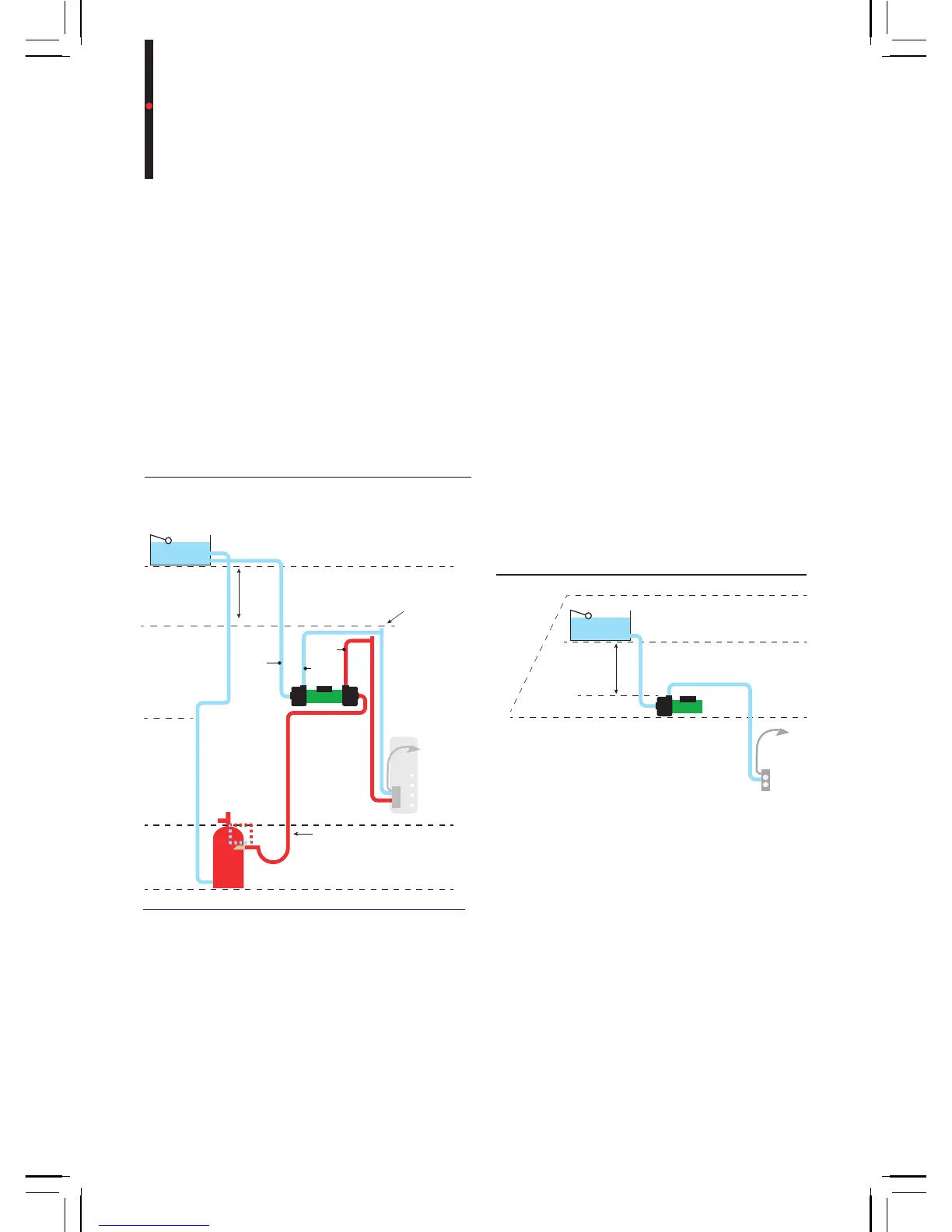

Figure 12: Right pump universal to a shower
column
Typical installations – Right pump
universal
Vent and other
services
No Stop Essex Flange
MUST be used with an
anti gravity loop at least
250mm in depth
Usable capacity
minimum 50 gallons
per bathroom
Outlets
Inlet
C
H
Air vents, both
hot and cold
Min
600mm
MAX
60°C
Fig 9 ESP CPV pumps to shower or steam
OLD STYLE DO NOT USED
Vent and
other
services
Inlet
Best method is the no
stop Essex Flange with
an anti-gravity loop at
least 400mm in depth
Cold water storage
HC
Air vents,
both hot
and cold
MAX
60˚C
600mm or
less possible
negative head
Outlet
Outlet
Usable capacity
minimum 50 gallons
per bathroom
Single-ended Right Universal
pump
The following systems are best
accommodated by using a single-ended
Right Universal pump which is complete
with a pressure vessel and electronic system
protection.
Right universal pump to boost tank fed
supplies to instantaneous electric showers
and water heaters.
Figure 13: Instantaneous electric showers
and water heaters
Tank fed, pressurised cylinder or
combination boiler system with single-ended
Right Universal pump to boost the hot
supply water pressure and cold water mains
supplies ‘cold’ to shower, bath, basin and
toilet.
600mm or
less possible
negative head
Usable capacity
minimum 50 gallons
per bathroom
C
Fig 10 ESP CPV single
OLD STYLE DO NOT USED
Right pump universal to a shower cabinet.
Shower columns and steam shower cabinets
in larger whole house systems or systems with
multiple bathrooms will be best served by two
single-ended Right pump universal.
