5
Pre-installation
Installation
PumpWise guidelines
General specification
Trouble shooting
PumpWise and warranty
Multiple cold water storage tanks MUST be
linked in 28mm pipe work with the bottoms
of the tanks at the same level.

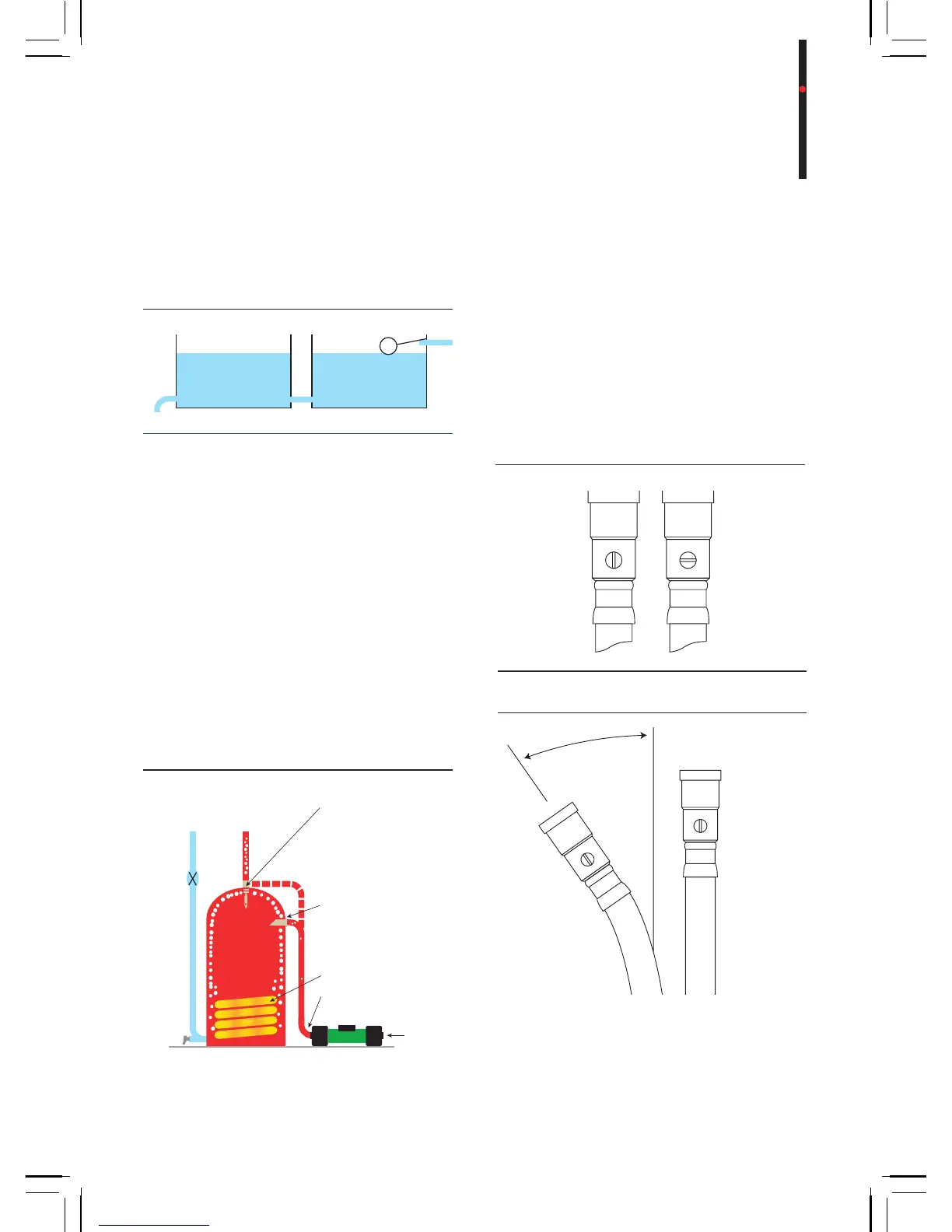

Figure 2: Linked cold water tanks
To Pump
To Cylinder
Outlet to
cylinder
Inlet
Bottom of cold
tank must be
cleared of debris
Outlet to pump
Fig 1
OLD STYLE DO NOT USED
Fig 2
2.3 Hot water requirements
The stored hot water temperature must not
exceed 60ºC (see page 17, Stored hot water
temperature).
The hot water supply to the pump must be
via a Salamander approved method:
The best hot connection from the cylinder
is either
• A 3⁄4” NO STOP ESSEX FLANGE. See
Figure 3 or
• Alternatively a Salamander S flange or
other approved top entry flanges. See
page 15/16.
Figure 3: Hot water supply method
Pump at the base of cylinder
Outlets
OR ALTERNATIVELY
22mm No Stop Essex
flange with 76mm dip
pipe and birds beak cut
end to limit air being
drawn into the pump
Indirect coil
Pump inlet
Fig 3a
Pump inlet
A Salamander S flange or
one of the 22mm approved
top entry flanges listed
on page 15-16
MAX
60˚C
3. Anti-vibration couplers
(Hoses)
The anti-vibration (AV) couplers are designed
to limit the transfer of pump vibration to the
associated pipe work. All Salamander AV
couplers are ¾” BSP x 22mm push fit with
built-in isolating valves. Note: the RP50PT
and RP50PS are supplied with 15mm
couplers with isolating valves on the inlets
and outlets.
Figure 4: Isolating valves
35°
Isolating valve
shown in
‘ON’ position
Isolating valve
shown in
‘OFF’ position
35°
Do not bend hoses
more than 35°
Do not twist or
kink the hose
Figure 5: Couplers
Ideally the AV couplers should be straight,
but they must NOT be twisted or bent more
than 35º (this invalidates the warranty). See
Figure 5 above.
