12. Using the white PVC handle, gently insert the entire frame/handle assembly into the
riser/chamber assembly. Make sure that the wide part of the sub-assembly is at right
angles to the inlet and outlet pipes.
13. Tuck the remaining lamp cable into the top of the riser pipe. Tighten all cord grips.
14. Put the junction box back onto the riser pipe. Tighten the setscrew.
15. Turn on the power to the UV Unit.
16. Check the green indicator light on the lid of the junction box for proper operation.
17. If the green indicator light is on, the installation procedure is finished.
TO CLEAN THE TEFLON® SHEATH AND DISINFECTION SUB-ASSEMBLY
1. Use a soft sponge and detergent to clean the surfaces, especially the Teflon® sheath.
Be careful when cleaning the Teflon® sheath, as it is Very Fragile.
2. Use a soft cloth with isopropyl alcohol to remove difficult stains such as finger prints
or other films from the Teflon® sheath.

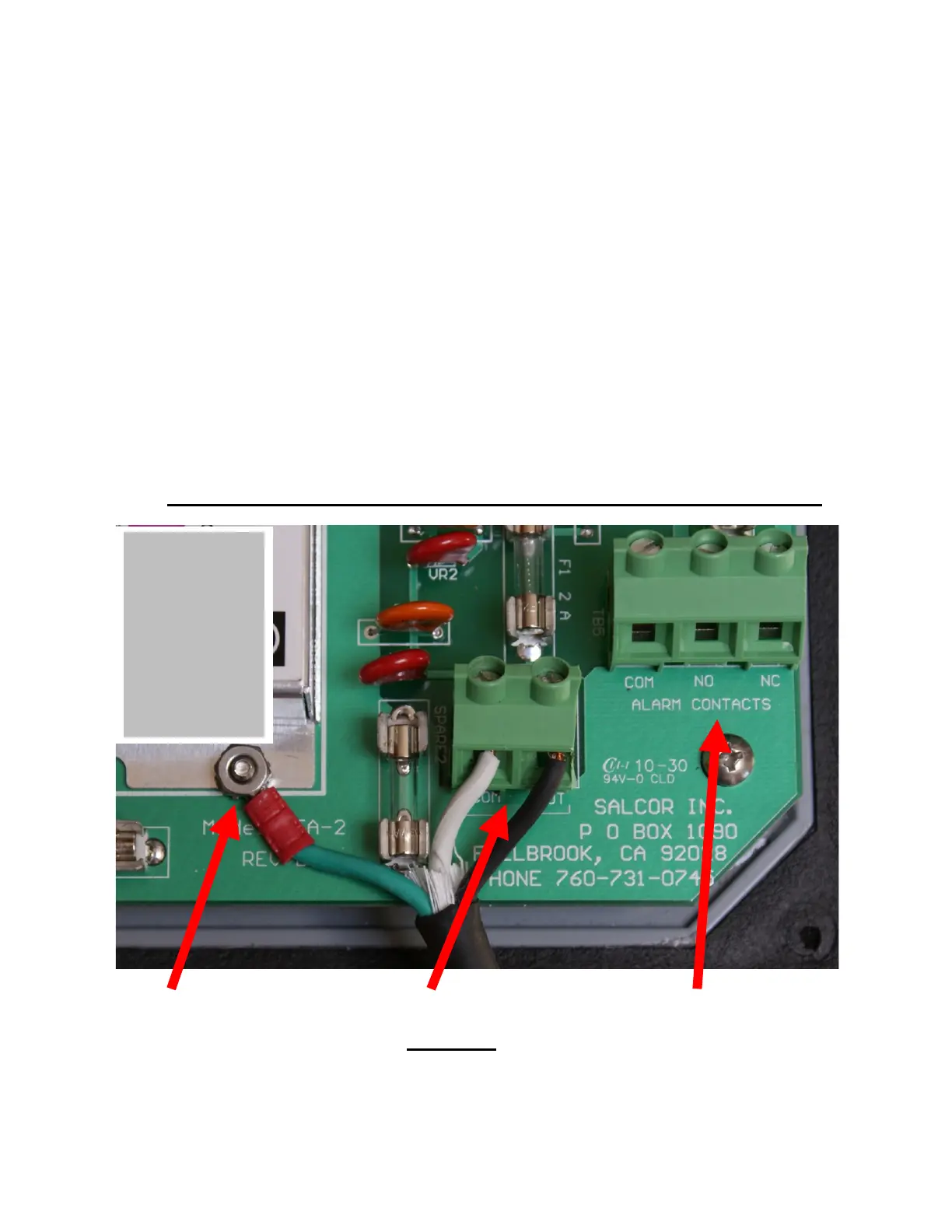

V. ELECTRICAL CONNECTIONS ON THE ALARM BOARD
Grounding Post Power Inlet Terminal Block Alarm Wire Terminal Block
