FlexMCB
SALDA UAB reserves the right to perform changes without prior notice.
www.salda.lt
5
1. DESCRIPTION
The “FLEX MCB” control panel is used for control of ventilation units with MCB, MiniMCB control boards.
• Program the unit operation modes for one week.
• Set the temperature for supply or extracted air flow.
• Set fan motor rotation speed.
• Indication for the plate heat exchanger’s antifreeze protection.
• Fault signal indication
• Indication of the temperatures, humidity and pressure for ambient, outdoors room, exhaust and supply air.
• Automatic recognition of the controlled unit.
2. TECHNICAL DATA
PARAMETER UNITS VALUE
Mounting Surface
Voltage [ VDC ] 15-30
Data transmition RS 485
Cable length [ m ] 13
Dimensions (WxHxD) [ mm ] 86x86x16
Safety class IP20
Ambient temperature [
o
C ] 10-30(50*)
Ambient humidity [ % ] <90

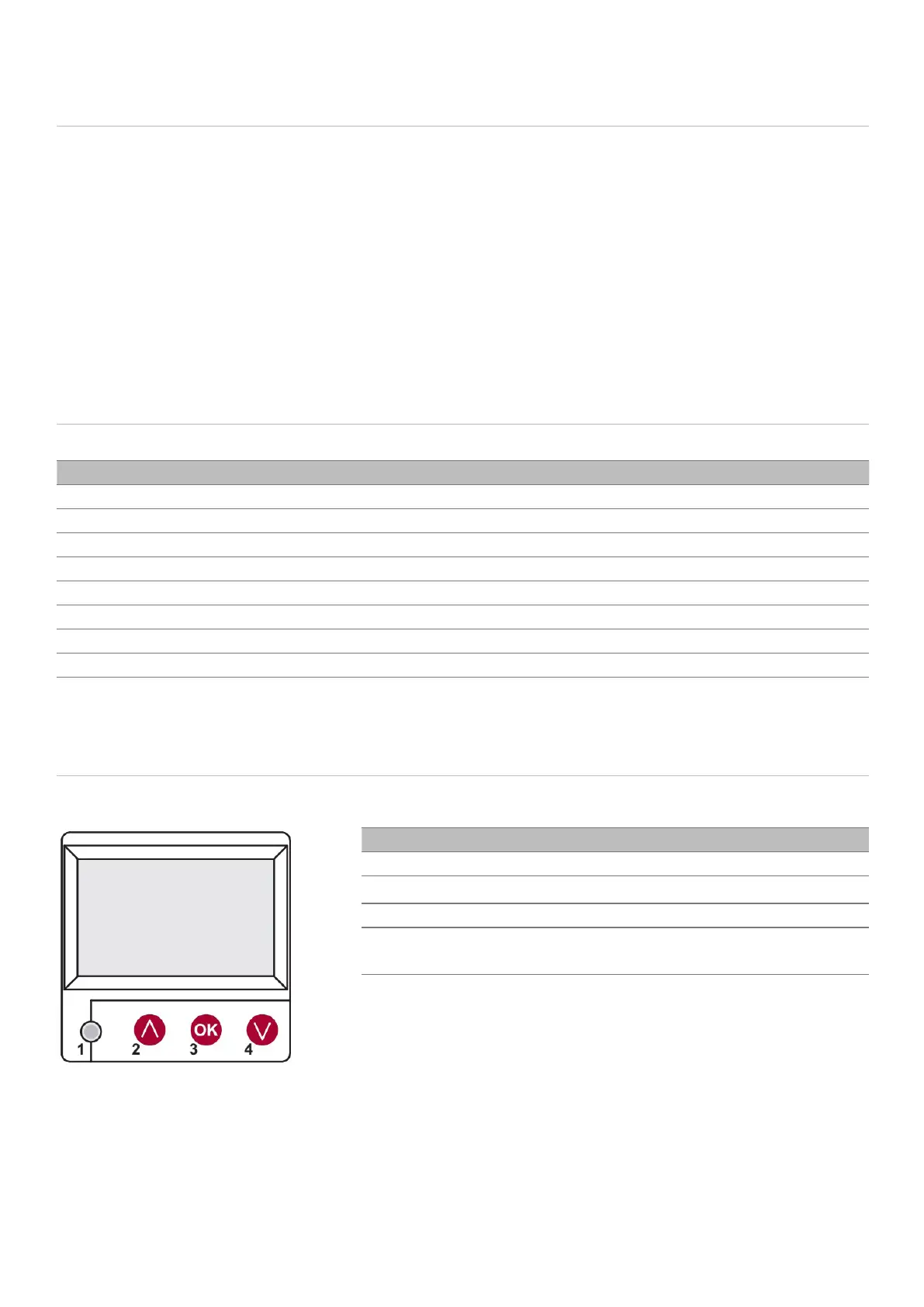

3. FUNCTIONALITY OF BUTTONS
NO LABEL
1 “Fast Button – used for control of the selected function.
2
>
“– used for increasing the setting values or for moving a line up.
3 “OK” – used for confrmation of the selected line or of the set value.
4
>
“– used for decreasing the setting values or for moving a line
down.
