FlexMCB
SALDA UAB reserves the right to perform changes without prior notice.
www.salda.lt
6

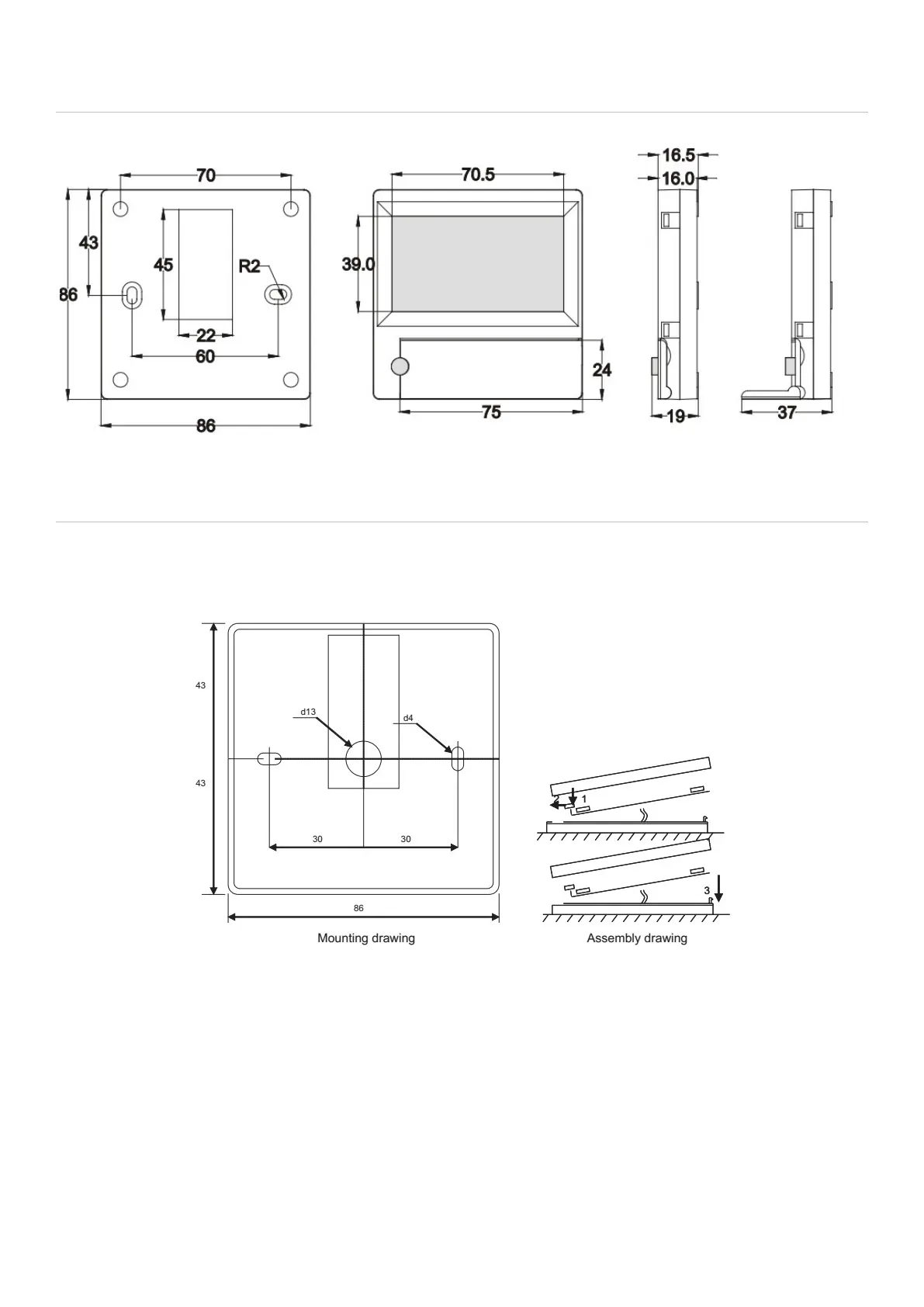

4. DIMENSIONS
5. MOUNTING
Surface mounting, opening is prepared in the wall for the connection cable D13 and two holes for installation of the box bot-
tom.
Attach the box bottom cover to the wall leaving approx. 3 cm of cable from the surface. Put the battery to the socket at the
board, polarity “+” outwards, connect the plug to the board and close the box cover (see the drawing) by attaching the left side
(1–2) and then gently press the right side (3). Connect the other cable plug to the socket of the recuperator.
