FlexMCB
SALDA
UAB reserves the right to perform changes without prior notice.
www
.salda.lt
8

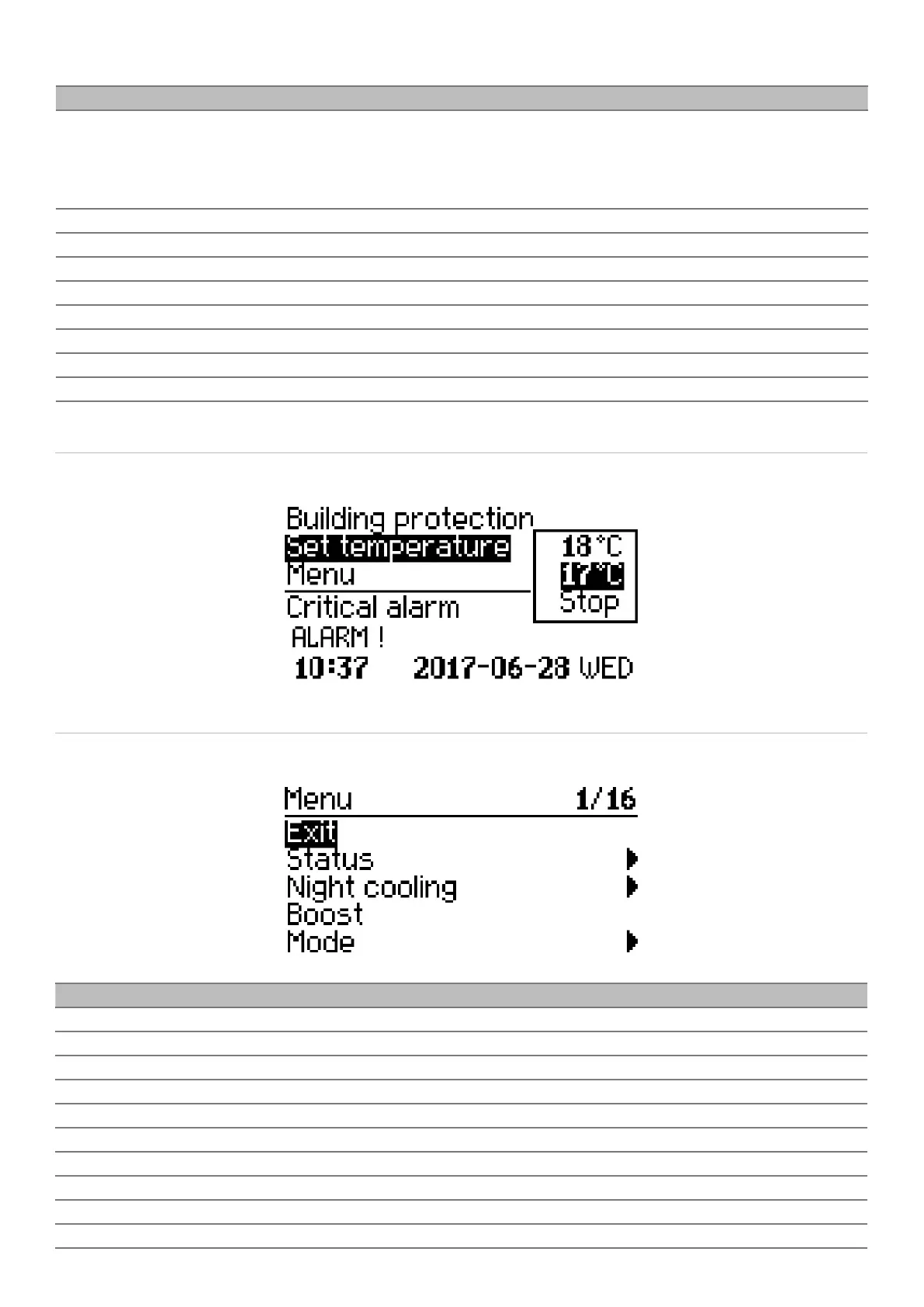

7.2. Setpoint ()
Main window » Setpoint
7.3. Menu
Main window » Menu
NO
.
LABEL
1
Status
2
Night cooling
3
Boost
4
Mode
5
F
ilters
6
Heating season
7
Date & time
8
W
eek
ly schedule
9
Holiday schedule
10
Alarms
NO
.
LABEL
DESCRIPTION
1
System mode
Options:
• Standby
• Building protection
• Economy
• Comfort
Set temperature
[ °C ]
Menu
2
Extract air
[ °C ]
3
Outsdoor air
[ °C ]
4
Supply air
[ °C ]
5
Exhaust air
[ °C ]
6
Standby blocking time left this day
Range: [ 0 .. 500 minutes ]
7
Next event in
Range: [ 0 .. 24 hours ]
7
9
Table of Contents
Default Chapter
2
Table of Contents
2
Air Quality Sensor
2
1 Description
5
2 Technical Data
5
3 Functionality of Buttons
5
4 Dimensions
6
5 Mounting
6
6 Content
7
7 Instruction for Devices with Mcb/Minimcb Boards
7
Main Window
7
Setpoint ()
8
Menu
8
Status
9
Night Cooling
10
Boost
10
Mode
11
Building Protection
11
Comfort
11
Economy
11
Filters
12
Heating Season
12
Date & Time
12
Weekly Schedule
13
Holiday Schedule
13
Alarms
13
Settings
14
Adjuster
14
Airflow
14
Alarms History
14
Other
14
Extract
15
Other
15
Pid
15
Supply
15
Fans Pressure
16
Heat Exchanger
16
Heater
16
Preheater
16
Block Ventilation Control
17
Fans by Temperature
17
Hydraulic Cooler
17
Manual Control
17
Recirculation by Set Point
17
Fans
18
Heater
18
Preheater
18
Hydraulic Cooler
19
Recirculation Damper
19
Bypass
20
Supply / Extract Damper
20
DX Cooler
21
Rotor
21
Fire Damper
22
Other
22
Status
23
Temperature Sensors
23
Fans
24
Fire Damper
24
Hydraulic Cooler
24
Rotor
24
Other
25
Status Indication
25
Version
25
Bypass Damper
26
Heater
26
Preheater
26
DX Cooler
27
Recirculation Damper
27
Sensors
27
Supply / Extract Damper
27
Logout
28
Save Settings
28
Service
28
Air Temperature Control
29
Air Temperature Protection
29
Block Ventilation Control
29
Main
29
Air Filters Protection
30
Fans Speed Switch
30
Fire Protection
30
System Mode Switch
30
Bypass Damper
31
Calibrations
31
Controller Cabinet Heating
31
Cooking Hood
31
CO₂ Reduction Function
31
Pressure
31
Recirculation Damper
31
Fans
32
Fans Protection
32
Fans Speed Control
32
Fans Voltage
32
Dampers
33
Fire Damper
33
Recirculation Damper
33
Supply / Extract Damper
33
Activation
34
Frost Protection
34
Heat Exchanger
34
Type
34
Deactivation
35
Heaters
35
Protections
35
Electrical Heaters Cooling
36
Heater
36
Hydraulic Heaters Protection
36
Preheater
36
Control Position
37
Coolers
37
Digital Inputs
38
External Control
38
Fans Protection
38
Cooler Protection
39
Filters Pressure Relay
39
Fire Damper
39
Heat Exchanger
39
Heater Protection
39
0-10VDC Sensors
40
Air Quality Sensor
40
Preheater Protection
40
Sensors
40
Supply Air
41
Temperature Sensors
41
Exhaust Air
42
Extract Air
42
Hydraulic Heater Water
42
Outdoor Air
42
Communication
43
Controller Cabinet Temperature
43
Hydraulic Cooler Water
43
Hydraulic Preheater Water
43
BMS Port Modbus
44
Internal Port Modbus
44
Passwords
44
Logout
45
Restore Defaults
45
Save Settings
45
About
45
8 Recycling
45
