27

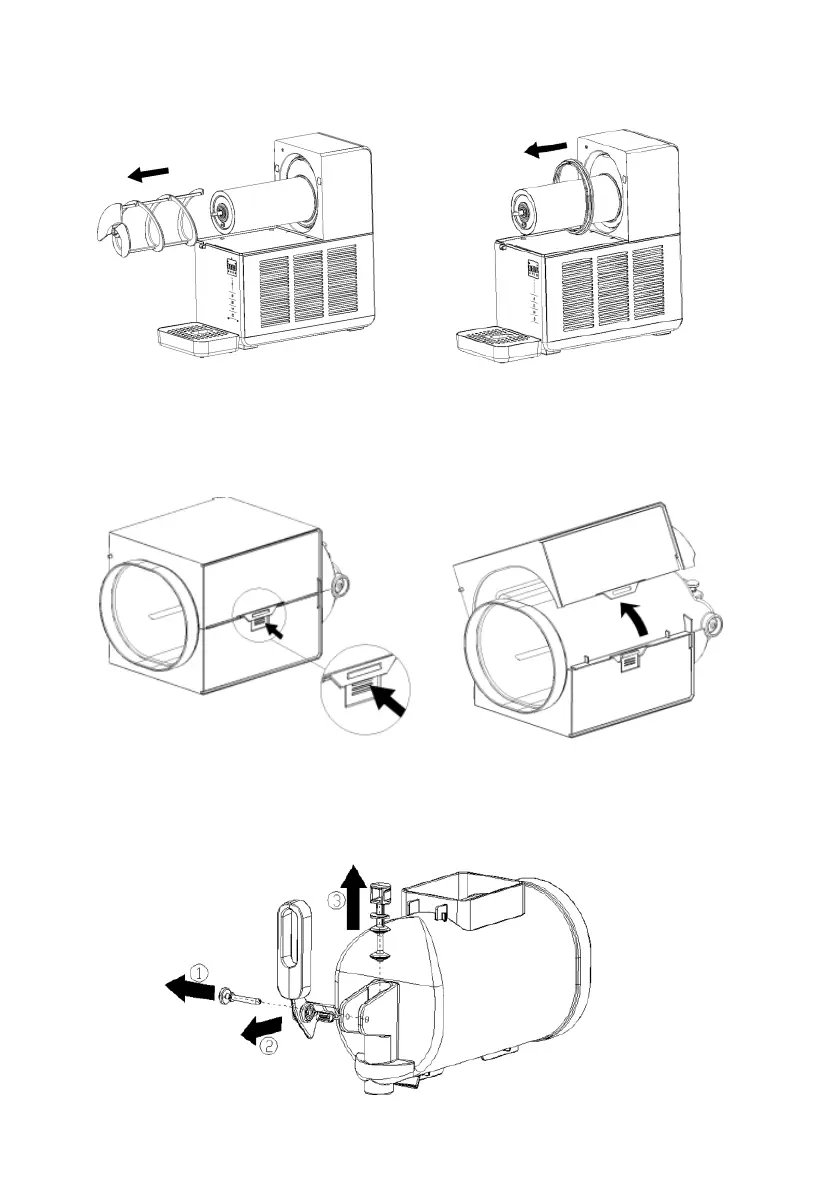

3. Remove the mixing blade from the evaporator (as shown in Figure 6), and then remove
the sealing ring of the loading barrel from the base (as shown in Figure 7).
Fig.6
Fig.8
Fig.7
Fig.9
Fig.10
4. Press and hold the buckle of the barrel cover (as shown in Figure 8), and remove the
left and right covers of the barrel (as shown in Figure 9).
5. Disassemble the discharge faucet in the order shown (as shown in Figure 10).
