30

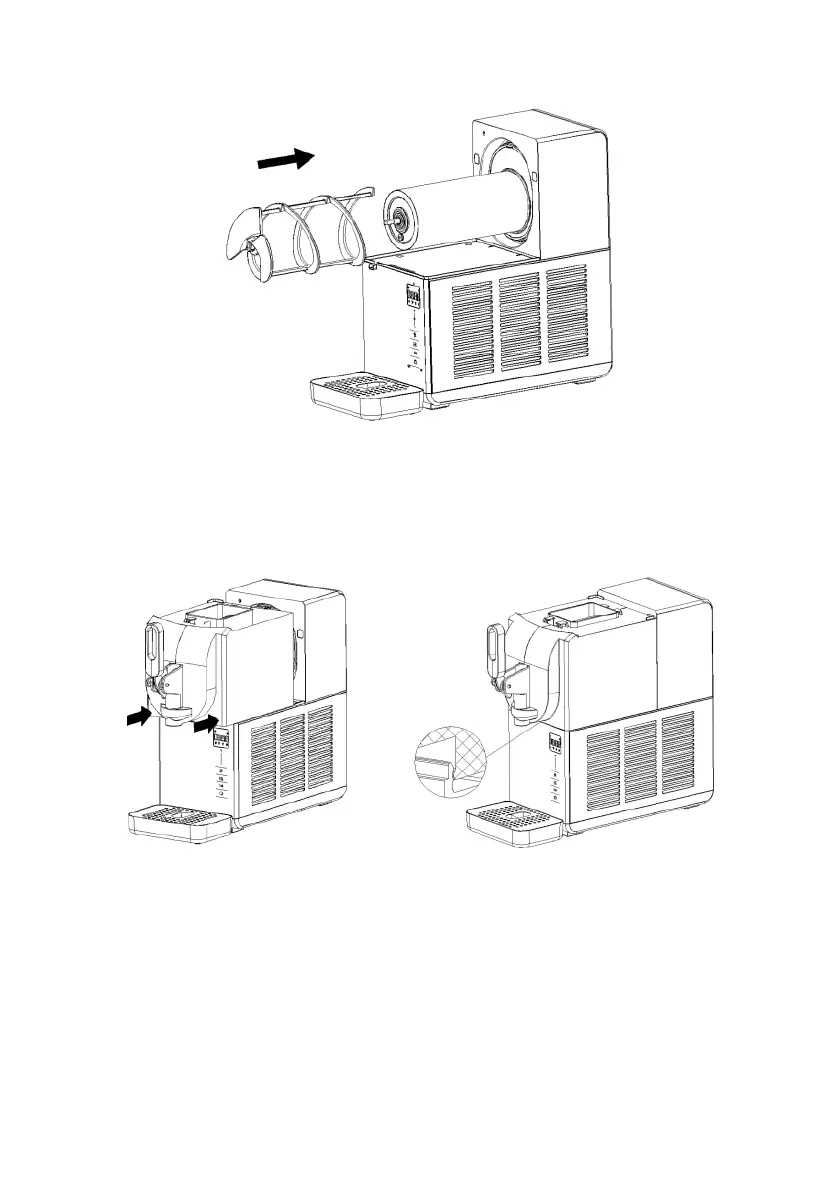

5. The mixing blade are installed on the evaporator, and the shaft hole passes through
the mixing shaft (as shown in Figure 17).
Fig.17
Fig.18 Fig.19
6. Align the assembled loading barrel component with the box sliding groove and push
it towards the rear wall. The correct operation is to push the water tank component at
the bottom left and right corners of the loading barrel, which is more convenient (as
shown in Figure 18), ensuring that it is completely installed on the sealing ring, and that
its lower hook is eectively stuck inside the box (as shown in Figure 19).
MAINTENANCE
Caution: The plug must be removed before cleaning to avoid electric shock.
1. Clean the water tank components, sealing rings, etc. in a timely manner after use to
avoid odor.
2. Take out the removable bowl, clean it with a dampened soft cloth.
3. Wipe the transparent lid with a dampened cloth
4. Remove the dirty on the body or other places with a dampened cloth, and do not
To Next Page
