29

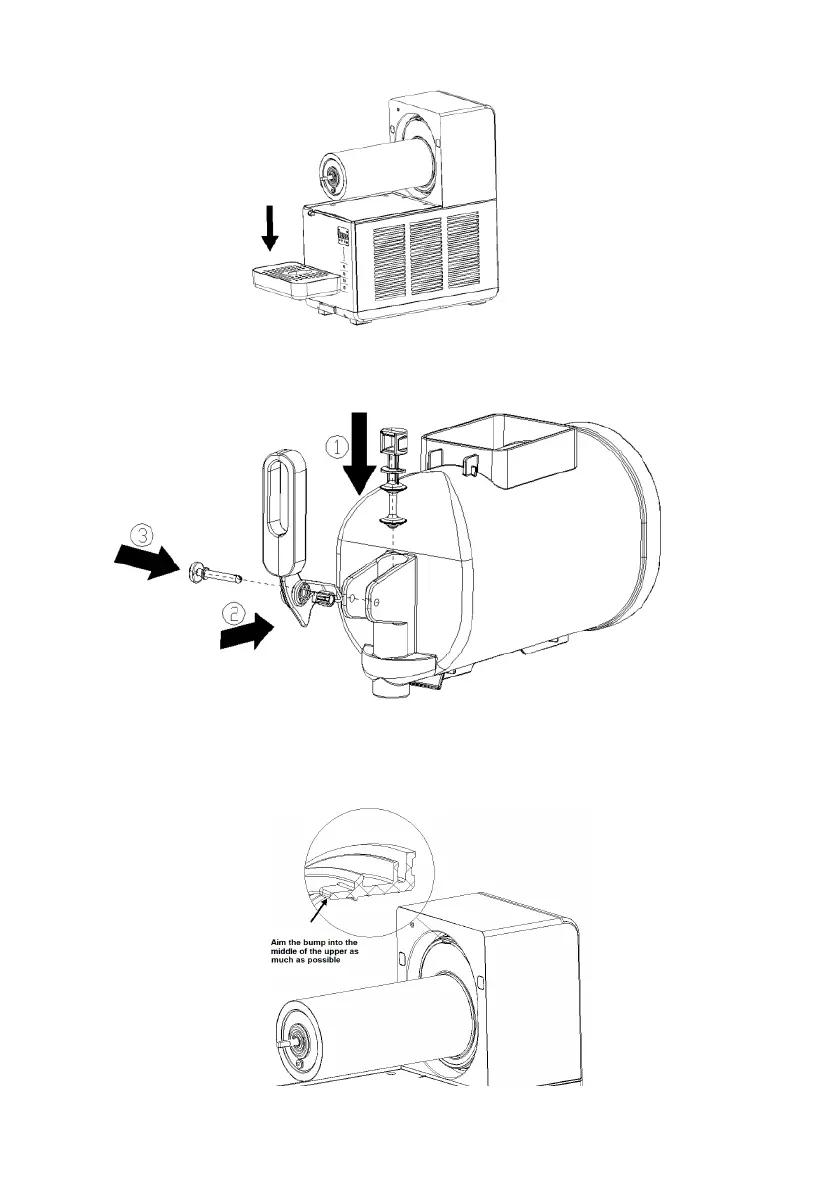

2. Insert the drain tray downwards into the drain tray holder (as shown in Figure 14).
Fig.14
Fig.15
Fig.16
3. Reassemble the discharge faucet in the opposite order of disassembly (as shown in
Figure 15).
4. Install the sealing ring of the refrigeration barrel onto the rear seat, taking note that
the larger diameter side is against the rear wall, and the protruding position should be
aligned with the upper middle as much as possible (as shown in Figure 16).
