Installation and operating instructions Siriux/Siriux-D/Siriux-O 71
English
8.2.1 Using the control button (Fig. 1a, item 1.3)
• Starting with the basic setting, by pressing the button (for the 1st menu: press-
ing it longer than 1 second), the setting menus are selected in succession in a
defined sequence. The corresponding symbol flashes. By turning the button to
the left or right, the parameters can be changed backwards or forwards on the
display. The newly set symbol flashes. The new setting is saved by pressing the
button. Then, the next selection option appears.
• The basic setpoint setting (differential pressure or speed) is changed by turning
the control button. The new value flashes. The new setpoint is saved by press-
ing the button.
• The old value is retained and the basic setting is displayed again if the new set-
ting is not confirmed within 30 seconds.
8.2.2 Switchover of the display
• For the layout of the control module, whether in horizontal or vertical installa-
tion position, the position of the display can be adjusted, turned by 90°. The
position setting can be defined in menu item 3. The display position specified by
the basic setting is indicated by "ON" flashing (for horizontal installation posi-
tion). The display can be changed by turning the adjustment button. "ON"
flashes for the vertical installation position. Press the adjustment button to
confirm the setting.

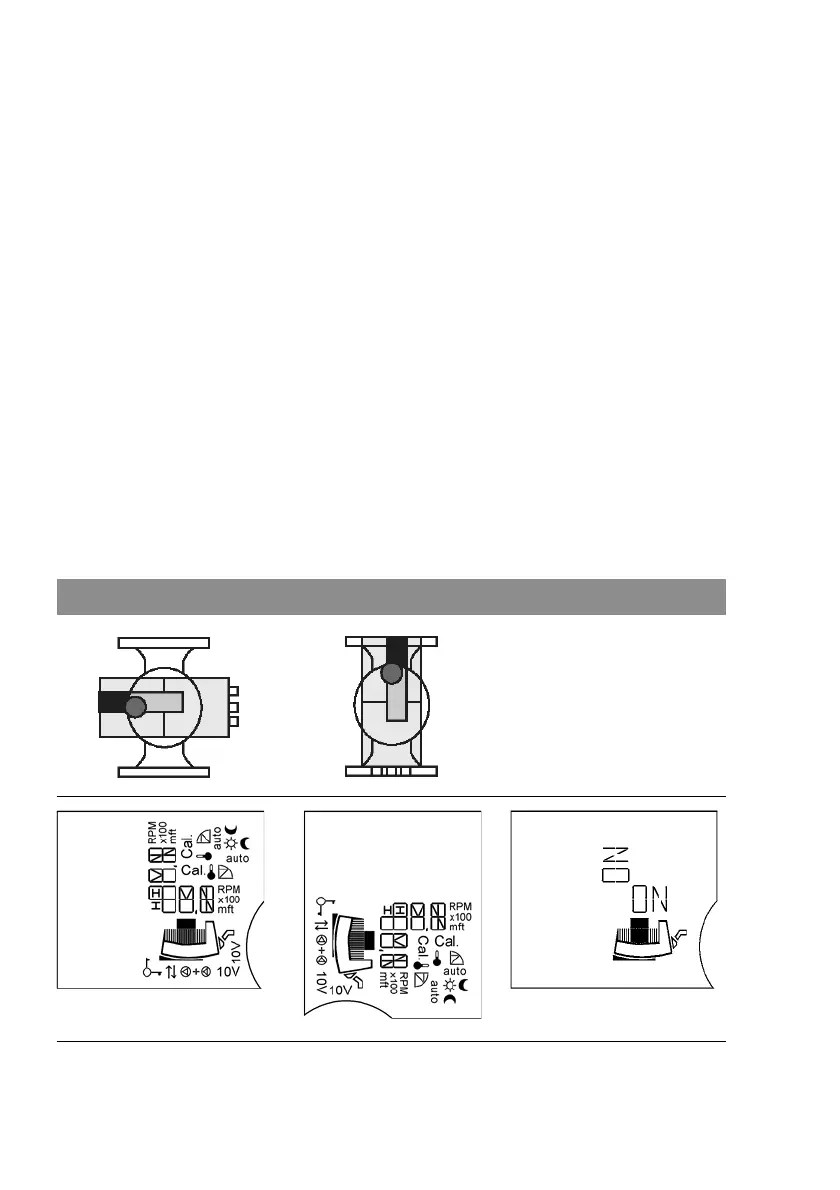

Horizontal Vertical Setting
Position setting
in menu item 3
