6

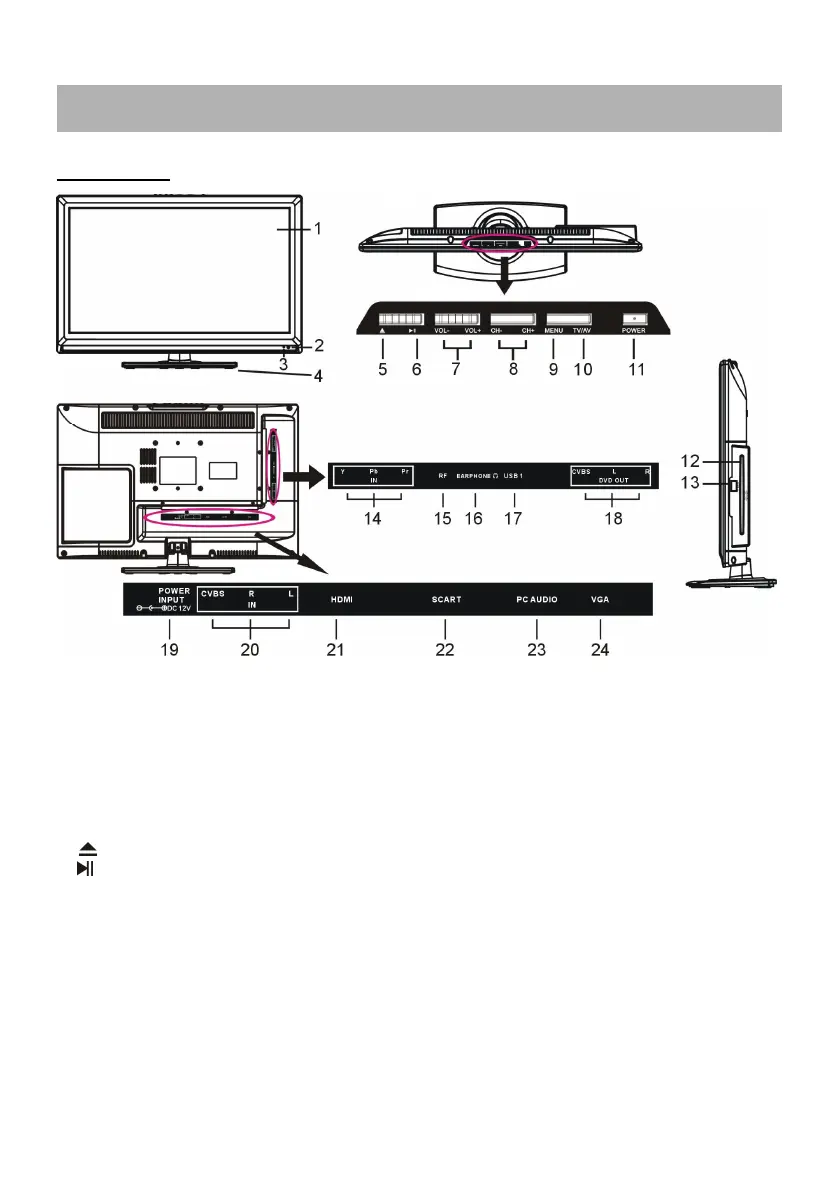

MAIN UNIT
1. TFT display screen
2. Remote control sensor
3. Power indicator- In standby mode the
indicator light will display red color; when
switching on the unit the indicator light will
display blue color.
4. Stand holder
5.
- To enter/eject a disc.
6. - To play or pause playing.
7. VOL +/- button- To increase/decrease the
volume level or move left/right.
8. CH +/- button- To select next/previous
channel or move up/down.
9. MENU button- To enter menu setting page.
10. TV/AV button- To select the input source.
11. POWER button - To switch ON/OFF the TV.
12. Disc slot-To insert a disc according to the
silk screen on the side of this slot.
13. USB2 slot-For multimedia playback in
DVD mode.
14. Y Pb Pr input jack
15. RF input jack- To connect the antenna.
16. EARPHONE output terminal
17. USB1 slot- For software upgrade only in
TV mode.
18. CVBS and AUDIO R/L output terminals-
For DVD mode only.
19. POWER input
20. CVBS and AUDIO R/L input terminals
21. HDMI input terminal
22. SCART input terminal
23. PC AUDIO input terminal
24. VGA input terminal
GENERAL PARTS
